Key Specifications / Features
- Model no.: CGS-20250307-IG-01
- Hits: 0
- Categories: Inverter Generators
Detail Information

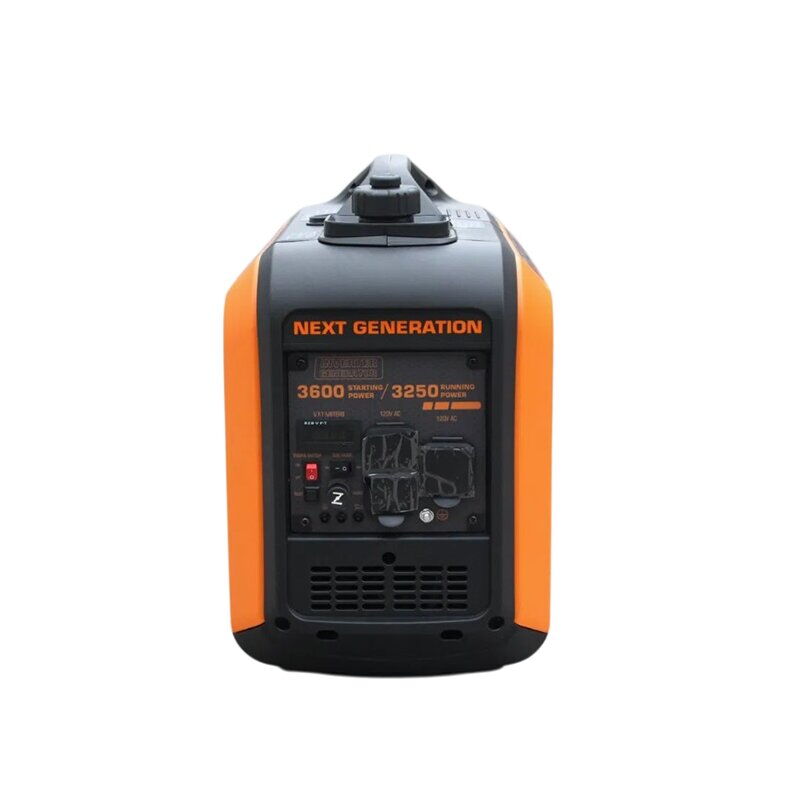

Product Name: Gasoline Inverter Generator
Engine Model: Mitsubishi MT160B
Frequency: 50 Hz
Fuel Type: Gasoline
Phase: Single Phase
Rated Power: 3.3 kW
Max. Power: 3.6 kW
Rated Current: 14.34 A
Rated Voltage: AC 230 V
Displacement: 157.3 cc
Starting System: Recoil/Electric Start
Technical Specifications
|
Phase |
Single Phase |
|
Rated Current |
14.34 A |
|
Rated Voltage |
230 V AC |
|
Frequency |
50 Hz |
|
Rated Power |
3.3 kW |
|
Max. Power |
3.6 kW |
|
Engine Model |
Mitsubishi MT160B |
|
Engine Power |
6 Horsepower (HP) |
|
Bore × Stroke |
66 × 46 mm |
|
Displacement |
157.3 cc |
|
Ignition System |
C.D.I |
|
Oil Capacity |
500 ml |
|
Starting System |
Recoil Start / Electric Start |
|
Speed Range |
3400 - 4400 rpm |
|
Fuel Type |
92# Gasoline |
|
Spark Plug |
A7RTC |
|
Fuel Tank Capacity |
7 L |
|
Continuous Working Time (50% Load) |
6 h |
|
Continuous Working Time (100% Load) |
5 h |
|
Package Size (mm) |
550 × 345 × 516 |
|
Net Weight (kg) |
21.0 kg |
