Key Specifications / Features
- Model no.: CGS-20250319-CGS-01
- Hits: 4
- Categories: Containerized Generator Set
Detail Information

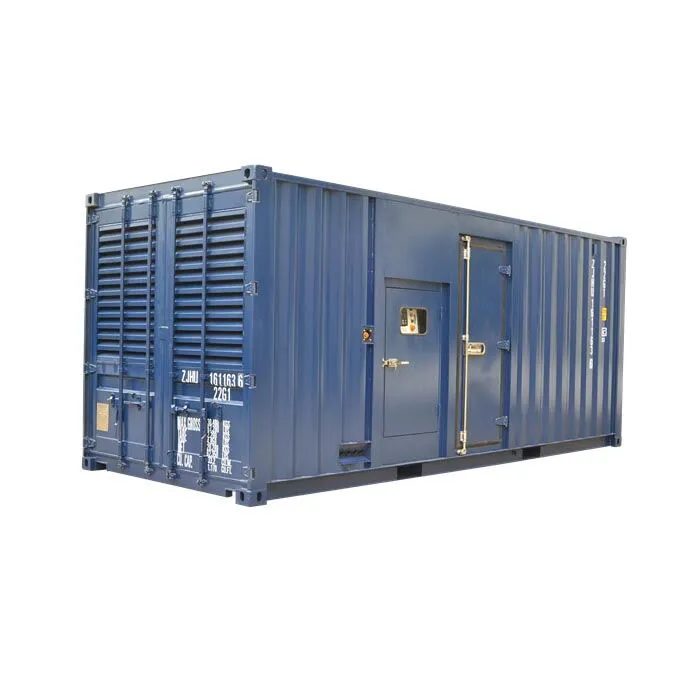

Product Name: 1300kW Cummins Diesel Generator Set, Containerized
Fuel Type: Diesel
Engine: Cummins KTA50-G9
Alternator: Stamford PI734B
Rated Power: 1300kW, 1625kVA
Standby Power: 1430kW, 1788kVA
Frequency: 60Hz
Rated Speed: 1800 rpm
Output Voltage: 220V/127V
Rated Current: 2340 A
Noise Level (7m): 80 dB(A)
Power Factor: COSΦ = 0.8 (Lagging)
Phase/Wires: 3 Phase 4 Wires
Start Mode: Electric
Fuel Consumption (Average): 230 L/h
Protection Features:
- Low Oil Pressure
- High Water Temperature
- Over-Speed
- Over-Current
Engine Specifications
|
Brand |
Cummins |
|
Model |
KTA50-G9 |
|
Cylinders |
16 |
|
Fuel Type |
0# Light Diesel |
|
Intercooling |
Water Inter-Cooling |
|
Compression Ratio |
13.9:1 |
|
Prime/Standby Power |
1384kW / 1657kW |
|
Aspiration |
Turbocharged / Aftercooled |
|
Governor Type |
Electric |
|
Bore × Stroke |
159 × 159 mm |
|
Start Mode |
DC24V Electric Start |
|
Cylinder Layout |
V-Type |
|
Displacement |
50 L |
Alternator Specifications
|
Brand |
Stamford |
|
Model |
PI734B |
|
Protection Class |
IP23 |
|
Frequency Fluctuation |
≤ ±0.5% |
|
Voltage Distortion |
< 4% |
|
Power Output |
1352 kW, 1690kVA |
|
Rated Voltage |
480/277 V |
|
Frequency Regulation |
≤ ±0.5% (Stable) |
|
Voltage Control |
AVR |
Control Panel Specifications
|
Brand |
Deep Sea |
|
Model |
DSE6020 |
|
Functions |
Manual/Automatic Start & Stop |
|
Open Controller Output for Pre-Heat/Idle |
|
|
High Coolant Temperature Protection |
|
|
Low Oil Pressure Protection |
|
|
Overload Protection |
|
|
Generator Over/Under Frequency Protection |
|
|
Generator Over/Under/Unbalanced Voltage Protection |
|
|
Over-Speed Protection |
|
|
AMF (Automatic Mains Failure) |
