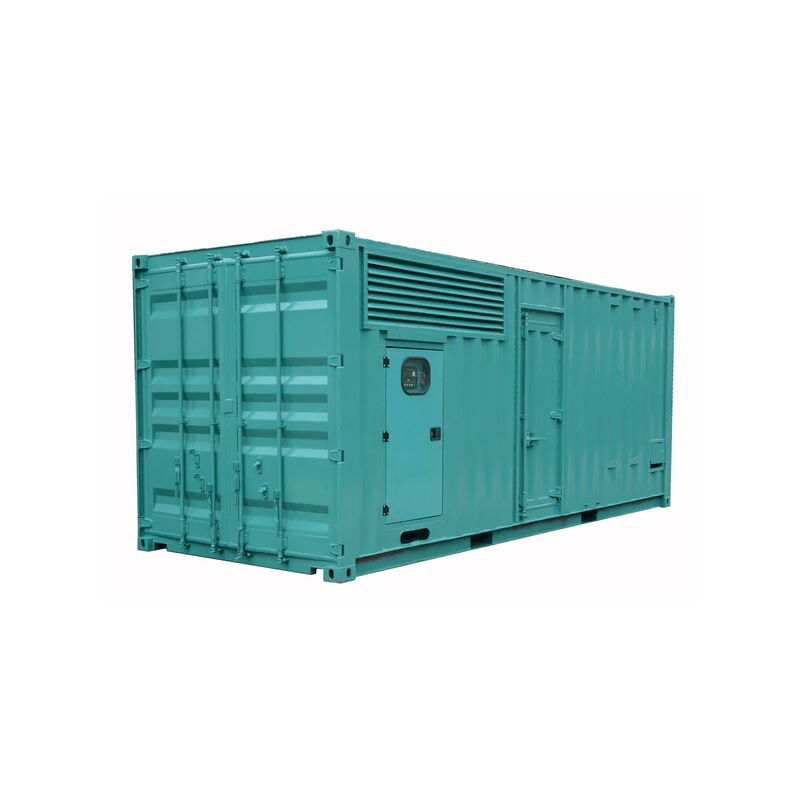

Containerized Diesel Generator Set, KTA50-G3, 1000kW 1250kVA
Key Specifications / Features
- Model No.: CGS-20250307-CGS-01
- Hits: 19
- Categories: Containerized Generator Set
Detail Information
Product Name: Containerized Diesel Generator Set
Fuel Type: Diesel
Engine Model: Cummins KTA50-G3
Alternator: Stamford LVI634G
Cylinder Number: 16 Cylinder V Type
Rated Power: 1000kW, 1250kVA
Standby Power: 1100kW, 1375kVA
Rated Voltage: 400/230V
Rate Current: 1804A
Rated Speed/Frequency: 1500 RPM/50Hz
Output Type: AC Three Phase
Engine Specifications
Engine Model | Cummins KTA50-G3 |
Aspiration | Turbocharged & Aftercooled |
Fuel System | P7100 model fuel pump, EFC |
Cylinders | 16 Cylinders |
Bore and Stroke | 159 x 159 mm |
Compression Ratio | 13.5:1 |
Displacement | 50.3 L |
Rotation Speed | 1500 rpm |
Engine Max. Output Power | 1227 kW |
Governor | Electronic |
Starting Voltage | 24V |
Lubrication Oil Capacity | 135 L |
Alternator Specifications
Alternator Brand | Stamford |
Alternator Model | LVI634G |
Rated Output (kVA) | 1250 |
Frequency (Hz) | 50Hz |
Altitude (M) | ≤1000 |
Insulation | Class H |
Voltage Regulation | AVR Model MX321 |
Protection Grade | IP23 |
Control Panel Specifications
Controller Brand | Deepsea |
Controller Model | DSE7320 |
Breaker Brand | Delixi |
Breaker Capacity | 2000A |
Battery Charger | Supply |
Emergency Stop Button | Supply |
Automatic Mains Fail (AMF) | Supply |
Protection Features | High Temp, Low Oil Pressure, Over/Under Speed, Overload, Start/Stop Fail, Under/Over Voltage, etc. |
Optional Controller | Each model of Deepsea, Smartgen, ComAp brand controllers available |
