Key Specifications / Features
- Model no.: CGS-20250318-IG-01
- Hits: 0
- Categories: Inverter Generators
Detail Information

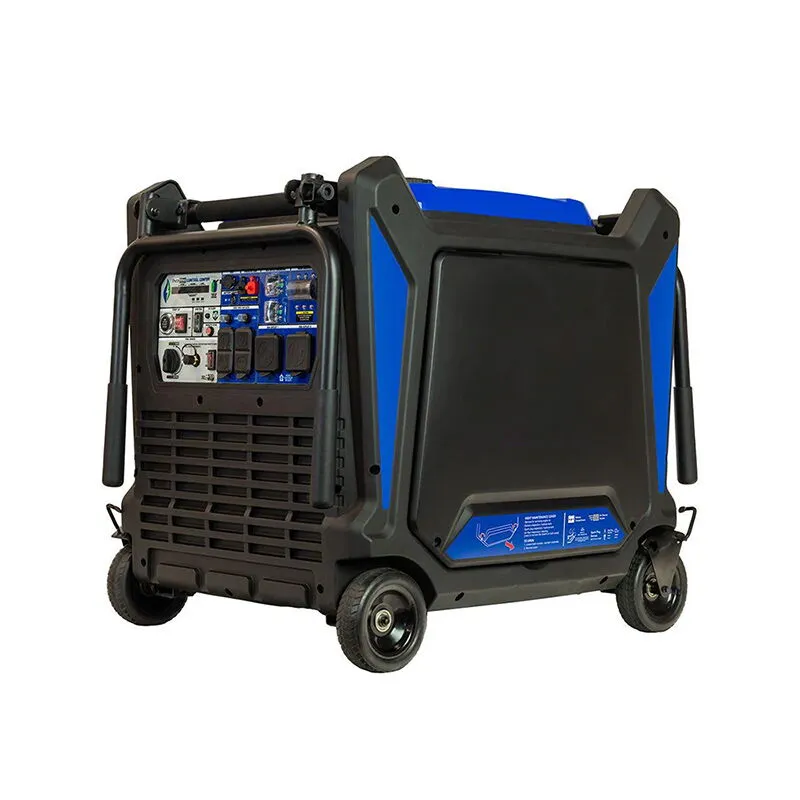

Product Name: 60 Hz Gasoline Inverter Generator, High Performance
Fuel Type: Gasoline
Frequency: 60 Hz
Engine: 4-Stroke OHV
Running Power: 13kW
Peak Power: 16kW
Voltage: 120/240 V
Running Amperage at 120V: 108.33 A
Running Amperage at 240V: 54.17 A
Runtime at 25% Load: 18.2 h
Runtime at 50% Load: 10.5 h
Displacement: 744 cc
Fuel Tank Capacity (Gasoline): 10.5 Gallons
Generator Specifications
|
Voltage |
120/240 V |
|
Frequency |
60 Hz |
|
GFCI Outlets |
Yes |
|
4 Foot Propane Hose & Regulator |
Included |
|
Winding Material |
100% Copper Windings |
|
Automatic Voltage Regulator |
Yes |
|
Battery Type |
12V SLA |
|
Battery Included |
Yes |
|
RV Ready |
Yes |
|
Home Backup Ready |
Yes |
|
Fuel Tank Capacity (Gasoline) |
10.5 Gallons |
|
Fuel Gauge |
Yes |
|
All Metal Construction |
Yes |
|
Volume @ 25% Load (db) |
66.9 dB |
|
UPC |
811640016883 |
|
Warranty |
5 Year |
|
Wheel & Handle Kit |
Included |
|
Wheel Type |
Metal Hub |
|
Wheel Diameter |
7 Inch |
|
Additional Items |
Oil Funnel, Spark Plug Wrench, Tool Set, Remote Control, Battery Tender, Propane Regulator, Owner's Manual |
Engine Specifications
|
Engine Type |
4-Stroke |
|
Valve Type |
OHV (Overhead Valve) |
|
Engine Cooling Type |
Forced Air |
|
Engine Size |
744 cc |
|
Engine Speed |
Variable Speed (Dependent on load) |
|
Starting Type |
Push Button |
|
Electric Start |
Yes |
|
Recoil Start |
No |
|
Idle Control |
Demand Based Variable Idle |
|
Fuel Delivery System |
Carburetor |
|
Fuel Types |
Gasoline |
|
Oil Cooling Type |
Pressure and Splash |
|
Recommended Oil |
10W-30 |
|
Recommended Oil Types |
Blended, Conventional, or Synthetic |
|
Oil Capacity |
50.7 fluid oz |
|
Suggested Propane Tank Size |
60 lbs. minimum |
|
Automatic Low Oil Shutdown |
Yes |
|
Cast Iron Sleeve |
Yes |
|
Bearing Type |
6003 Bearing |
|
CO Sensor Shutdown |
Yes |
|
EPA Certified |
Yes |
|
50 State Emissions |
No |
Panel Specifications
|
GFCI Outlets |
Yes |
|
Battery Switch |
Yes |
|
Battery Tender Port |
Yes |
|
Battery Tender |
Yes |
|
Volt Meter |
Digital |
|
Hour Meter |
Yes |
|
5-20R Outlets |
4 |
|
14-50R Outlets |
2 |
