Key Specifications / Features
- Model no.: CGS-20250311-CGS-01
- Hits: 0
- Categories: Containerized Generator Set
Detail Information

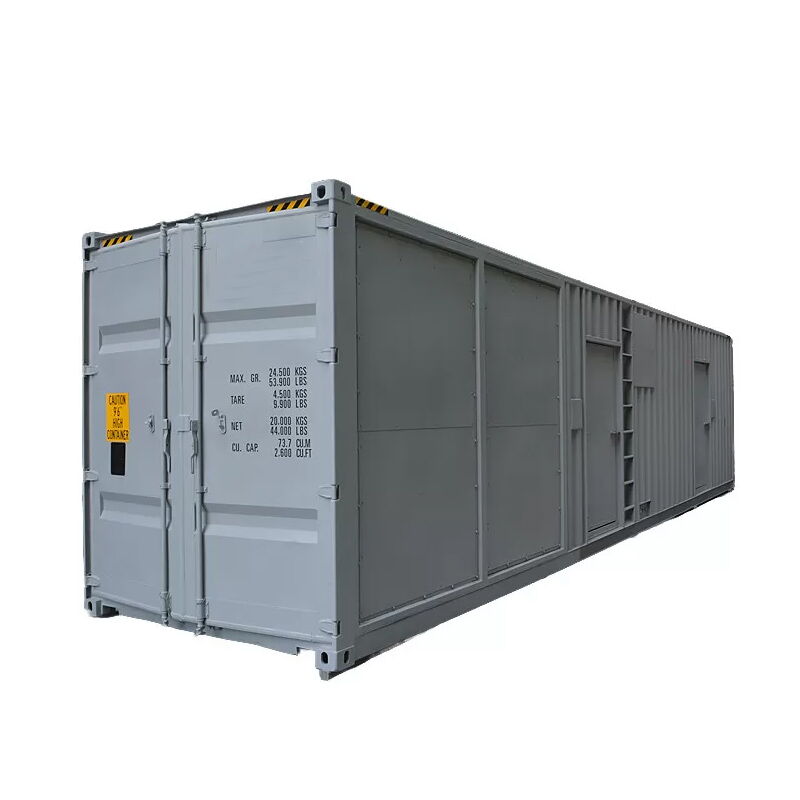

Product Name: 1000kW Containerized Generator Set for Outdoor Activities
Fuel: Diesel
Engine: Cummins KTAA38-G9A
Alternator: Stamford LVI634G
Rated Power: 1000kW, 1250kVA
Standby Power: 1100kW, 1375kVA
Rated Current: 1804 A
Rated Voltage: 400/230 V
Power Factor: 0.8
Frequency: 50 Hz
Phases: 3 Phase, 4 Wire
Battery Capacity: 4 x 150 AH (12V each)
Dimensions (L x W x H): 4800 * 1950 * 2300 mm
Net Weight: 9850 kg
Noise Level: ≤70dB

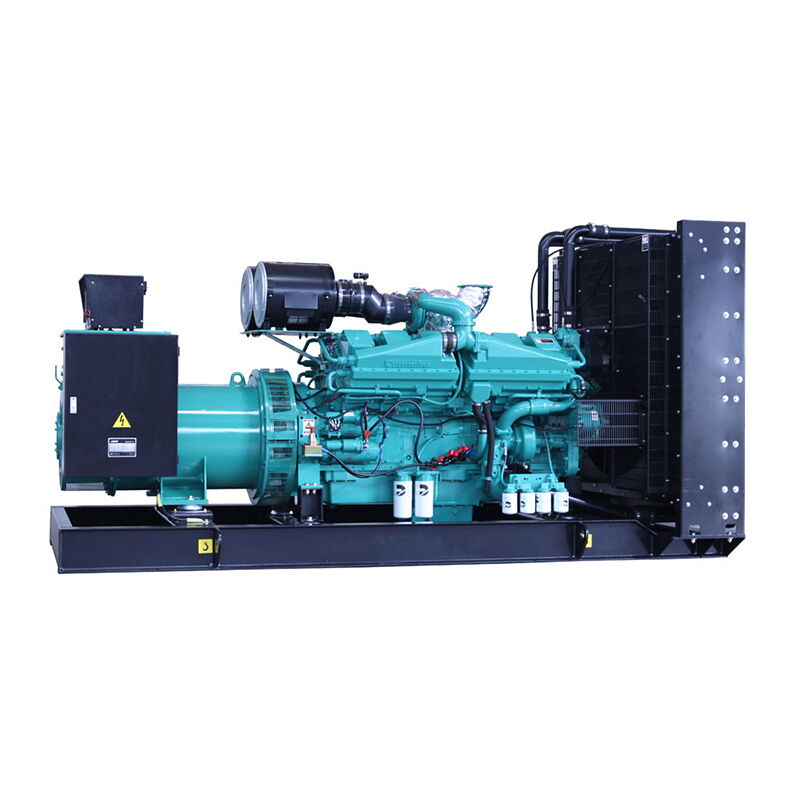

Diesel Engine Specifications
|
Engine Brand |
Cummins (CCEC) |
|
Engine Model |
KTAA38-G9A |
|
Rated Power / Speed: |
1195 kW @ 1500 RPM |
|
Cylinder Configuration |
4 Cycle, 12 cylinders, 60° Vee |
|
Bore x Stroke |
159 x 159 mm |
|
Displacement |
37.8 L |
|
Compression Ratio |
13.0:1 |
|
Governor Type |
Electronic Governor |
|
Aspiration Method: |
Turbocharged & Air – Air Intercooler |
|
Emission Standard: |
Euro II |
|
Packing Size (L * W * H): |
2341 mm * 1360 mm * 1653 mm |
|
Dry Weight: |
3798 kg |
Generator Set Systems
|
System |
Item |
Specification |
|
Exhaust System |
Exhaust Gas Flow (m³/min) |
245 |
|
Max. Exhaust Gas Temperature (°C) |
460 |
|
|
Max. Exhaust Back Pressure (kPa) |
10 |
|
|
Air Intake System |
Aspiration Type |
Turbocharged & Air-Air Cooled |
|
Max. Intake Depression (mbar) |
6 |
|
|
Combustion Air Volume (m³/min) |
91 |
|
|
Fuel System |
Rated Fuel Consumption (L/h) |
233 |
|
75% Load Fuel Consumption (L/h) |
235 |
|
|
Lubrication System |
Total Oil Capacity (L) |
135 |
|
Max. Oil Temperature (°C) |
121 |
|
|
Oil Pressure at Rated RPM (kPa) |
241 - 345 |
|
|
Cooling System |
Total Coolant Capacity (L) |
308 |
|
Max. Coolant Temperature (°C) |
100 |
|
|
Fan Cooling Air Flow (m³/min) |
1380 |
Alternator Specifications
|
Alternator Brand |
Stamford |
|
Alternator Model |
LVI634G |
|
Rated Capacity |
1000kW, 1250kVA |
|
Efficiency |
95.1% |
|
Excitation Type |
Brushless Self-exciter AVR |
|
Voltage Regulation |
±0.5% |
|
Insulation Class |
H |
|
Enclosure Protection |
IP23 |
|
Number of Phases |
3 Phase, 4 Wire |
