Complete Guide to Diesel Generator Wiring

In industrial and commercial fields, diesel generators are indispensable backup power devices. Whether responding to sudden power outages or providing power support in remote areas, diesel generators play a crucial role. However, proper installation and wiring are key to ensuring the safe and efficient operation of a diesel generator. This article will detail the wiring of diesel generators, including power wiring, control line wiring, grounding line wiring, and protection wiring, helping you master the wiring techniques for diesel generators with ease.

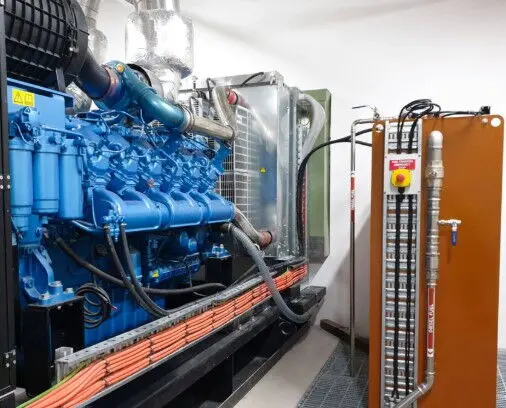

The power wiring of a diesel generator is the core of the entire system, connecting the external power source and load devices to ensure the smooth transmission of electrical energy. Power wiring consists of input and output power parts, together forming the bridge between the generator and external circuits, ensuring stable power supply.

Input power is the "energy entry point" of the diesel generator, connecting the external power source to the generator's input. This process is typically completed via cables. When wiring, the quality of the cables is crucial. High-quality cables not only have good conductivity but also superior insulation properties, effectively preventing current leakage and avoiding electric shock accidents. Additionally, proper grounding is an important step in the input power wiring. Grounding can direct excess current to the ground, further ensuring the safety of operators.

The output power wiring transmits the electrical energy generated by the generator to load devices or the power grid. Similar to input power wiring, output wiring also requires reliable cables and secure grounding. In actual operation, it is necessary to select appropriate cable specifications based on the power and voltage requirements of load devices to ensure the stability and safety of power transmission.

Control line wiring ensures that the diesel generator can operate accurately according to the operator's instructions. Through control lines, the operator can achieve functions such as starting, stopping, monitoring, and fault alarms. Control line wiring includes the starting line, shutdown line, alarm line, sensor signal line, and instrument signal line.

Control line wiring is essential for the normal operation of a diesel generator. Among them, the starting line and shutdown line are the key signal lines for controlling the generator's start and stop functions. The starting line provides a signal from the control system, and when the signal is received, the generator starts according to the command. Similarly, the shutdown line provides a signal to stop the generator. During wiring, these control lines must be correctly and reliably connected to avoid safety issues caused by incorrect operations.

The alarm line transmits signals of abnormal generator conditions, such as overheating or low oil pressure. These signals are usually connected to monitoring devices in the control system, allowing operators to detect and address problems in a timely manner. The sensor signal line is responsible for transmitting operational parameters such as water temperature and oil pressure to the control system. These parameters are crucial for monitoring the generator's operational status, so the signal lines must be correctly connected during wiring.

The instrument signal line transmits the control system's commands to the generator's instruments, such as voltage indicators and frequency indicators. These instruments display the generator's operating status in real-time, helping operators monitor and adjust the system. When wiring, it is equally important to ensure that the instrument signal line is correctly and reliably connected to guarantee the accuracy and reliability of the instruments.

The grounding line is a very important part of the diesel generator wiring, directly relating to the safety of the operator. The purpose of the grounding line is to connect the generator's metal casing to the ground, preventing the current from posing an electric shock hazard to the operator. The grounding line's connection point is typically located on the generator's grounding bolt. When installing the grounding line, ensure good contact with the grounding bolt and that the grounding resistance meets national standards. High grounding resistance may result in poor grounding effects, increasing the risk of electric shock.

Protection wiring is an indispensable part of the diesel generator wiring, providing essential safety protection for both equipment and operators. By installing devices like overload protectors, short-circuit protectors, and leakage protectors, protection wiring can quickly cut off the circuit in abnormal situations, preventing equipment damage and accidents.

Overload protection ensures the safe operation of the diesel generator. It is achieved by installing an overload protector in the circuit. When the current exceeds the rated value, the overload protector automatically disconnects the circuit to protect the equipment. The selection of the overload protector should be based on the generator's rated current and actual usage to ensure the circuit is cut off in time during overload to prevent equipment damage.

Short-circuit protection is achieved by installing a short-circuit protector. When a short circuit occurs, the short-circuit protector quickly disconnects the circuit to prevent further damage. The response time of the short-circuit protector is very fast, able to disconnect the circuit in a short time and reduce the hazards caused by the short circuit. During wiring, ensure the correct installation and connection of the short-circuit protector so that it can function effectively in the event of a short circuit.

Leakage protection is achieved by installing a leakage protector. When a leakage occurs, the leakage protector quickly disconnects the circuit to protect personal safety. The leakage protector is highly sensitive and can disconnect the circuit even with a small leakage current to prevent electric shock accidents. When wiring, choose an appropriate leakage protector based on the actual situation and ensure it is correctly connected.

Before wiring a diesel generator, adequate preparation is essential to ensure the safety and smoothness of the wiring process. First, confirm that all load switches are off to prevent short circuits due to grounding of the neutral point on the low-voltage side. Next, check if the diesel generator's battery is charged. If the battery is low, charge it to ensure the generator can start normally. Additionally, confirm that the backup switch in the user's distribution system is off and verify that switches connected to the plant are temporarily disconnected. These preparatory steps, while seemingly tedious, are critical for ensuring safe wiring.

The wiring of a diesel generator is a crucial step to ensure safe operation and efficient power supply. Below are detailed wiring steps for reference.

The diesel generator's cables are connected to the copper busbars at the end of the low-voltage distribution cabinet switch or dual power conversion cabinet switch. Before connecting the cables, confirm that the backup switch is off to prevent accidental electric shock. At the same time, ensure that the generator's output switch is off to avoid safety hazards due to incorrect phase sequence during sudden charging.

After starting the diesel generator, confirm that the output switch is off. Then adjust the generator's voltage. The low voltage is typically 400V, while the high voltage is around 6600V to 10.5KV. After completing the voltage adjustment, turn on the output switch.

Measure the phase sequence of the generator cables U, V, W and the busbars A, B, C. If the phase sequence is incorrect, adjust by switching two phases in the generator's output wiring. When using a phase sequence meter, be mindful of the display: R forward rotation indicates positive phase sequence, while L reverse rotation indicates negative phase sequence. Phase sequence measurement must be conducted in a live state, so extra caution is needed during operation.

After confirming the correct phase sequence, close the backup switch. Begin supplying power by first sending power to small devices and checking for electrical presence. At this stage, someone should monitor the distribution room, and if any issues arise, the central control room should immediately disconnect the corresponding circuit breaker. Once small devices are powered correctly, power all electrical equipment.

Grounding protection is commonly used in low-voltage systems with ungrounded neutral points. It ensures that if the generator's insulation structure fails and the casing becomes live, grounding will prevent electric shock, as a human body touching the casing would be similar to a single-phase electric shock. The grounding line connection point is usually located at the end of the generator's chassis. When installing the grounding line, ensure it is connected to an appropriate grounding position.

Protective neutral grounding is used in low-voltage systems with a grounded neutral point. It works by forming a single-phase short circuit when the motor's insulation fails and the casing becomes live. This allows current to quickly blow the fuse in that phase, making the casing safe. When performing protective neutral grounding, accurately distinguish whether the wiring terminals or leads are phase lines or neutral lines.

Wiring a diesel generator is both an important and complex task. Proper wiring not only ensures the safe operation of the generator but also improves its efficiency and reliability. Through the detailed introduction in this article, you should now have a comprehensive understanding of the power wiring, control line wiring, grounding line wiring, and protection wiring for diesel generators. Always follow the standards during wiring and ensure thorough preparation to guarantee a safe and smooth wiring process. Only by doing so can the diesel generator play its essential role in providing reliable power support for your production and daily life.
