In the complex mechanical system of a diesel generator set, although the fuel filter is only a small component, it plays a crucial role. The fuel filter, as a key part of the engine fuel system, its importance goes without saying. It can not only effectively filter impurities in the fuel to prevent clogging of the fuel system, but also reduce mechanical wear, improve the reliability and efficiency of the engine. Today, let us take a deeper look into the mystery of the fuel filter and explore how this small component plays a huge role in the complex mechanical system.
The main function of the fuel filter is to filter impurities in the fuel. During the process of fuel transportation and storage, it is inevitable that some impurities, such as iron oxide and dust particles, will mix in. If these impurities enter the engine’s fuel system, they may cause serious consequences. For example, the injector is a very precise component, and once it is clogged by impurities, it will lead to poor fuel injection, affect engine performance, and may even damage the engine. The fuel filter acts like a “filter net,” intercepting these impurities and preventing them from entering the fuel system, thereby reducing mechanical wear, ensuring stable operation of the engine, and improving the reliability and service life of the engine.
The structure of the fuel filter is relatively simple, but the design is very ingenious. It mainly consists of an aluminum shell, a stainless steel bracket, and high-efficiency filter paper pieces. The aluminum shell not only protects the internal components but also effectively dissipates heat to prevent excessive fuel temperature. The stainless steel bracket provides support for the filter paper pieces to ensure that the filter paper does not deform during the filtration process. The filter paper pieces are the core component of the fuel filter. They adopt a special chrysanthemum-shaped design. This design increases the flow area, improves filtration efficiency, and at the same time ensures smooth fuel flow without causing excessive pressure loss due to filtration.
Fuel filters come in many types, each with unique characteristics and applicable scenarios.
The paper-element fuel filter is one of the most common types. Its filter element is made of paper material, which has high filtration efficiency and dust-holding capacity. This type of filter is suitable for general imported models and is usually fixed to the fuel pump or inside the fuel tank with a sealing ring. The advantage of paper elements is lower cost and good filtration effect, but the disadvantage is relatively short service life—once the filter element is clogged, it must be replaced promptly.
The metal-element fuel filter uses a metal mesh as the filter element. This type of filter is highly durable and washable, suitable for large generator sets. Its advantages are long service life and reusability after multiple cleanings, but its filtration precision is relatively lower and cannot filter fine impurities as effectively as paper elements. This type of filter is usually installed at the fuel pump outlet or at the inlet of the fuel supply system to ensure clean fuel enters the engine.
The separable fuel filter uses an independent filter element and filter housing, and the filter element is replaceable. This design makes maintenance more convenient, allowing users to replace the filter element as needed without replacing the whole filter. Separable filters have higher filtration efficiency and longer service life, suitable for high-performance engines and diesel generator sets operating under special conditions. Their filter elements are usually made of high-efficiency filtration materials, able to filter finer impurities and ensure engine operation even under harsh conditions.
The replaceable-element fuel filter fixes the filter element between the filter seat and the bottom cover. This type may contain two filter elements to improve filtration. When replacing, the exterior of the filter assembly must first be cleaned, then the old element removed and the new one installed according to procedure. Attention must be paid to the cleaning and lubrication of sealing parts to ensure proper operation. After installation, air must be bled from the filter to ensure normal operation of the fuel system.
This type of filter allows quick replacement of the canister. It may include two canisters, and some engines are equipped with coarse filters of the same type. When replacing, the exterior of the filter assembly must first be cleaned, then the drain device of the canister or sediment cup loosened to discharge water or fuel. Next, the old canister is removed and discarded, the filter seat and sediment cup cleaned, damaged seals replaced, and the new canister installed and secured. This design greatly

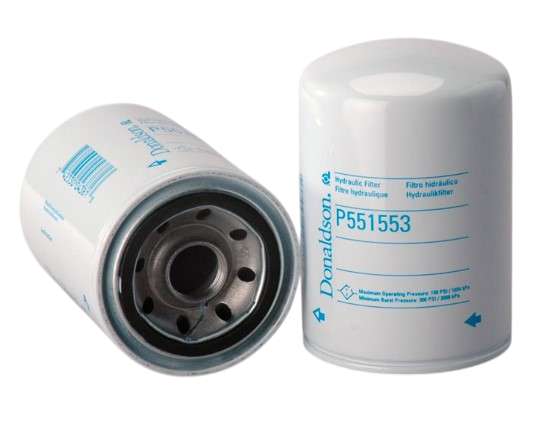

The spin-on fuel filter has internal threads at the top of the filter element, which fix the canister to the threaded joint of the filter seat. When replacing, the exterior of the filter assembly must first be cleaned, then the drain device at the bottom loosened to discharge water or fuel. A strap wrench or similar tool is used to loosen the canister, the old one is removed, and the filter seat cleaned. When installing the new canister, attention must be paid to lubricating the seals to ensure firm installation. This design makes canister replacement more convenient while also ensuring the sealing of the fuel system.
The fuel filter of a diesel generator set mainly consists of the filter element, housing, and filter seat. It is also equipped with an overflow valve: when the fuel pressure exceeds a certain value, excess fuel returns to the fuel tank through the return joint to protect the fuel system. The connection of the low-pressure fuel pipeline to the filter must follow the arrow direction and cannot be connected incorrectly. The sealing gasket at the bottom of the filter element is installed in the spring seat, and the spring presses the gasket against the bottom surface of the nut to provide sealing. The filter seat and housing are connected by tie rods and sealed with rubber rings to prevent fuel leakage. At the top of the filter seat, there is a vent plug, which users can loosen during operation to release air from inside the fuel filter. This design makes the fuel filter safer and more reliable in use.
Maintenance and replacement of the fuel filter are important steps to ensure normal engine operation. For diesel generator sets, the fuel filter must be replaced after the break-in period (50 hours) and then every 500 hours or every six months. When replacing, the generator must first be set to “STOP.” Towels or cotton waste should be placed under the filter to absorb fuel. A strap wrench or chain wrench is then used to turn the filter clockwise and remove it. When installing a new filter, it must first be filled with diesel of the same type used by the generator. The new filter is then slowly screwed in by hand counterclockwise until it cannot be turned further by hand, then tightened another 1/4 to 1/2 turn with a strap wrench or chain wrench. Next, the vent screw is opened, and the priming handle is repeatedly pressed until no bubbles appear in the fuel flowing from the vent hole. Finally, spilled diesel on the generator is cleaned, and the generator’s working state is checked.
In daily use, if fuel supply is found to be unsmooth, it may be due to a clogged filter element. At this time, the engine should be stopped, the fuel drained, and the tie rod nut loosened on the diesel engine to remove the housing and take out the filter element. The element can then be immersed in gasoline or diesel and gently brushed clean. If the element is ruptured or difficult to clean, it must be replaced with a new one, reinstalled according to requirements, and filled with clean fuel.
When selecting a fuel filter, the following points should be noted.
Compatibility: Different engine models have different requirements for fuel filters. Selection must ensure compatibility with the engine model. If mismatched, the fuel system may fail to work properly or even damage the engine.
Filtration Precision: Filtration precision is one of the key indicators of a fuel filter. Generally, the higher the precision, the better the filtration effect, but also the higher the cost. Selection should be based on the engine’s actual needs.
Durability: The durability of the filter is also very important. High-quality filters are usually made of durable materials that can withstand higher pressure and temperature, with longer service life. Durability can be judged by examining materials and manufacturing process.
Brand and Quality: Choosing well-known brands is usually more reliable. These brands have strict quality control in production, ensuring higher product reliability. At the same time, product quality certifications (such as ISO certification) should be checked to ensure compliance with standards.
Although the fuel filter is only a small component, it plays an indispensable role in engine operation. It can effectively filter impurities in fuel, reduce mechanical wear, ensure stable engine operation, and improve the reliability and service life of the engine. Understanding the structure, types, maintenance, and selection points of the fuel filter can help us better use and maintain engines, ensuring normal operation under various working conditions. Therefore, we must pay attention to the role of the fuel filter, choose the right filter, and carry out regular maintenance and replacement to keep the engine in good working condition at all times.
