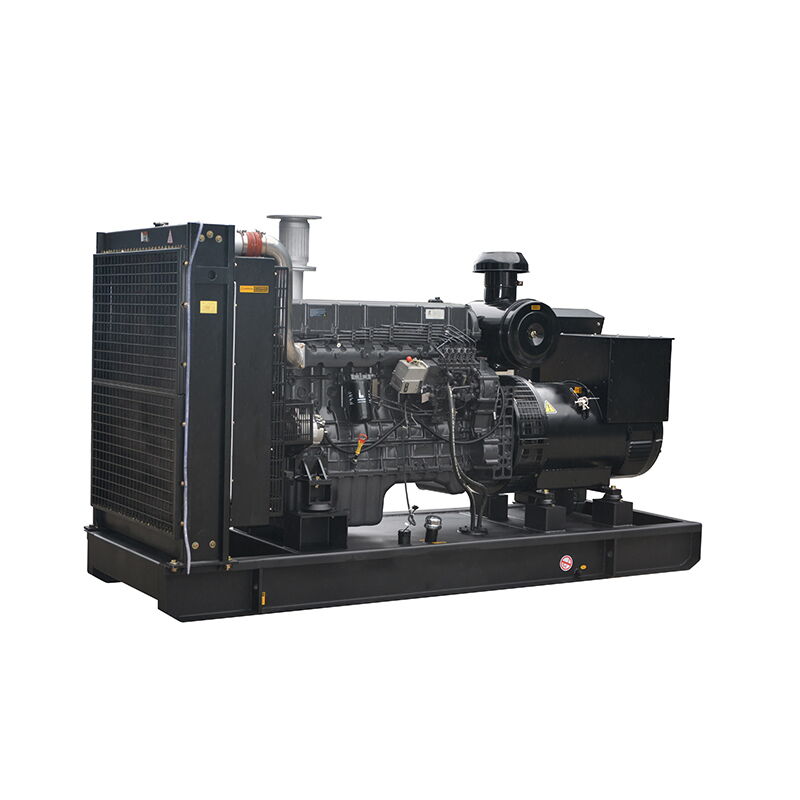

144kW Diesel Generator Set, SDEC SC7H250D2, 50 Hz, Open-type
Key Specifications / Features
- Model No.: CGS-20250328-DGS-03
- Hits: 54
- Categories: Diesel Generator Sets
Detail Information
Product Name: 144kW 180kVA SDEC Diesel Generator Set, Open-type
Fuel Type: Diesel
Engine: SDEC SC7H250D2
Alternator: Brushless Alternator (Stamford, Leroy Somer, Marathon, Mecc Alte)
Prime Power: 144kW, 180kVA
Standby Power: 158kW, 198kVA
Frequency: 50 Hz
Output Voltage: 400/230 V
Rated Current: 289 A
Oil Consumption: 0.052 L/h
Dimension: 2258 * 980 * 1450 mm
Weight: 1470 kg
Engine Specifications
Engine Manufacturer | Shanghai Diesel Engine Co., Ltd. |
Engine Brand | Shangchai (SDEC) |
Engine Model | SC7H250D2 |
No. of Cylinders | 6 Cylinder Inline |
Bore | 105 mm |
Stroke | 124 mm |
Displacement | 6.5 L |
Aspiration | Turbocharged and Air to Air Aftercooled |
Rated Speed | 1500 RPM |
Governor | Electric |
Lubrication Oil Capacity | 20 L |
Starting Voltage | 24 V |
Max. Output Power | 185kW |
Alternator Specifications
Rated Output | 187kVA |
Frequency | 50 Hz |
Altitude | ≤1000 m |
Insulation | Class H |
Protection Grade | IP23 |
Alternator Options | Stamford, Leroy Somer, Marathon, Mecc Alte, Chinese Brand Brushless Alternators |
Control Panel Specifications
Controller Brand | Deep Sea Electronics (Deepsea) |
Controller Model | DSE7320 |
Breaker Brand | Delixi |
Breaker Capacity | 400 A |
Battery Charger | Smartgen Model BAC06A |
Emergency Stop Button | Supplied |
Automatic Mains Fail (AMF) | Supplied |
Fuel Level Monitoring | Supplied |
Automatic Transfer Switch (ATS) | Optional |
Optional Controllers | Smartgen, ComAp |
Protections | Start-up fault (generator shutdown) High coolant temperature (alarm & shutdown) Low oil pressure (alarm & shutdown) Low fuel level (alarm) Low cooling fluid level (optional alarm) Overload (alarm & shutdown) Battery voltage high (alarm) |
