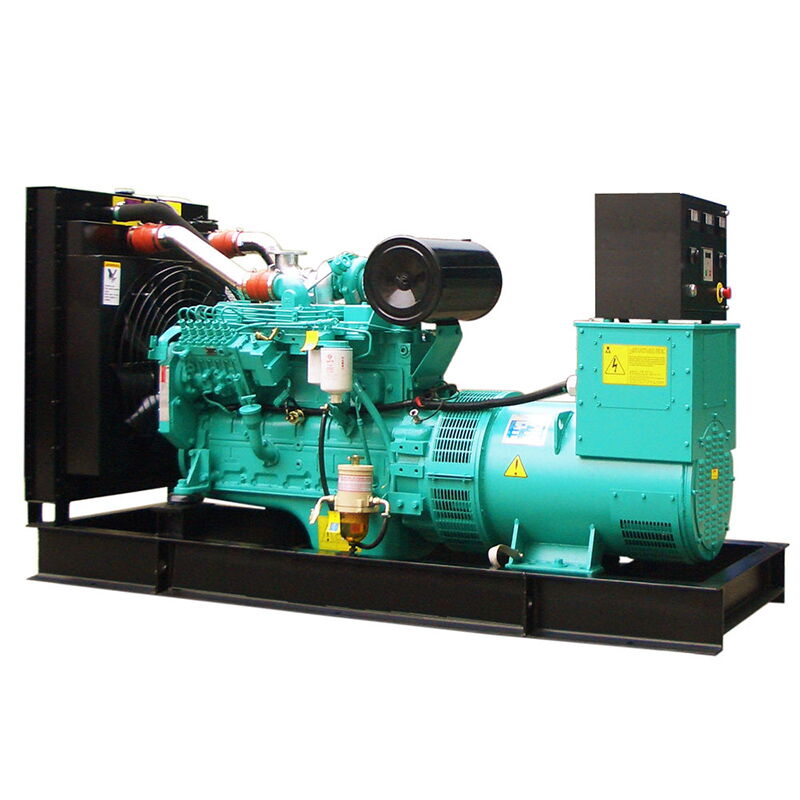

80kW 100kVA Diesel Genset, Cummins 6BT5.9-G2, 6 Cylinders
Key Specifications / Features
- Model No.: CGS-20250307-DGS-02
- Hits: 12
- Categories: Diesel Generator Sets
Detail Information
Product Name: 80kW 100kVA Diesel Generator Set, Cummins 6BT5.9-G2
Rated Power: 80kW, 100kVA
Standby Power: 88kW, 110kVA
Engine: Cummins 6BT5.9-G2
Fuel Type: Diesel
Cylinder Number: 6 Cylinders
Alternator: Stamford UCI274C
Rated Frequency: 50 Hz
Rated Speed: 1500 RPM
Output Voltage: 230/400V
Rated Current: 144A
Noise Level: 70-75 dB (Silent Type), 90-110 dB (Open Type)
Power Factor: 0.8 (lagging)
Phase/Wires: 3 Phase, 4 Wires
Start Mode: Electric Start
Fuel Consumption: 210 g/kWh at 100% load
Protection: Low oil pressure, High water temperature, Over-speed, Over-current
Gross Weight: 1200 kg
Dimensions: 2250*800*1350 mm (L x W x H)
Engine Specifications
Brand | Cummins |
Model | 6BT5.9-G2 |
Cylinder Number | 6 Cylinders |
Fuel | 0# light diesel |
Cooling | Low Temperature After cooling |
Overload | 110% |
Engine Power | 92 kW, 115 kVA |
Start mode | DC24V electric start |
Cylinders Layout | In Line |
Displacement | 5.9 L |
Speed-Governing | Electric |
Steady Speed Droop | ≤1% |
Alternator Specifications
Brand | Stamford |
Model | UCI274C |
Protection | IP23 |
Frequency fluctuation | ≤ ±0.5 % |
Voltage fluctuation | ≤ ±0.5 % |
Power | 80kW, 100kVA |
Rated voltage | 230/400 V |
Frequency regulation | ≤ ±0.5 %( stable) |
Voltage control | AVR |
