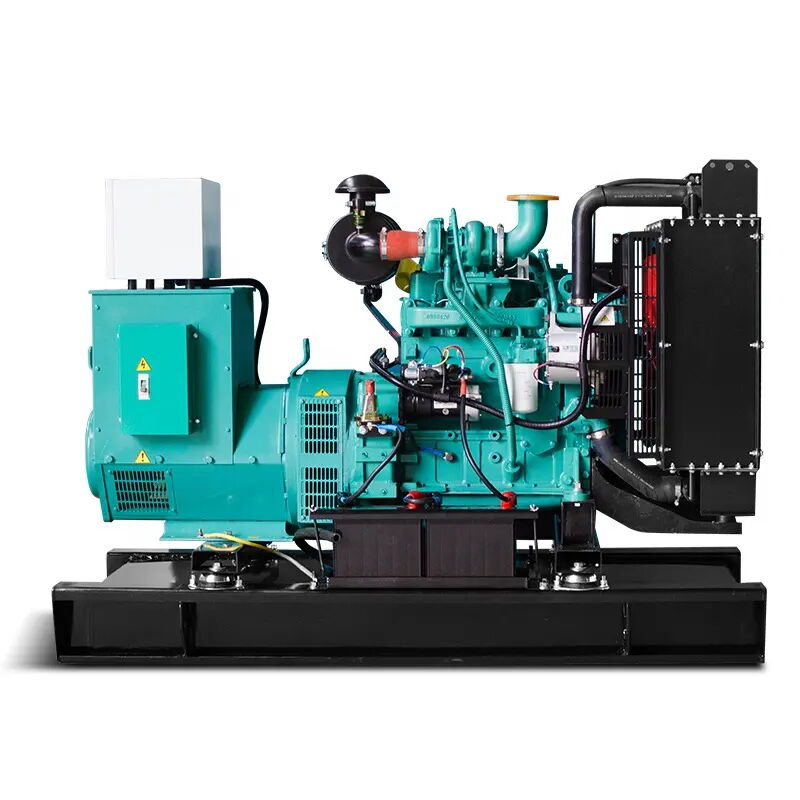

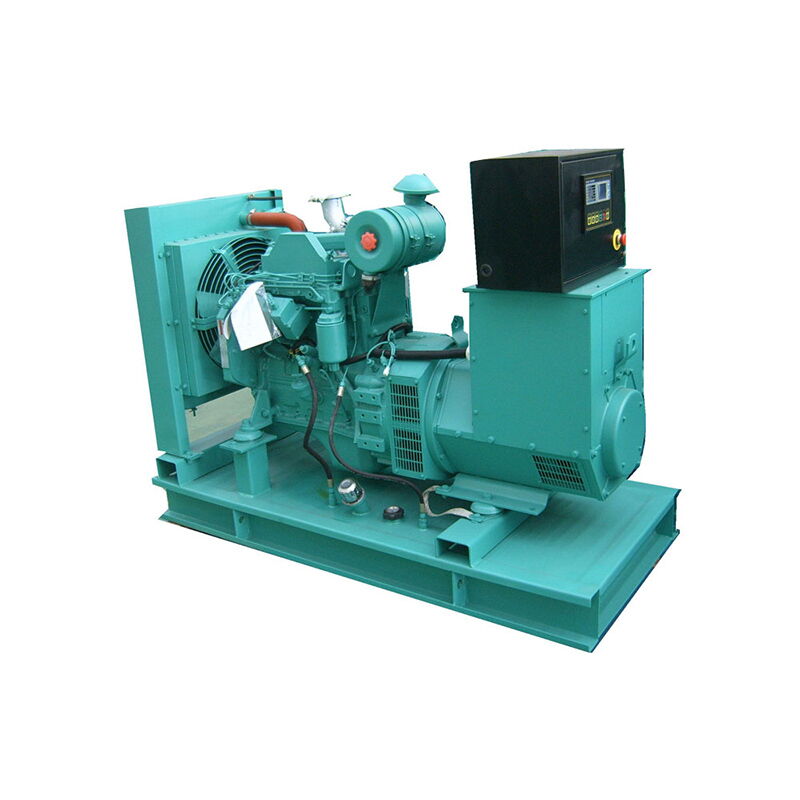

40kW 50kVA Diesel Generator Set, Cummins 4BTA3.9-G2, 50 Hz
Key Specifications / Features
- Model No.: CGS-20250307-DGS-01
- Hits: 10
- Categories: Diesel Generator Sets
Detail Information
Product Name: 40kW 50kVA Diesel Generator Set, Cummins 4BTA3.9-G2
Rated Power: 40kW, 50kVA
Standby Power: 44kW, 55kVA
Fuel Type: Diesel
Engine: Cummins 4BTA3.9-G2
Cylinder Number: 4 Cylinders
Alternator: Stamford UCI224D
Rated Frequency: 50 Hz
Rated Speed: 1500 RPM
Output Voltage: 230/400V
Rated Current: 72A
Noise Level: 70-75 dB (Silent Type), 90-110 dB (Open Type)
Power Factor: 0.8 (lagging)
Phase/Wires: 3 Phase, 4 Wires
Start Mode: Electric Start
Fuel Consumption: 210 g/kWh at 100% load
Protections: Low oil pressure, High water temperature, Over-speed, Over-current
Gross Weight: 950 kg
Dimensions: 1800*750*1200 mm (L x W x H)
Engine Specifications
Brand | Cummins |
Model | 4BTA3.9-G2 |
Cylinder Number | 4 Cylinders |
Cylinders Layout | In-line |
Fuel Type | 0# Light Diesel |
Cooling Method | Low Temperature Aftercooling |
Overload Capability | 110% |
Engine Power | 50 kW, 62.5 kVA |
Start Mode | DC 24V Electric Start |
Cylinders Layout | In-line |
Displacement | 3.9 L |
Speed Governing | Electric |
Steady Speed Droop | ≤1% |
Alternator Specifications
Brand | Stamford |
Model | UCI224D |
Protection | IP23 |
Frequency Fluctuation | ≤ ±0.5% |
Voltage Fluctuation | ≤ ±0.5% |
Power | 40 kW, 50 KVA |
Rated Voltage | 230/400V |
Frequency Regulation | ≤ ±0.5% (stable) |
Voltage Control | AVR |
