Key Specifications / Features
- Model no.: CGS-20250310-SGS-01
- Hits: 0
- Categories: Silent Generator Set
Detail Information

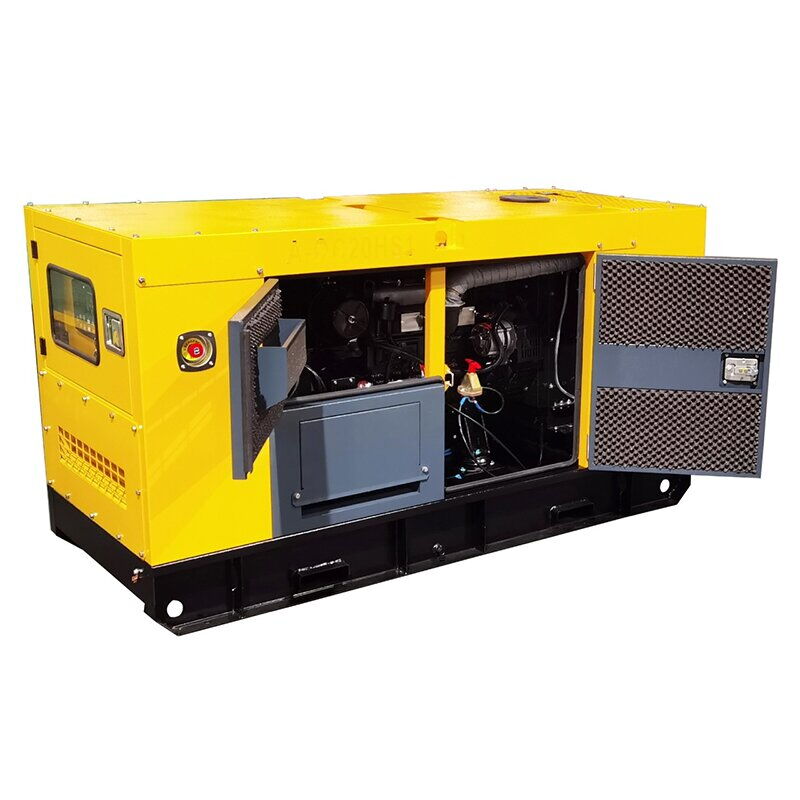

Product Item: Soundproof/Silent Diesel Generator Set
Fuel Type: Diesel
Engine: Quanchai QC490D
Rated Power: 14kW, 18kVA
Max. Power: 16kW, 20kVA
Power Factor: 0.8
Frequency: 50 Hz
Rated Voltage: 400/230 V
Rated Current: 25.3 A
Noise Level: 70 dBA at 7 Meters
Fuel Tank Capacity: 75 Liters
Battery: One free maintenance battery
Dimension: 1850 x 850 x 1100 mm
Weight: 860 kg
Optional Alternators: Leroy Somer, Marathon, Stamford, Mecc Alte Brushless Alternator
Controller: Smartgen HGM6120N
Engine Specification
|
Engine Brand |
Quanchai |
|
Engine Model |
QC490D |
|
No. of Cylinders |
4 Cylinder in line |
|
Aspiration |
Naturally Aspirated |
|
Governor |
Mechanical |
|
Engine Max. Output Power |
22 kW |
|
Displacement |
2.672 L |
|
Starting Voltage |
12 V |
|
Bore |
90 mm |
|
Stroke |
105 mm |
|
Lubrication Oil Capacity |
6.8 L |
|
Compression Ratio |
18:1 |
|
Intake Air Flow |
2 m³/min |
|
Fuel Consumption at 100% Load |
6.6 L/h |
Alternator Specification
|
Rated Output |
17kVA |
|
Frequency |
50 Hz |
|
Altitude |
≤ 1000 m |
|
Insulation Class |
H |
|
Voltage Regulation |
SX460 |
|
Protection Grade |
IP23 |
|
Working Temperature without Output Decrease |
≤ 40℃ |
|
Phase |
3 Phase |
|
Temperature Rise |
125°C |
|
Optional Alternators |
Leroy Somer, Marathon, Mecc Alte, Brushless |
Control Panel Specification
|
Controller Brand |
Smartgen |
|
Controller Model |
HGM6120N |
|
Breaker Brand |
Delixi |
|
Breaker Capacity (A) |
125 A |
|
Battery Charger |
Smartgen Model BAC06A |
|
Emergency Stop Button |
Supply |
|
Automatic Mains Fail (AMF) |
Supply |
|
Fuel Level |
Supply |
|
Automatic Transfer Switch |
ATS (optional) |
|
Mains Monitor |
Supply with AMF function |
|
Protection Features |
Includes alarms and shutdown for: Start-up fault High coolant temperature Low oil pressure Low fuel level Low coolant fluid level (optional) Overload Battery voltage high |
|
Optional Controllers |
Deepsea, Smartgen, ComAp controllers |
