Key Specifications / Features
- Model no.: CGS-20250308-SGS-02
- Hits: 1
- Categories: Silent Generator Set
Detail Information

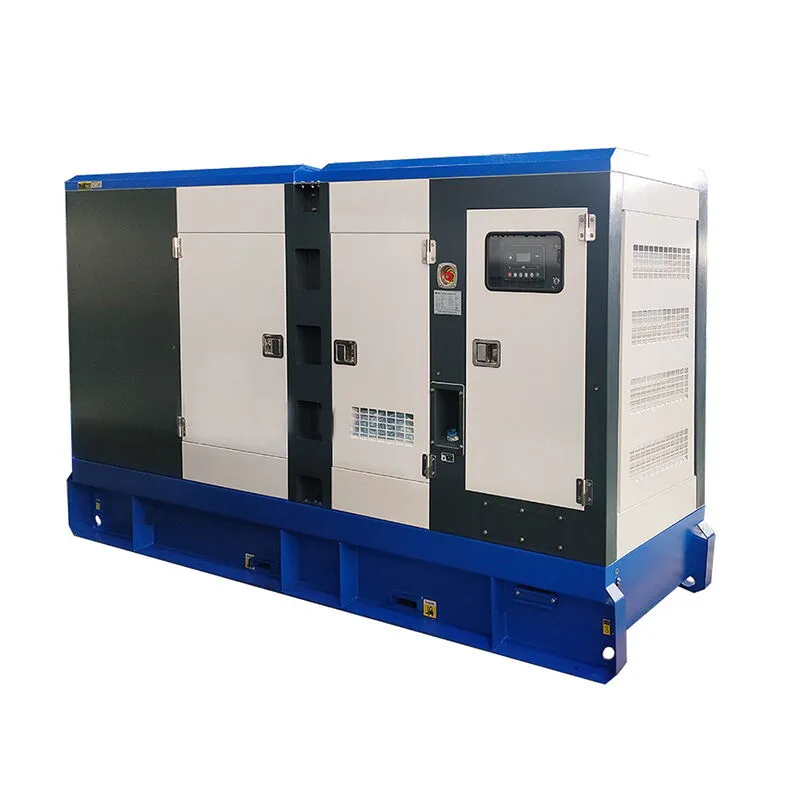

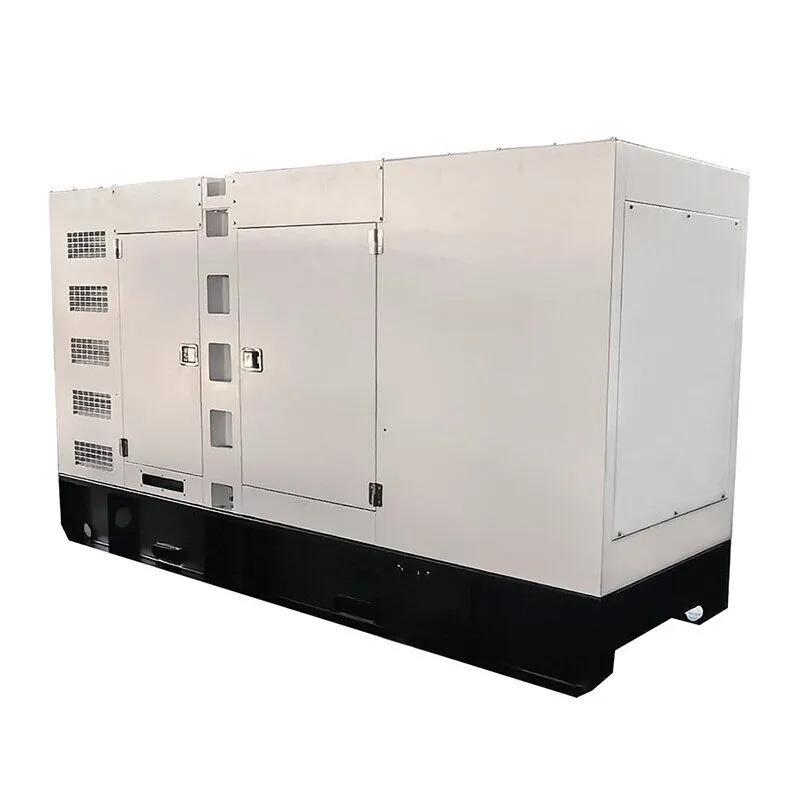

Product Item: Soundproof Diesel Genset, Silent Diesel Generator Set
Fuel Type: Diesel
Phase: 3-phase
Engine: Cummins 6LTAA8.9-G3
Rated Power: 240kW, 300kVA
Maximum Power: 264kW, 330kVA
Power Factor: 0.8
Frequency: 60 Hz
Speed: 1800 RPM
Rated Voltage: 220/127 V
Rated Current: 787.3 A
Noise Level: 70 dBA at 7 Meters
Dimension: 3900 * 1300 * 1900 mm
Weight: 2500 kg
Optional Alternators: Leroy Somer, Marathon, Stamford, Mecc Alte Brushless Alternator
Controller: Smartgen HGM6120N
Engine Specification
|
Engine Brand |
Cummins |
|
Engine Model |
6LTAA8.9-G3 |
|
Number of Cylinders |
6 Cylinders (Inline) |
|
Aspiration |
Turbocharged and Air-to-Air Aftercooled |
|
Governor Type |
Electric |
|
Maximum Engine Output Power |
258.5 kW |
|
Displacement |
8.9 L |
|
Starting Voltage |
24 V |
|
Bore |
125 mm |
|
Stroke |
136 mm |
|
Lubrication Oil Capacity |
36 L |
Alternator Specification
|
Rated Output |
300 kVA |
|
Frequency |
60 Hz |
|
Altitude |
≤1000 m |
|
Insulation Class |
H |
|
Voltage Regulation |
AVR Model SX460 |
|
Protection Grade |
IP23 |
|
Optional Alternators |
Leroy Somer, Marathon, Mecc Alte Brushless Alternator |
Control Panel Specification
|
Controller Brand |
Smartgen |
|
Controller Model |
HGM6120N |
|
Breaker Brand |
Delixi |
|
Breaker Capacity |
80 A |
|
Battery Charger |
Supplied |
|
Emergency Stop Button |
Supplied |
