Key Specifications / Features
- Model no.: CGS-20250308-SGS-01
- Hits: 4
- Categories: Silent Generator Set
Detail Information

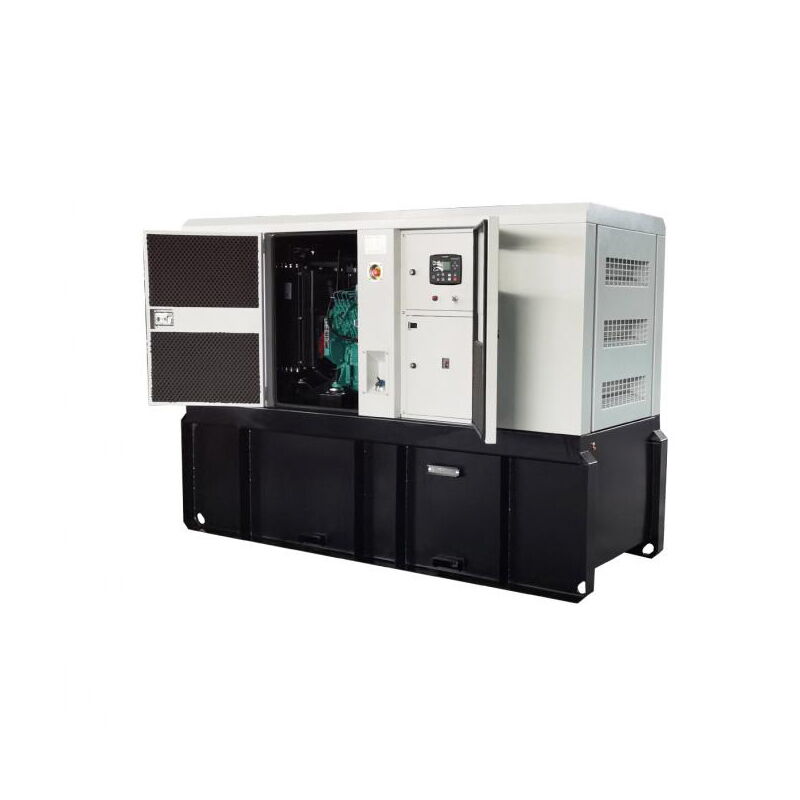

Product Item: Silent Diesel Generator Set, Soundproof Diesel Genset
Fuel Type: Diesel
Engine: Cummins 6BT5.9-G2
Rated Power: 80kW, 100kVA
Maximum Power: 88kW, 110kVA
Power Factor: 0.8
Frequency: 50 Hz
Speed: 1500 RPM
Rated Voltage: 400/230 V
Rated Current: 144.3 A
Fuel Tank Capacity: 550 L
Dimension: 2900 * 1080 * 1500 mm
Weight: 1700 kg
Noise Level: 70 dBA at 7 Meters
Battery: Two 80Ah Maintenance-Free Batteries
Alternator: Stamford
Controller: Deepsea/ComAp/Smartgen
Engine Specification
|
Engine Brand |
Cummins |
|
Engine Model |
6BT5.9-G2 |
|
Number of Cylinders |
6 Cylinders (Inline) |
|
Aspiration |
Turbocharged |
|
Governor Type |
Electric |
|
Maximum Engine Output Power |
94.6 kW |
|
Displacement |
5.9 L |
|
Compression Ratio |
17.3:1 |
|
Starting Voltage |
24 V |
|
Bore |
102 mm |
|
Stroke |
120 mm |
|
Lubrication Oil Capacity |
16.4 L |
|
Intake Air Flow |
100 L/s |
|
Fuel Consumption (100% Load) |
22 L/h |
Super Silent Generator Set
Our super silent generators are engineered to deliver outstanding performance while operating at remarkably low noise levels. With a noise level of just 70 dB at 7 meters, these generators provide a quiet and peaceful environment without compromising on power output.
Designed for residential, commercial, and industrial applications, our super silent generators are the ideal choice for settings where minimal noise is essential, such as hospitals, offices, and residential areas. We prioritize silent operation to ensure peace and tranquility in noise-sensitive environments. Beyond their ultra-quiet performance, our generators feature a robust construction and a user-friendly maintenance design. Built to the highest industry standards, they offer unmatched quality, reliability, and durability, ensuring long-term operation with minimal maintenance.
Key Features and Specifications
- Noise Reduction: Equipped with a high-performance built-in residential muffler to minimize noise levels.
- Optimized Airflow & Ambient Temperature Design: Advanced engineering ensures optimal performance in both prime and standby operations.
- Lifting Points: Standard top lifting points for easy transportation and installation.
- Forklift Pockets & Eyelets: Designed for convenient lifting and mobility.
- Fuel Inlet: External lockable steel fuel inlet with an electrical fuel gauge for security and ease of use.
- Power Outlet: User-friendly external power outlet flap for quick and easy access.
- Fuel Tank: Environmentally friendly fully bunded base fuel tank to prevent spills and leaks.
- Safety Features: Earth strap fitted on all canopy doors to enhance safety and grounding.
- Canopy Structure: Modular disassembly design with large doors for easy maintenance.
- Durable Coating: High-quality outdoor powder coating for superior protection against rust, corrosion, and UV radiation.
