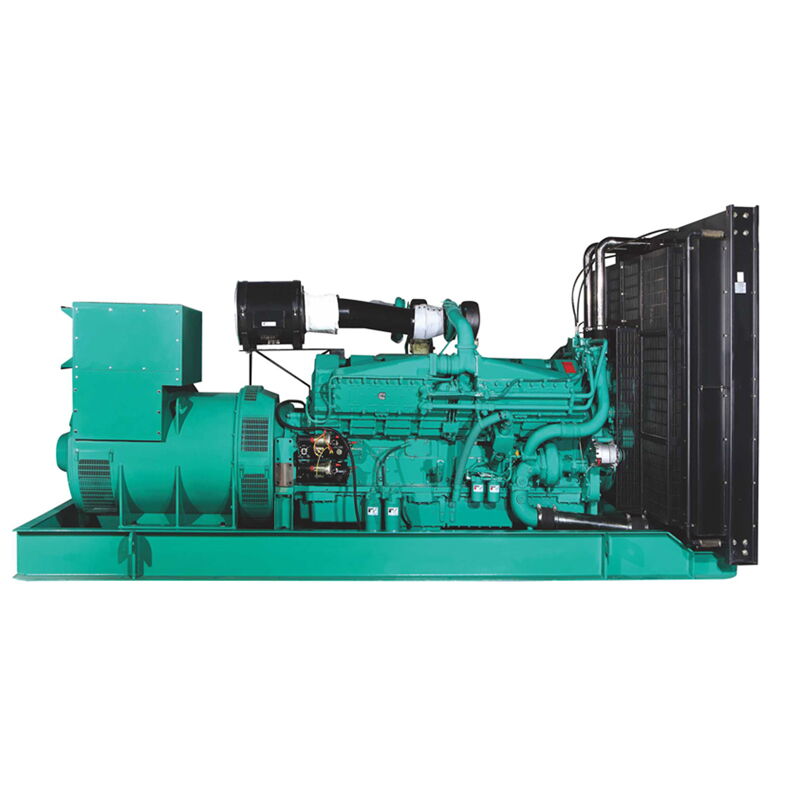

220kW 275kVA Diesel Generator Set, Cummins NTA855-G1A, 50 Hz
Key Specifications / Features
- Model No.: CGS-20250320-DGS-02
- Hits: 9
- Categories: Diesel Generator Sets
Detail Information
Product Name: 220kW Cummins Diesel Generator Set in Stock
Fuel Type: Diesel
Engine: Cummins NTA855-G1A
Alternator: Stamford HCI444D
Phase: Three Phase
Power Factor: 0.8
Rated Power: 220kW, 275kVA
Maximum Power: 250kW, 313kVA
Frequency: 50 Hz
Rated Voltage: 400/230 V
Rated Current: 396.9 A
Control Panel: Smartgen HGM6120N
Dimensions: 3315 * 1100 * 1650 mm
Weight: 2950 kg
Engine Specification
Engine Brand | Cummins |
Engine Model | NTA855-G1A |
No. of Cylinders | 6 (Inline) |
Aspiration | Turbocharged & Aftercooled |
Governor | Electric |
Max. Output Power | 291kW |
Displacement | 14.0 L |
Starting Voltage | 24 V |
Bore | 140 mm |
Stroke | 152 mm |
Lubrication Oil Capacity | 36 L |
Alternator Specification
Alternator Brand | Stamford |
Alternator Model | HCI444D |
Rated Output | 300kVA |
Frequency | 50 Hz |
Altitude Limit | ≤1000 m |
Insulation Class | H |
Voltage Regulation | AVR Model SX480 |
Protection Grade | IP23 |
Optional Alternators | Leroy Somer, Marathon, Mecc Alte |
Control Panel Specification
Controller Brand | Smartgen |
Controller Model | HGM6120N |
Breaker Brand | Delixi |
Breaker Capacity | 630A |
Battery Charger | Included |
Emergency Stop Button | Included |
Automatic Mains Failure (AMF) | Included |
Protection Features | High Temperature Low Oil Pressure Over/Under Speed Overload Start/Stop Fail Under/Over Voltage |
Optional Controllers | Deepsea, Smartgen, ComAp models |
