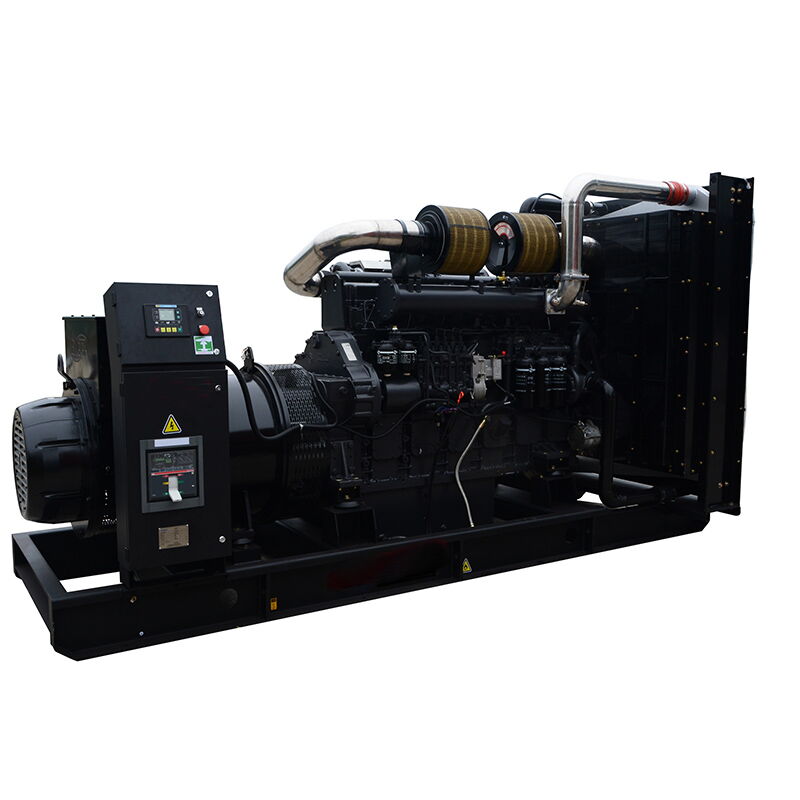

Open-type Diesel Generator Set, YC6C1070L-D20, 640kW 800kVA
Key Specifications / Features
- Model No.: CGS-20250311-DGS-01
- Hits: 3
- Categories: Diesel Generator Sets
Detail Information
Product Name: Open-type Diesel Generator Set for Sale
Fuel Type: Diesel
Engine: Yuchai YC6C1070L-D20
Prime Power: 640kW, 800kVA
Standby Power: 704 kW, 880kVA
Frequency: 50 Hz
Output Voltage: 400/230 V
Rated Current: 1154.7A
Oil Consumption: 0.4699 L/H
Dimension: 4580 × 1600 × 2250 mm
Weight: 6900 kg
Controller: Deepsea/ComAp/Smartgen
Optional Alternators: Stamford, Leroy Somer, Marathon, Mecc Alte and Chinese brushless brands
Engine Specifications
Brand | Yuchai |
Model | YC6C1070L-D20 |
Number of Cylinders | 6 Cylinders in-line |
Bore | 200 mm |
Stroke | 210 mm |
Displacement | 39.584 L |
Aspiration | Turbocharged & Aftercooled |
Rated Speed | 1500 RPM |
Governor Type | Electric |
Lubrication Oil Capacity | 180 L |
Starting Voltage | 24 V |
Max. Output Power | 787 kW |
Alternator Specifications
Rated Output | 800kVA |
Frequency | 50 Hz |
Altitude Capability | ≤ 1000 m |
Insulation Class | H |
Protection Grade | IP23 |
Optional Alternator Brands | Stamford, Leroy Somer, Marathon, Mecc Alte, and Chinese brushless brands |
