Key Specifications / Features
- Model no.: CGS-20250321-DGS-01
- Hits: 8
- Categories: Diesel Generator Sets
Detail Information

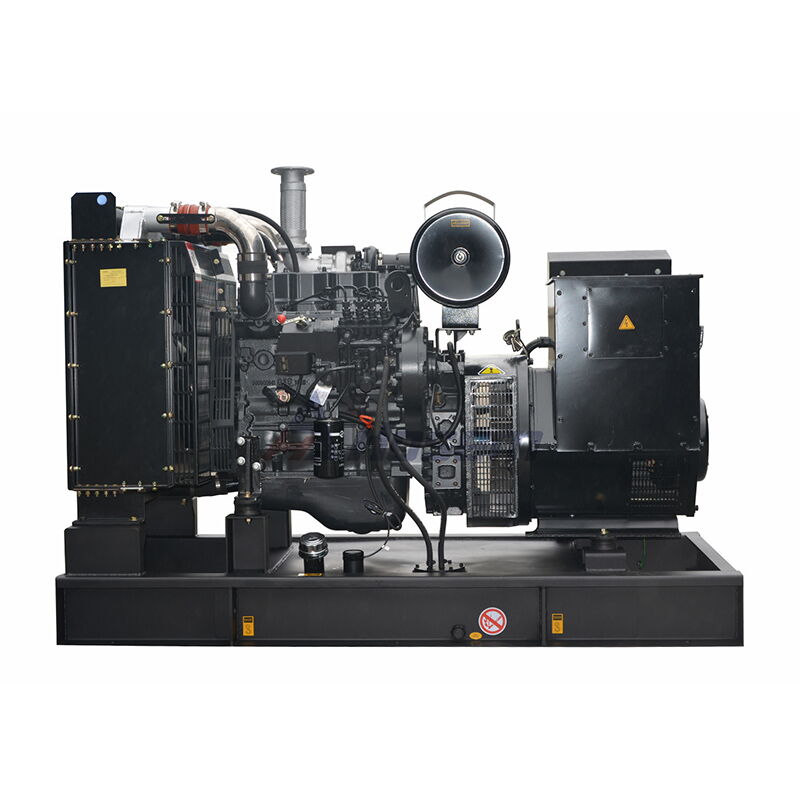

Product Name: 64kW SDEC Diesel Generator Set in Stock
Fuel Type: Diesel
Engine: SDEC 4HT4.3-G23
Alternator: Brushless Alternator
Rated Power: 64kW, 80kVA
Max. Power: 70.4kW, 88kVA
Frequency: 50 Hz
Rated Voltage: 380/220 V
Rated Current: 121 A
Fuel Tank Capacity: 160 Litres
Battery: Two 80A Free Maintenance Batteries
Control Panel: Smartgen HGM6120N
Noise Level at 7 Meters (Soundproof): 75 dBA
Open-type Genset Dimensions: 1950 * 900 * 1420 mm
Open-type Genset Weight: 1020 kg
Diesel Engine Specifications
|
Engine Manufacturer |
Shanghai Diesel Engine Co., Ltd. (SDEC) |
|
Engine Model |
4HT4.3-G23 |
|
No. of Cylinders |
4 Cylinders in Line |
|
Aspiration |
Turbocharged |
|
Governor |
Electric |
|
Max. Output Power |
86 kW |
|
Displacement |
4.3 L |
|
Starting Voltage |
24 V |
|
Bore × Stroke |
105 mm × 124 mm |
|
Lubrication Oil Capacity |
13 L |
|
Compression Ratio |
17.3:1 |
|
Fuel Tank Capacity |
160 L |
|
Fuel Consumption at 100% Load |
19.5 L/H |
|
Emission Standard |
Euro II |
Brushless Alternator Specifications
|
Rated Output |
80kVA |
|
Standby Output |
88kVA |
|
Frequency |
50 Hz |
|
Current |
121.6 A |
|
Insulation Class |
H |
|
Voltage Regulation |
AVR SX460 |
|
Protection Grade |
IP23 |
|
Max. Working Altitude |
≤1000m without output reduction |
|
Phase |
3 Phase |
|
Temperature Rise |
125°C |
|
Optional Alternators |
Leroy Somer, Marathon, Mecc Alte |
Control Panel Specifications
|
Controller Brand |
Smartgen |
|
Controller Model |
HGM6120N |
|
Breaker Brand |
Delixi |
|
Breaker Capacity |
160 A |
|
Battery Charger |
Smartgen BAC06A |
|
Emergency Stop Button |
Yes |
|
Automatic Mains Fail (AMF) |
Yes |
|
Fuel Level Monitoring |
Yes |
|
Automatic Transfer Switch (ATS) |
Optional |
|
Mains Monitor with AMF |
Yes |
|
Protection Features |
- Start-up fault (Shutdown) |
|
- High coolant temperature (Alarm & Shutdown) |
|
|
- Low oil pressure (Alarm & Shutdown) |
|
|
- Low fuel level (Alarm) |
|
|
- Low coolant level (Optional Alarm) |
|
|
- Overload (Alarm & Shutdown) |
|
|
- High battery voltage (Alarm) |
|
|
Optional Controllers |
Deepsea, Smartgen, ComAp Models |
