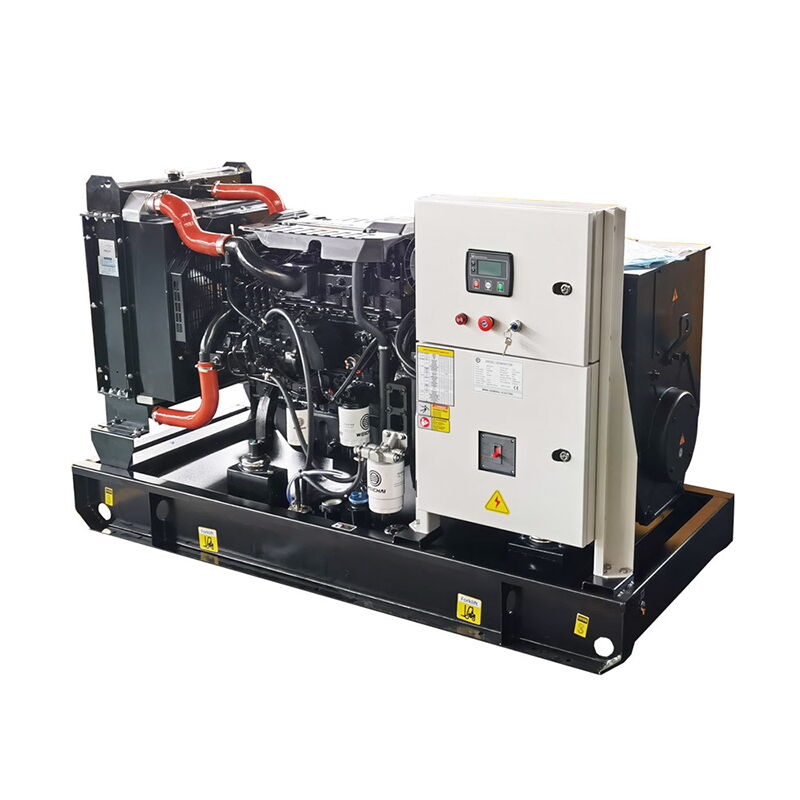

Water-cooled Diesel Generator, Weichai WP4.1D100E200, 80kW
Key Specifications / Features
- Model No.: CGS-20250314-DGS-02
- Hits: 9
- Categories: Diesel Generator Sets
Detail Information
Product Name: Weichai 80kW Diesel Generator Set, Water-cooled
Fuel Type: Diesel
Engine: Weichai WP4.1D100E200
Rated Power: 80kW, 100kVA
Maximum Power: 88kW, 110kVA
Frequency: 50 Hz
Phase and Wires: 3 Phase 4 Wires
Rated Voltage: 400/230 V
Rated Current: 144.3 A
Fuel Tank Capacity: 180 L
Cooling Method: Water-cooled
Open-Type Genset Dimension (LxWxH): 2190 * 800 * 1350 mm
Open-Type Genset Weight: 980 kg
Battery: Two Maintenance-Free Batteries
Diesel Engine Specifications
Brand | Weichai |
Model | WP4.1D100E200 |
Cylinders | 4 Cylinders, Inline |
Aspiration | Turbocharged |
Governor Type | Electric |
Max. Engine Output Power | 100 kW |
Displacement | 4.1 L |
Compression Ratio | 17.5 : 1 |
Starting Voltage | 24 V |
Bore x Stroke | 105 mm x 120 mm |
Lubrication Oil Capacity | 16.4 L |
Intake Air Flow | 5.8 m³/min |
Fuel Consumption at 100% Load | 21.4 L/h |
Key Features & Options
- Available as Open-Type or Soundproof Type for flexible installation.
- Compact Design suitable for limited spaces.
- Low Fuel Consumption for cost-effective operations.
- Two Maintenance-Free Batteries for reliable engine start.
- Noise Reduction Canopy ensuring 75 dBA at 7 meters (soundproof model).
- Efficient Turbocharged Engine for enhanced performance and reduced emissions.
- Electric Governor for stable and precise output regulation.
Applications
- Industrial and Factory Operations
- Construction Sites and Mining
- Commercial Buildings and Offices
- Hospitals and Emergency Backup
- Agriculture and Remote Locations
