Key Specifications / Features
- Model no.: CGS-20250307-GGS-02
- Hits: 0
- Categories: Gas Generator Sets
Detail Information

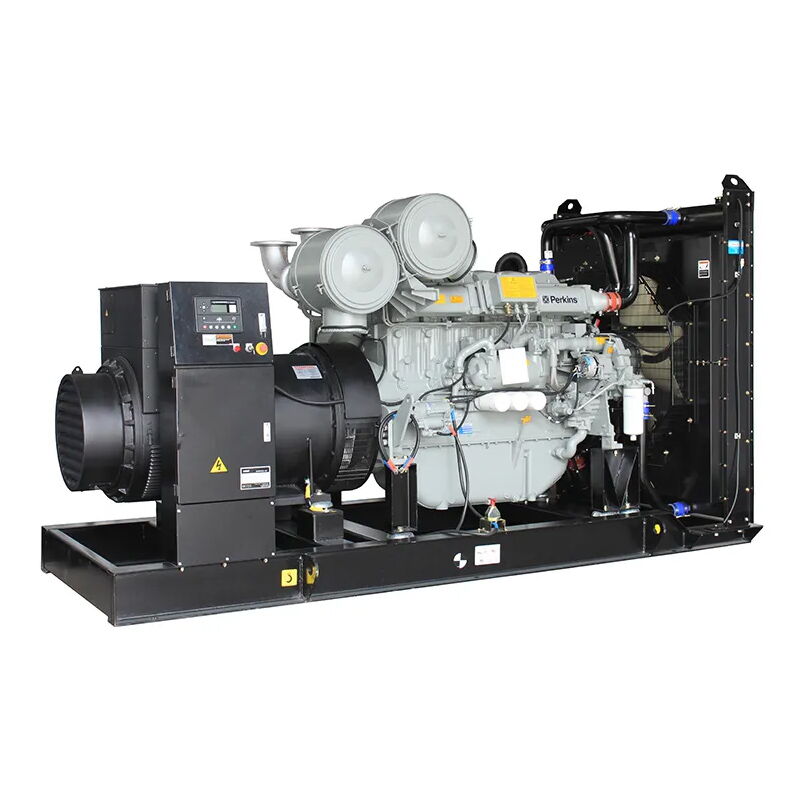

Product Name: Natural Gas Generator Set
Fuel Type: Natural Gas
Rated Power: 1000kW, 1250kVA
Engine: Perkins 4016-61TRS2
Cylinder Number: 16 Cylinders
Alternator: Stamford LVI634G
Rated Speed/Frequency: 1500 RPM/50Hz
Rated Voltage: 400/230V
Power Factor: 0.8
Phase/Wire: 3 Phase/4 Wire
Rated Current: 1800A
Weight: 11,998 kg
Overall Dimensions (L×W×H): 5660*2600*2960 mm

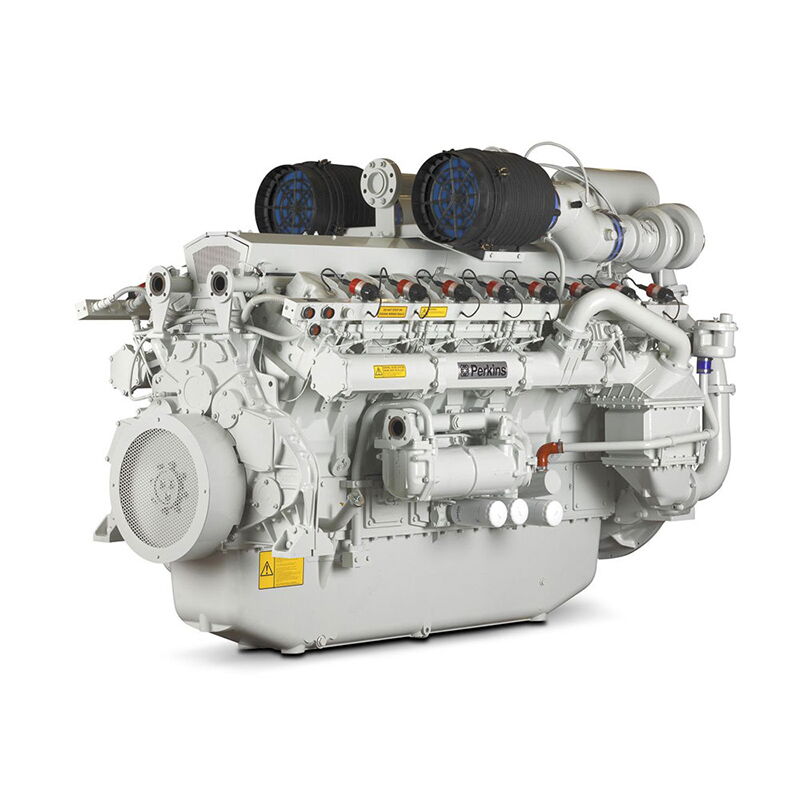

Engine Specifications
|
Engine Model |
Perkins 4016-61TRS2 |
|
Air Intake Way |
Turbo Intercooled |
|
Cooling System |
Closed Cooling Cycle |
|
Number of Cylinders |
16 Cylinders |
|
Displacement |
61.12 L |
|
Bore × Stroke |
160 × 190 mm |
|
Max. Standby Power @50Hz |
1100 kW, 1375 kVA |
Alternator Specifications
|
Alternator Model |
STAMFORD LVI634G |
|
Rated Power |
1000 kW, 1250 kVA |
|
Excitation System |
Brushless and Self-Exciting |
|
Voltage Control |
AVR |
|
Insulation Class |
H |
|
Protection Level |
IP23 |
Fuel Requirements: Methane content ≥ 92% (or gas lower heating value ≥ 33 MJ/Nm³), sulfur content ≤ 200 PPM, impurity size ≤ 5μm, impurity content ≤ 50 mg/Nm³, and water content ≤ 40 g/Nm³.
Testing & Quality Assurance: Each gas genset undergoes rigorous testing at 0%, 25%, 50%, 75%, and 100% load, including static and dynamic response tests. All protection devices and control systems undergo strict inspection before leaving the factory.
Optional Parts
- Soundproof Canopy
- Parallel Cabinet
- Synchronization Cabinet
- Automatic Transfer Switch (ATS)
- Inlet Gas Pressure Regulating Valve
- Gas-Water Separator
- Additional Spare Parts
