Key Specifications / Features
- Model no.: CGS-20250311-GGS-01
- Hits: 0
- Categories: Gas Generator Sets
Detail Information

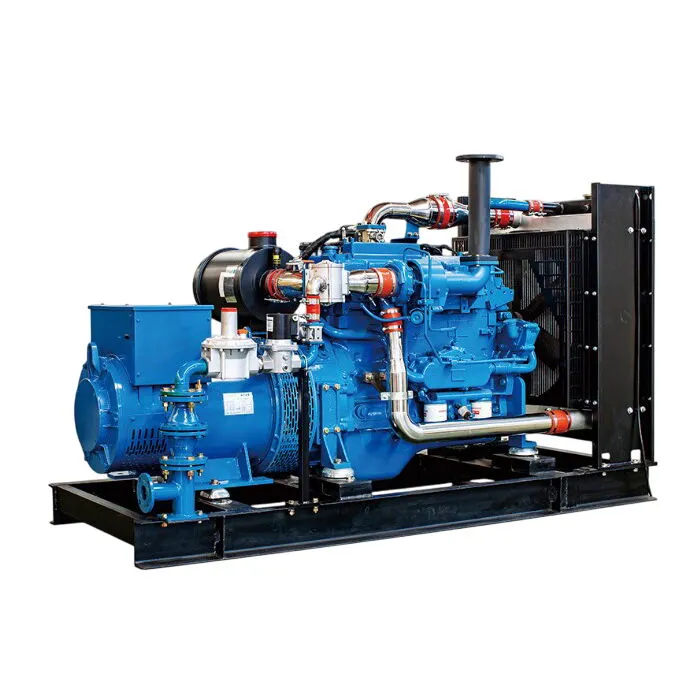

Product Name: Open Type Natural Gas Generator Set on Factory Price
Fuel Type: Natural Gas
Engine: Perkins 4006-E23TRS4
Alternator: Stamford S5L1D-D41
Rated Power: 408kW, 510kVA
Speed/Frequency: 1500 RPM/50 Hz
Voltage: 400/230 V
Power Factor: 0.8
Rated Current: 736 A
Starting Mode: 24V DC Electrical Starting
Air Intake Method: Turbocharged & Air Cooled
Cooling Method: Closed Cooling Cycle
Dimensions (L × W × H): 3780 * 1720 * 2220 mm
Weight: 5138 Kg
Genset Voltage and Frequency Specifications
|
Steady Voltage Regulation |
≤ ±1% |
|
Transient Voltage Regulation |
−15% ≤ δu ≤ +20% |
|
Voltage Regulation Range |
±5% |
|
Voltage Wave Motion Rate |
≤ ±1% |
|
Voltage Recovery Time |
≤ 4 seconds |
|
Steady Frequency Regulation |
≤ ±0.5% |
|
Transient Frequency Regulation |
−15% ≤ δf ≤ +10% |
|
Frequency Fluctuation Rate |
≤ ±0.5% |
|
Frequency Steady Time |
≤ 3 seconds |

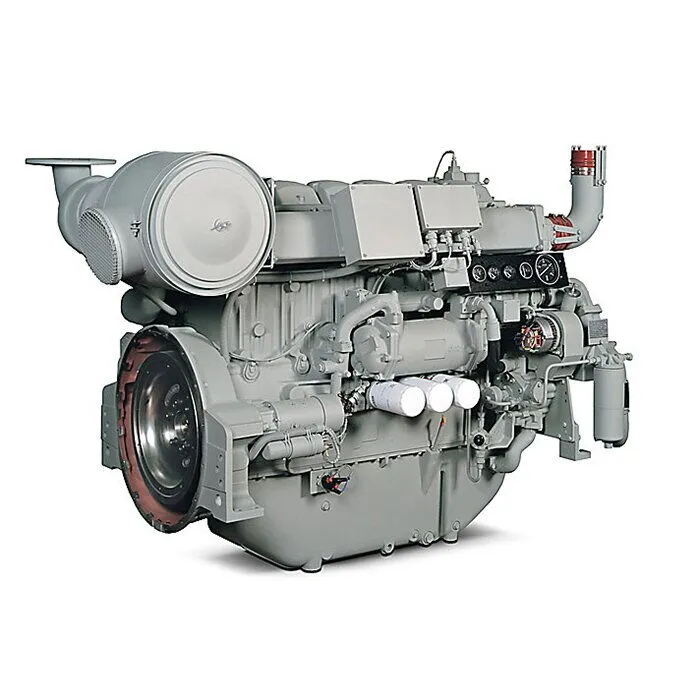

Perkins Engine Technical Specifications
|
Engine Brand |
Perkins |
|
Engine Model |
4006-E23TRS4 |
|
Engine Type |
6 Cylinders / In-line (L) |
|
Displacement |
22.921 L |
|
Bore |
160 mm |
|
Stroke |
190 mm |
|
Compression Ratio |
14.0:1 |
|
Rated RPM @ 50Hz |
1500 rpm |
|
Max. Standby Power @ 50Hz |
447 kW |
|
Governor Type |
Electronic |
|
Dimensions (L × W × H) |
2092 × 1204 × 1624 mm |
|
Weight |
2459 kg |
Genset System Specifications
|
System |
Item |
Specifications |
|
Air Intake System |
Air Intake Method |
Turbocharged & Air Cooled |
|
Engine Air Flow |
22 m³/min |
|
|
Cooling System |
Cooling Method |
Closed Cooling Cycle |
|
Coolant Capacity |
34 L |
|
|
Coolant Entry Temp. (Max) |
88°C |
|
|
Coolant Exit Temp. (Max) |
96°C |
|
|
Exhaust System |
Exhaust Gas Flow |
57.72 m³/min |
|
Exhaust Temperature |
453°C |
|
|
Max Back Pressure |
6 KPa |
|
|
Fuel System |
Fuel Type |
Natural Gas |
|
Fuel Supply Pressure |
7–28 kPa |
|
|
Lower Calorific Value |
34.71 MJ/Sm³ |
|
|
Fuel Density |
0.76 kg/Sm³ |
|
|
Fuel Rating (Consumption) |
117.6 m³/hr |
|
|
Lubrication System |
Max Temp to Bearings |
105°C |
|
Total Oil Capacity |
122.7 L |
|
|
Oil Pump Type |
Gear Driven |
Alternator Technical Specifications
|
Brand |
Stamford |
|
Model |
S5L1D-D41 |
|
Rated Power |
440kW, 550kVA |
|
Voltage Classes |
400/230 V |
|
Phase |
3 Phase |
|
Power Factor |
0.8 |
|
Excitation Method |
Self-Excited |
|
AVR Type |
AS440 |
|
Rated Ambient Temperature |
40°C |
|
Bearing Number |
1 |
|
Poles |
4 |
|
Insulation Class |
H |
|
Temperature Rise |
H |
|
Protection Grade |
IP23 |
|
Altitude |
≤ 1000 m |
|
Overspeed Limit |
2250 rpm |
|
Total Harmonic Distortion (THD) |
< 5% |
|
Telephone Harmonic Factor (THF) |
< 2% |
|
Telephone Influence Factor (TIF) |
< 50 |
Controller Technical Specifications
|
Operating Voltage |
12/24 V |
|
Operating Current (12V) |
380 mA |
|
Operating Current (24V) |
188 mA |
|
Operating Temperature |
-25°C to 70°C |
|
Relative Humidity |
20% to 93% RH |
|
IP Rating (Front) |
IP65 |
|
IP Rating (Back) |
IP20 |
|
Mounting Hole Size |
214 × 160 mm |
|
Net Weight |
0.85 kg |
