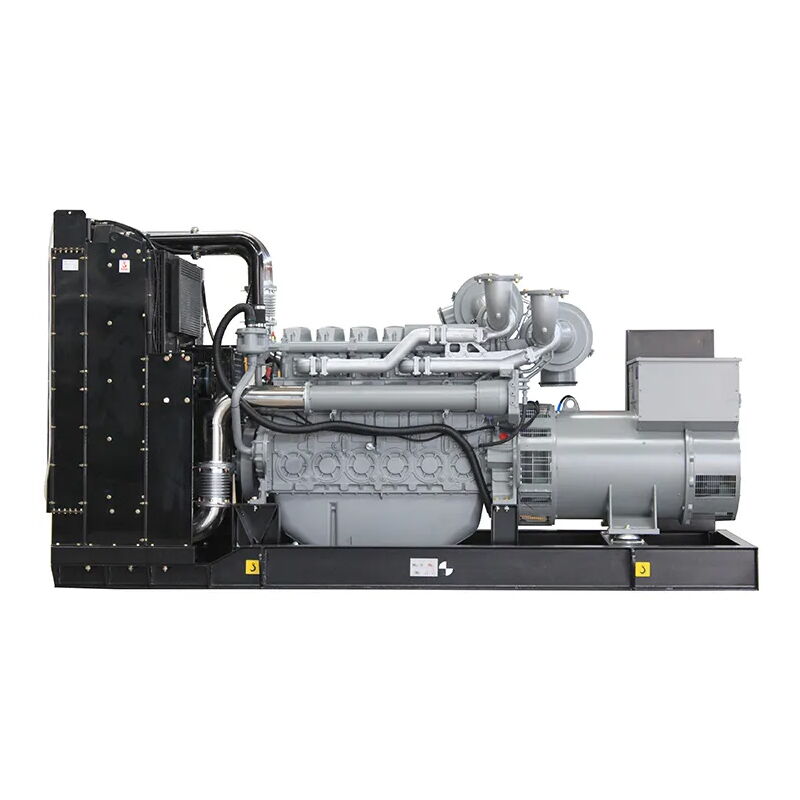

Natural Gas Generator Set, 307kW 384kVA, Perkins 4006-23TRS1
Key Specifications / Features
- Model No.: CGS-20250307-GGS-01
- Hits: 8
- Categories: Gas Generator Sets
Detail Information
Product Name: Natural Gas Generator Set
Engine: Perkins 4006-23TRS1
Fuel Type: Natural Gas
Cylinder Number: 6 Cylinders
Alternator: Stamford S4L1D-F41
Rated Power: 307kW, 384kVA
Speed/Frequency: 1500 RPM/50 Hz
Voltage Classes: 400/230V
Power Factor: 0.8
Rated Current: 554A
Starting Mode: 24V DC Electric Starting
Weight: 4960 kg
Dimensions(L×W×H): 3780*1720*2220 mm (Open Type)
Voltage Regulation Specifications
Steady Voltage Regulation: ≤ ±1%
Transient Voltage Regulation: -15% ≤ δu ≤ +20%
Voltage Regulation Range: ±5%
Voltage Wave Motion Rate: ≤ ±1%
Voltage Recovery Time: ≤ 4s
Frequency Regulation Specifications
Steady Frequency Regulation: ≤ ±0.5%
Transient Frequency Regulation: -15% ≤ δf ≤ +10%
Frequency Fluctuation Rate: ≤ ±0.5%
Frequency Steady Time: ≤ 3s

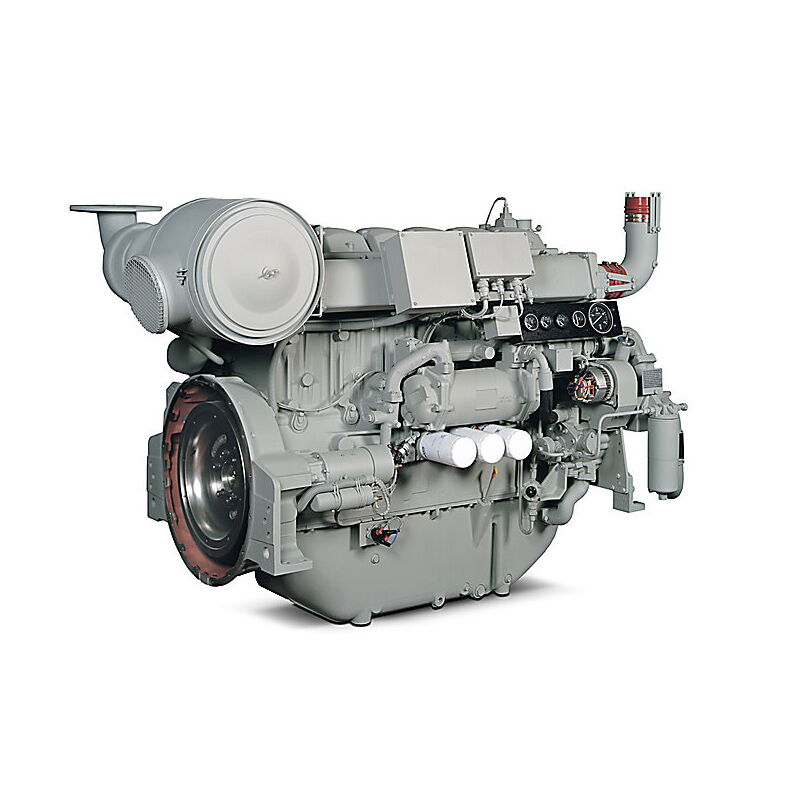

Engine Specifications
Brand | Perkins |
Model | 4006-23TRS1 |
Air Intake Way | Turbo Charge Air Cooled |
Cooling Way | Closed cooling cycle |
Cylinder/Arrangement | 6 Cylinders, in-Line |
Displacement | 22.92L |
Bore | 160mm |
Stroke | 190mm |
Compression Ratio | 12.0:1 |
Rated RPM @50Hz | 1500RPM |
Max. Standby Power @50Hz | 322kW |
Governor | Electronic |
Alternator Specifications
Brand | STAMFORD |
Model | S4L1D-F41 |
Rated Power | 380kVA, 304kW |
Voltage Classes | 400/230V |
Phase | 3 |
Power Factor | 0.8 |
Excitation Way | SELF EXCITED |
AVR Type | AS440 |
Rated Ambient Temperature | 40°C |
Fuel System
Fuel Type | Natural Gas |
Fuel Supply Pressure | 10-50 kPa |
Main Composition | ≥92% |
Fuel Consumption | 86 kg/hr |
