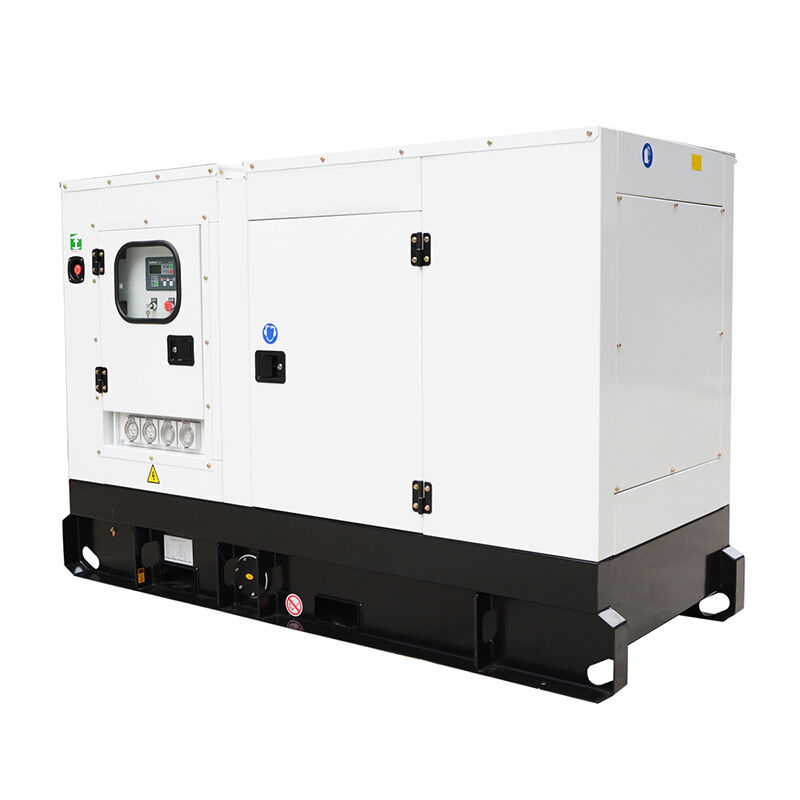

135kW Silent Diesel Generator, 60 Hz, Perkins 1106D-E70TAG2
Key Specifications / Features
- Model No.: CGS-20250325-SGS-02
- Hits: 18
- Categories: Silent Generator Set
Detail Information
Product Name: 135kW 169kVA Perkins Diesel Generator Set, Soundproof Genset
Generator Type: Silent Diesel Generator Set
Engine: Perkins 1106D-E70TAG2
Alternator: Stamford UCI274E
Prime Power: 135kW, 169kVA
Standby Power: 149kW, 186kVA
Frequency: 60 Hz
Output Voltage: 240 V
Rated Current: 244 A
Oil Consumption: 0.42 L/H
Dimensions: 2480 * 1100 * 1830 mm
Weight: 1790 kg
Noise Level: 70 dBA at 7 Meters
Engine Specification
Engine Brand | Perkins |
Engine Model | 1106D-E70TAG2 |
Engine Max. Output Power | 176kW |
Number of Cylinders | 6 Cylinders (In-line) |
Bore | 105 mm |
Stroke | 135 mm |
Displacement | 7.01 L |
Cooling Fan Air Flow | 174 m³/min |
Compressed Air Flow | 9.4 m³/min |
Exhaust Gas Flow | 24.4 m³/min |
Exhaust Gas Temperature | 478°C |
Lubrication Oil Capacity | 16.5 L |
Cooling Water Capacity | 21 L |
Starting Voltage | 12 V |
Alternator Specification
Alternator Brand | Stamford |
Alternator Model | UCI274E |
Rated Output | 178kVA |
Frequency | 60 Hz |
Altitude | ≤ 1000 m |
Insulation Class | H |
Protection Grade | IP23 |
Optional Alternators | Leroy Somer, Marathon, Mecc Alte, Chinese Brushless |
Control Panel Specification
Controller Brand | Deepsea |
Controller Model | DSE7320 |
Control Panel Functions | Automatic genset start/stop, Battery charger, Emergency stop, AMF, Remote control, Microprocessor-based design, LED alarm indication and sound alarm |
Controller Display | Generator voltage, current, temperature, frequency, power, start count, pressure, charging voltage, battery voltage |
Protection Features | Over/Under Speed Alarm and Shutdown, Start/Stop Failure Alarm, Over Current Alarm, Low Oil Pressure Alarm, High Engine Temperature Alarm, Overload Alarm, Low/High Battery Voltage Alarm, Speed Signal Loss Alarm, Charge Fail Alarm |
