Key Specifications / Features
- Model no.: CGS-20250327-DGS-03
- Hits: 3
- Categories: Diesel Generator Sets
Detail Information

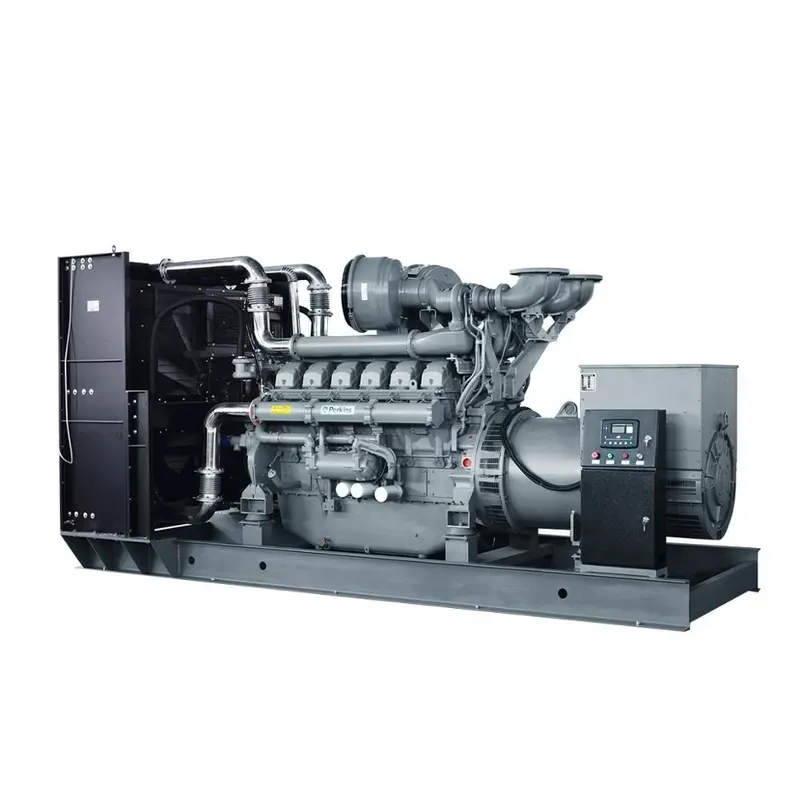

Product Name: 1400kW 1750kVA Perkins Diesel Generator Set, Open-type Genset
Fuel Type: Diesel
Engine: Perkins 4016TAG
Alternator: Leroy Somer LSA51.2S55
Rated Power: 1400kW, 1750kVA
Standby Power: 1512kW, 1890kVA
Frequency: 50 Hz
Output Voltage: 230V/400V
Max Current (Amps): 2728 A
Power Factor (COSΦ): 0.8 (lagging)
Phase/Wires: 3 Phase, 4 Wires
Start Mode: Battery
Engine Specifications
|
Engine Brand |
Perkins |
|
Engine Model |
4016TAG |
|
Cylinders |
16 |
|
Cycle |
4 stroke |
|
Fuel |
0# light diesel |
|
Compression Ratio |
13.6:1 |
|
Standby Power |
1649 kW |
|
Prime Power |
1502 kW |
|
Injection Type |
Indirect injection |
|
Intake System |
Turbocharged |
|
Intake Resistance |
≤6.4 kPa |
|
Governor/Class |
Electrical |
|
Start Mode |
DC24V electric start |
|
Cooling System |
Water cooled (by radiator) |
|
Cylinders Layout |
Line |
|
Displacement |
61.12 L |
|
Rated Speed |
1500 rpm |
Alternator Specifications
|
Alternator Brand |
Leroy Somer |
|
Alternator Model |
LSA51.2S55 |
|
Frequency |
50 Hz |
|
Phase |
3 phase |
|
Windings |
100% Copper |
|
Exciter |
Brushless |
|
Wiring |
12 wires |
|
Terminals |
6 or 12 |
|
Insulation Class |
H |
|
Altitude |
≤1000m |
|
Overspeed |
2250 rpm |
|
Protection |
IP23 |
|
Air Flow |
0.15 m³/s |
|
Frequency Fluctuation |
≤±0.5% |
|
Voltage Regulation |
±0.5% |
|
Voltage Distortion |
<4% |
|
Total Harmonic Distortion (TGH/THC) |
<4% |
|
Telephone Interference (THF) |
THF < 2%, TIF < 50 |
|
Prime Power |
Not specified |
|
Original |
China |
|
Rated Voltage |
240/120V switchable |
|
Frequency Regulation |
≤±0.5% (stable) |
|
Voltage Control |
AVR |
Control Panel Specifications
|
Specification |
Details |
|
Brand |
Deep Sea |
|
Model |
DSE6020 |
|
Functions |
Start/Stop generator set manually or automatically Open controller output can be defined for Pre-heat/Idle output High coolant temperature protection Low oil pressure protection Overload protection Generator over/under frequency protection Generator over/under/unbalanced voltage protection Over-speed protection Automatic Mains Failure (AMF) |
