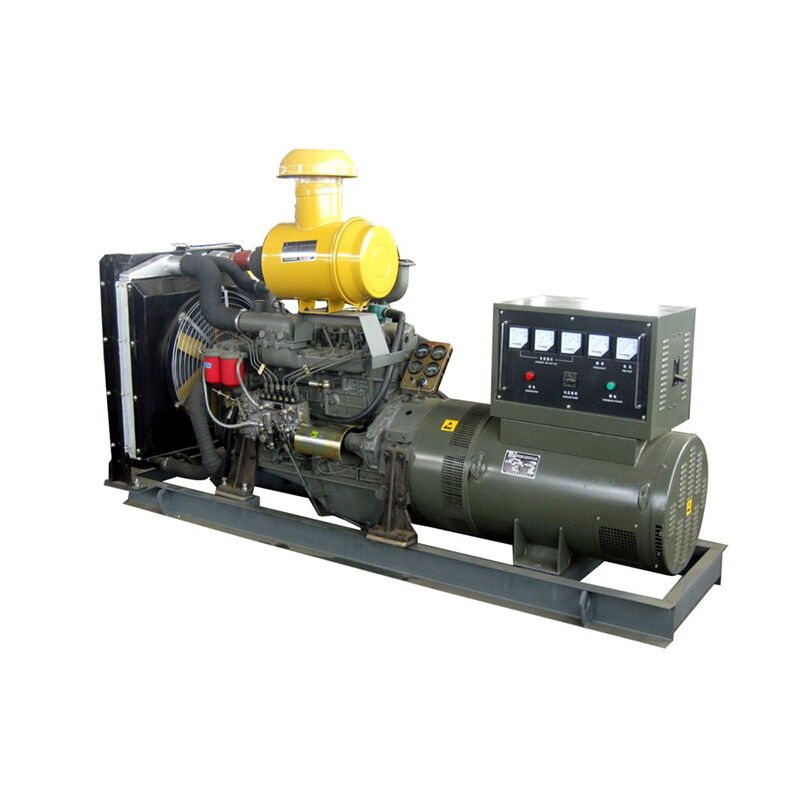

150kW Diesel Generator Set, R6113ZLD Engine, 3 Phase, 270 A
Key Specifications / Features
- Model No.: CGS-20250318-DGS-01
- Hits: 0
- Categories: Diesel Generator Sets
Detail Information
Product Name: 150kW Weichai Diesel Generator Set for Sale
Fuel Type: Diesel
Engine: Weichai R6113ZLD
Frequency: 50 Hz
Rated Power: 150kW, 187.5kVA
Standby Power: 165kW, 206kVA
Output Voltage: 230/400 V
Rated Current: 270 A
Rated Speed: 1500 r/min
Noise Level: 70-75 dB (Silent Type) / 90-110 dB (Open Type)
Power Factor: COSΦ = 0.8 (Lagging)
Phase/Wires: 3 Phase, 4 Wires
Start Mode: Electric
Fuel Consumption: 218 g/kWh @ 100% Load
Protection Features: Low Oil Pressure, High Water Temperature, Over-speed, Over-current
Dimensions (L*W*H): 2550 * 900 * 1650 mm
Gross Weight: 1600 kg
Engine Specifications (Weichai R6113ZLD)
Brand | Weichai |
Model | R6113ZLD |
No. of Cylinders | 6 |
Fuel Type | 0# Light Diesel |
Cooling System | Low Temperature After Cooling |
Overload Capacity | 110% |
Engine Power | 155kW, 194kVA |
Start Mode | DC 24V Electric Start |
Cylinders Layout | In-Line |
Displacement | 7.518 L |
Speed-Governing | Electric |
Steady Speed Droop | ≤1% |
Alternator Specifications
Protection Grade | IP23 |
Frequency Fluctuation | ≤±0.5% |
Voltage Fluctuation | ≤±0.5% |
Rated Power | 150kW, 188kVA |
Rated Voltage | 230/400 V |
Frequency Regulation | ≤±0.5% (Stable) |
Voltage Control | AVR |
