Key Specifications / Features
- Model no.: CGS-20250318-DGS-02
- Hits: 0
- Categories: Diesel Generator Sets
Detail Information

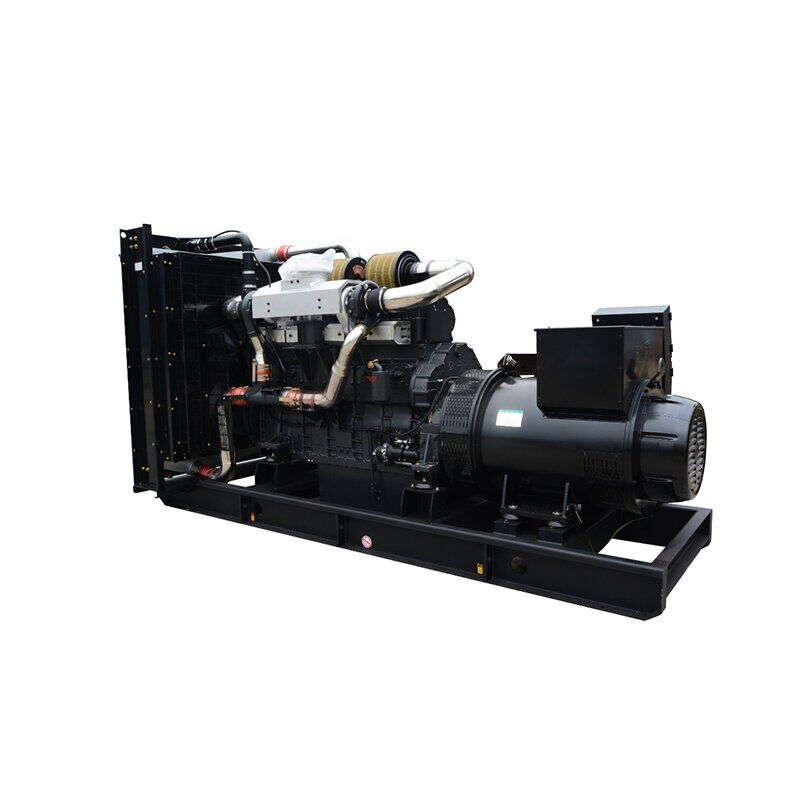

Product Name: 360kW 450kVA Yuchai Diesel Generator Set, Open-Type
Fuel Type: Diesel
Engine: Yuchai YC6T600L-D22
Alternator: Brushless Alternator
Prime Power: 360kW, 450kVA
Standby Power: 396kW, 495kVA
Frequency: 50 Hz
Output Voltage: 400/230 V
Rated Current: 720 A
Oil Consumption: 0.39 L/H
Dimension: 3520 * 1350 * 1950 mm
Weight: 3520 kg
Engine Specifications
|
Brand |
Yuchai |
|
Model |
YC6T600L-D22 |
|
Number of Cylinders |
6 (In-Line) |
|
Bore |
145 mm |
|
Stroke |
165 mm |
|
Displacement |
16.35 L |
|
Aspiration |
Turbocharged & Aftercooled |
|
Rated Speed |
1500 RPM |
|
Governor Type |
Electric |
|
Lubrication Oil Capacity |
52 L |
|
Starting Voltage |
24 V |
|
Max. Engine Output Power |
441 kW |
Alternator Specifications
|
Rated Output |
450kVA |
|
Frequency |
50 Hz |
|
Altitude |
≤1000 m |
|
Insulation Class |
H |
|
Protection Grade |
IP23 |
|
Optional Alternators |
Leroy Somer, Marathon, Mecc Alte, Chinese Brushless Alternators |
Control Panel Specifications
|
Controller Brand |
Deepsea DSE7320 |
|
Control Panel Functions |
Automatic Start/Stop, Automatic Battery Charger, Emergency Stop, AMF (Automatic Mains Failure), Remote Control, Microprocessor-Based Design, LED & Sound Alarm Indications |
Control Panel Display Parameters
|
Parameter |
Unit |
|
Generator Voltage |
Uab, Ubc, Uca V |
|
Generator Current |
Ua, Ub, Uc A |
|
Generator Temperature |
°C/°F |
|
Generator Frequency |
Hz |
|
Generator Power |
kW, kVA, kWh, kVAr, kVArh, kVAh |
|
Start Count |
Up to 999999 times |
|
Oil Pressure |
kPa/Psi/Bar |
|
Charging Voltage |
V |
|
Battery Voltage |
V DC |
Generator Protection Features
|
Protection Feature |
Alarm Type |
|
Over / Under Speed |
Alarm & Shutdown |
|
Start / Stop Failure |
Alarm |
|
Over Current |
Alarm & Shutdown |
|
Under / Over Generator Voltage |
Alarm & Shutdown |
|
Low Oil Pressure |
Alarm & Shutdown |
|
High Engine Temperature |
Alarm & Shutdown |
|
Over Load |
Alarm & Shutdown |
|
Low and High Battery Voltage |
Alarm |
|
Loss of Speed Signal |
Alarm & Shutdown |
|
Charge Fail |
Alarm |
