16kW 20kVA Diesel Generator Set, Quanchai QCN490D, Soundproof
Key Specifications / Features
- Model No.: CGS-20250314-SGS-01
- Hits: 3
- Categories: Silent Generator Set
Detail Information

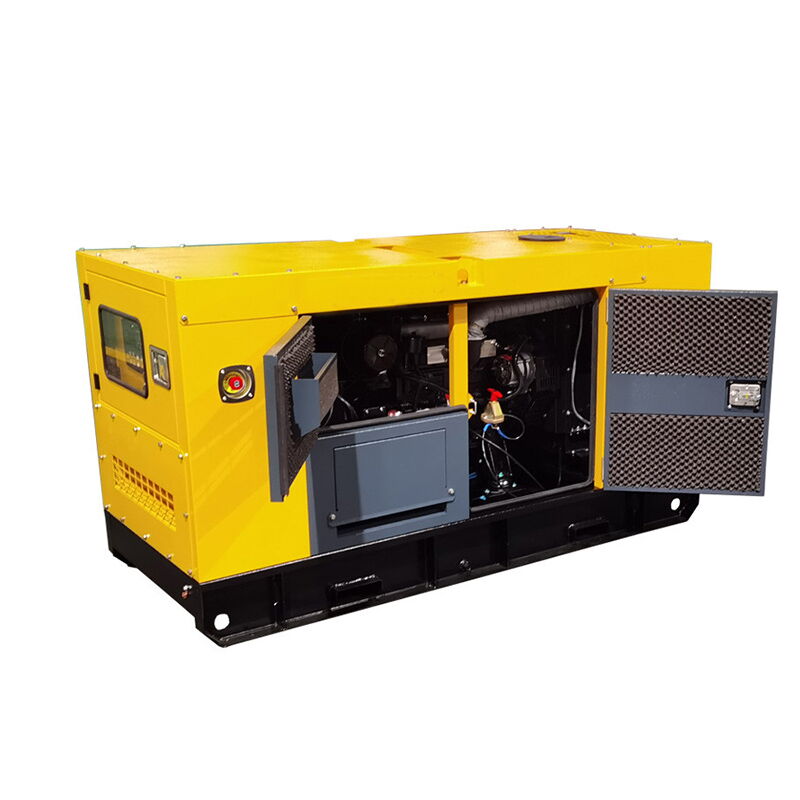

Product Name: Quanchai 16kW Diesel Generator Set, Super Silent, Soundproof
Fuel Type: Diesel
Engine: Quanchai QCN490D
Frequency: 50 Hz
Rated Power: 16kW, 20kVA
Max. Power: 18kW, 22kVA
Rated Voltage: 400/230 V
Rated Current: 28.9 A
Fuel Tank Capacity: 75 Liters
Cooling Method: Water Cooling
Battery: One Free Maintenance Battery
Noise Level at 7 Meters: 68 dBA
Controller: Deepsea
Dimension (Soundproof): 1850 × 850 × 1100 mm
Weight (Soundproof): 860 kg
Engine Specifications
Engine Brand | Quanchai |
Engine Model | QCN490D |
Number of Cylinders | 4 Cylinders in line |
Aspiration | Naturally Aspirated |
Governor | Mechanical |
Engine Max. Output Power | 22 kW |
Displacement | 2.672 L |
Starting Voltage | 12 V |
Bore | 90 mm |
Stroke | 105 mm |
Lubrication Oil Capacity | 6.8 L |
Compression Ratio | 18 : 1 |
Intake Air Flow | 2 m³/min |
Fuel Consumption at 100% Load | 6.6 L/h |
Alternator Specifications
Rated Output | 22kVA |
Frequency | 50 Hz |
Altitude | ≤ 1000 m |
Insulation Class | H |
Voltage Regulation | SX460 |
Protection Grade | IP23 |
Working Temperature without Output Decrease | ≤ 40 °C |
Phase | 3 Phase |
Temperature Rise | 125°C |
Optional Alternator Brands | Leroy Somer, Marathon, Mecc Alte, Hosem Brushless Alternator |
