Key Specifications / Features
- Model no.: CGS-20250312-SGS-01
- Hits: 1
- Categories: Silent Generator Set
Detail Information

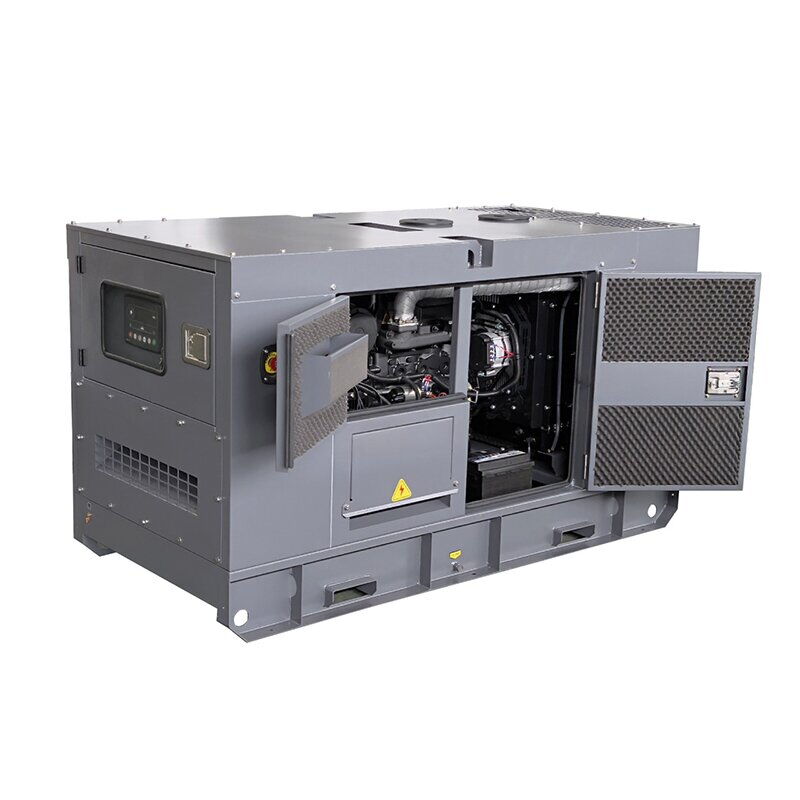

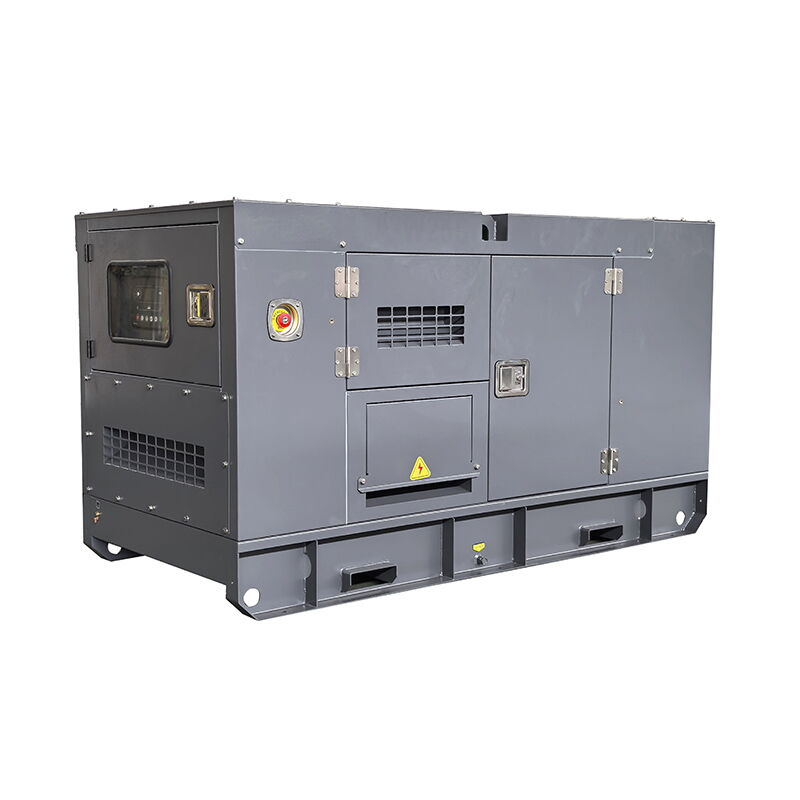

Product Name: 16kW 20kVA Soundproof Generator Set in Stock
Type: Silent Generator Set
Fuel: Diesel
Engine: Perkins 404A-22G1
Power Factor: 0.8
Rated Power: 16kW, 20kVA
Maximum Power: 17.6kW, 22kVA
Frequency: 50 Hz
Phase: 3 Phase
Rated Voltage: 400/230 V
Rated Current: 28.9 A
Fuel Tank Capacity: 50 L
Noise Level @ 7m: 72 dBA
Starting Battery: One 60A Maintenance-Free Battery
Dimensions: 1850 * 850 * 1100 mm
Weight: 780 kg
Alternator Brands: Stamford, Leroy Somer, Marathon, Mecc Alte (Brushless)
Controller: Smartgen HGM6120

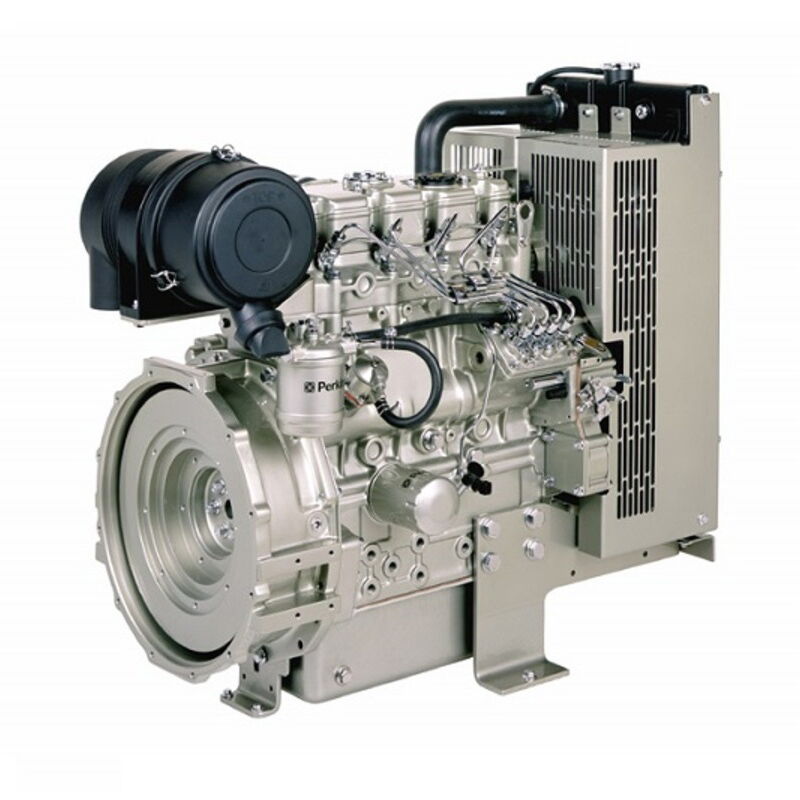

Engine Technical Data
|
Engine Brand |
Perkins |
|
Engine Model |
404A-22G1 |
|
Number of Cylinders |
4 Cylinders in-line |
|
Aspiration |
Naturally Aspirated |
|
Governor Type |
Mechanical |
|
Maximum Output Power |
20.6kW |
|
Displacement |
2.2 L |
|
Compression Ratio |
23.3 : 1 |
|
Starting Voltage |
12 V |
|
Bore |
84 mm |
|
Stroke |
100 mm |
|
Lubrication Oil Capacity |
10.6 L |
|
Intake Air Flow |
1.45 m³/min |
|
Fuel Consumption (100% Load) |
5.3 L/h |
Alternator Technical Data
|
Rated Output |
20kVA |
|
Frequency |
50 Hz |
|
Altitude |
≤1000 m |
|
Insulation Class |
Class H |
|
Phase |
3 Phase |
|
Operating Temperature (without power de-rating) |
≤40°C |
|
Operating Altitude (without power de-rating) |
≤1000 m |
|
Automatic Voltage Regulator |
SX460 |
|
Protection Grade |
IP23 |
|
Optional Alternator Brands |
Leroy Somer, Marathon, Mecc Alte (Brushless) |
Controller Technical Data
|
Controller Brand |
Smartgen |
|
Controller Model |
HGM6120 |
|
Breaker Brand |
Delixi |
|
Breaker Capacity |
32 A |
|
Battery Charger |
Smartgen BAC06A |
|
Emergency Stop Button |
Supplied |
|
Automatic Mains Failure (AMF) |
Supplied |
|
Fuel Level Monitoring |
Supplied |
|
Automatic Transfer Switch (ATS) |
Optional |
|
Protections & Alarms |
Start-up fault (shutdown) High coolant temperature (alarm & shutdown) Low oil pressure (alarm & shutdown) Low fuel level (alarm) Low coolant level (optional alarm) Overload (alarm & shutdown) High battery voltage (alarm) |
|
Optional Controllers |
Models from Deepsea, Smartgen, ComAp |
