Key Specifications / Features
- Model no.: CGS-20250326-SGS-01
- Hits: 5
- Categories: Silent Generator Set
Detail Information

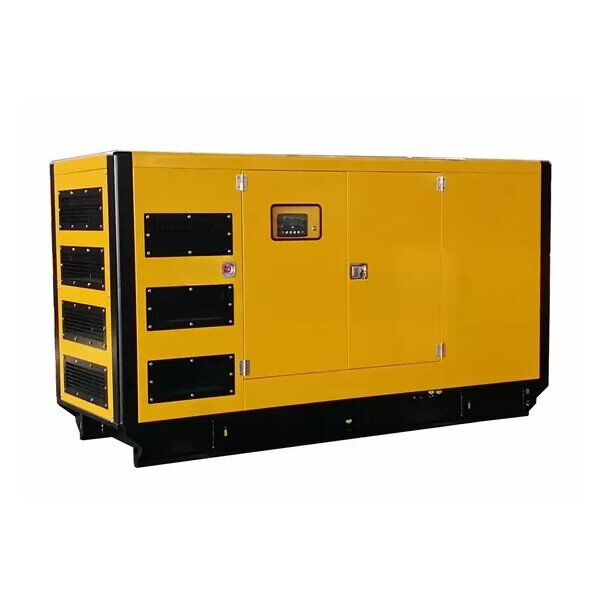

Product Name: 200kW 250kVA Cummins Diesel Generator Set, Silent Generator
Fuel Type: Diesel
Engine: Cummins 6LTAA8.9-G2
Alternator: Mecc Alte ECO38-1L4A
Rated Power: 200kW, 250kVA
Max. Power: 220kW, 275kVA
Frequency: 50 Hz
Rated Voltage: 400/230 V
Rated Current: 360.9 A
Noise Level: 70 dBA at 7m Away
Dimensions (L×W×H): 3500 * 1120 * 1700 mm
Weight: 2500 kg
Engine Specification (Cummins Diesel Engine)
|
Brand |
Cummins |
|
Model |
6LTAA8.9-G2 |
|
No. of Cylinders |
6 Cylinders in Line |
|
Aspiration |
Turbocharged & Air to Air Aftercooled |
|
Governor Type |
Electric |
|
Max. Output Power |
242 kW |
|
Displacement |
8.9 L |
|
Starting Voltage |
24 V |
|
Bore x Stroke |
125 mm × 136 mm |
|
Lubrication Oil Capacity |
36 L |
Alternator Specification
|
Brand |
Mecc Alte |
|
Model |
ECO38-1L4A |
|
Rated Output |
250kVA |
|
Frequency |
50 Hz |
|
Altitude |
≤1000 m |
|
Insulation Class |
H |
|
Voltage Regulation |
AVR |
|
Protection Grade |
IP23 |
|
Optional Alternators |
Leroy Somer, Marathon, Stamford |
Control Panel Specification
|
Controller Brand |
Smartgen |
|
Controller Model |
HGM6120N |
|
Breaker Brand |
Delixi |
|
Breaker Capacity |
400 A |
|
Battery Charger |
Supplied |
|
Emergency Stop Button |
Supplied |
|
Automatic Mains Fail (AMF) |
Supplied |
|
Protection Features |
High Temperature, Low Oil Pressure, Over/Under Speed, Overload, Start/Stop Fail, Under/Over Voltage |
|
Optional Controllers |
Deepsea, Smartgen, ComAp |
