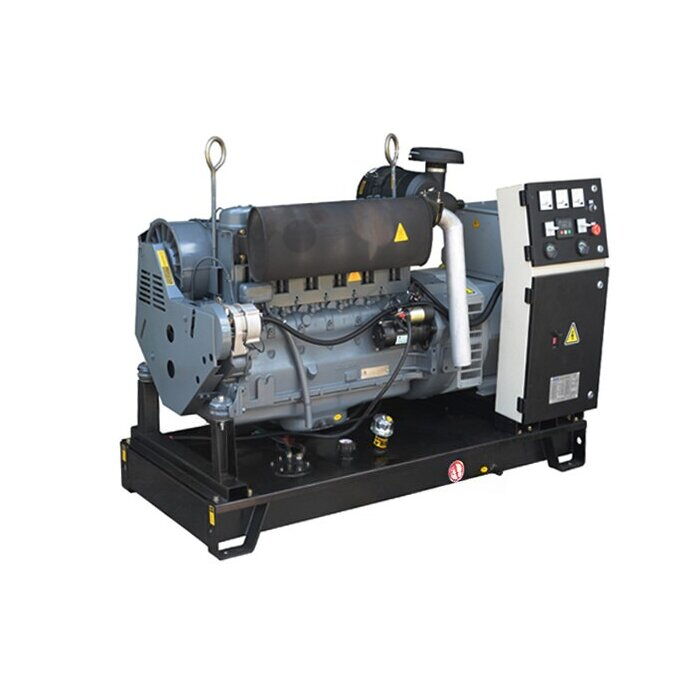

26kW 33kVA Diesel Generator Set, Deutz F4L912D, 50 Hz, 54 A
Key Specifications / Features
- Model No.: CGS-20250322-DGS-03
- Hits: 20
- Categories: Diesel Generator Sets
Detail Information
Product Name: 26kW 33kVA Deutz Diesel Generator Set
Fuel Type: Diesel
Frequency: 50 Hz
Engine: Deutz F4L912D
Alternator: Brushless Alternator
Prime Power: 26kW, 33kVA
Standby Power: 29kW, 36kVA
Output Voltage: 400/230 V
Rated Current: 54 A
Oil Consumption: 0.056 L/h
Dimensions: 1500 * 750 * 1050 mm
Weight: 680 kg
Engine Specifications
Brand | Deutz |
Model | F4L912D |
No. of Cylinders | 4 (In-line) |
Bore | 100 mm |
Stroke | 120 mm |
Displacement | 3.77 L |
Compressed Air Flow | 3.1 m³/min |
Exhaust Gas Flow | 5.1 m³/min |
Exhaust Gas Temperature | N.A. |
Lubrication Oil Capacity | N.A. |
Starting Voltage | 24 V |
Max. Output Power | 35 kW |
Alternator Features
Brand Options | Genuine Stamford, Leroy Somer, Marathon, and ENGGA alternators |
Design | Brushless, 4 poles, rotating magnet |
Enclosure Standard | IP21-23 (NEMA1) for industrial alternators |
Insulation System | H-Class insulation |
Voltage Regulation | AVR self-regulated, voltage regulation rate: ±1% |
Installation & Maintenance | Easy access to terminals, rotating diodes, and coupling bolts |
Adaptability | Wide range of flange adaptors and single-bearing disc coupling |
Compliance | Meets VDE0875-N and ISO8528 radio interference standards |
Environmental Protection | Moisture-proof, sand-proof, dustproof, salt-proof, and vibration-proof |
Controller Specifications
Controller Model | ComAp AMF20 |
Breaker | Good quality MCCB breaker mounted |
Battery Charger | 12V DC electric start system |
Emergency Stop Button | External recessed emergency stop button for extra safety |
Automatic Mains Fail (AMF) | Supplied |
Fuel Level Indicator | Integrated on base frame |
Automatic Transfer Switch (ATS) | Optional |
Mains Monitor | Supplied with AMF function |
Functions | Intelligent control with auto starting system, protection functions including high temperature, over speed, low speed, low oil pressure, over voltage, over current, undervoltage |
