Key Specifications / Features
- Model no.: CGS-20250324-DGS-01
- Hits: 5
- Categories: Diesel Generator Sets
Detail Information

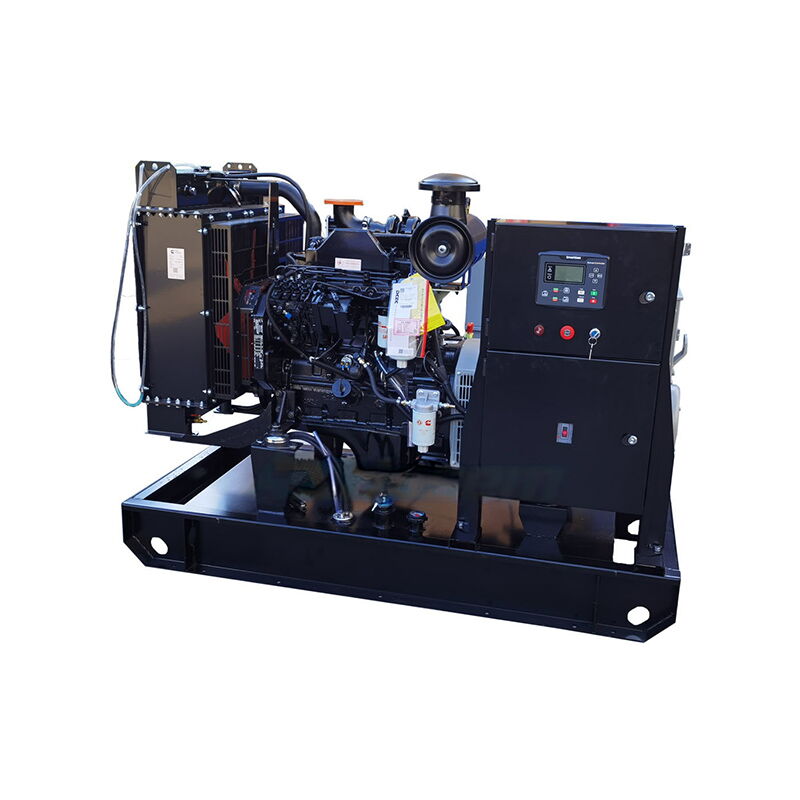

Product Name: 48kW 60kVA Cummins Diesel Generator Set
Fuel Type: Diesel
Engine: Cummins 4BTA3.9-G2
Alternator: Stamford UCI224D
Rated Power: 48kW, 60kVA
Max Power: 52.8kW, 66kVA
Frequency: 50 Hz
Rated Voltage: 400/230 V
Rated Current: 86.6 A
Fuel Tank Capacity: 800 L
Dimensions: 1870 * 830 * 1450 mm
Weight: 870 kg
Battery: Two Maintenance-Free Batteries
Engine Specification
|
Engine Brand |
Cummins |
|
Engine Model |
4BTA3.9-G2 |
|
No. of Cylinders |
4 cylinders, in-line |
|
Aspiration |
Turbocharged & Aftercooled |
|
Governor |
Electric |
|
Max. Output Power |
64kW |
|
Displacement |
3.9 L |
|
Compression Ratio |
17.3:1 |
|
Starting Voltage |
24 V |
|
Bore × Stroke |
102 mm × 120 mm |
|
Lubrication Oil Capacity |
11 L |
|
Intake Air Flow |
4.13 m³/min |
|
Fuel Consumption at 100% Load |
15 L/h |
Alternator Specification
|
Alternator Manufacturer |
Stamford |
|
Alternator Model |
UCI224D |
|
Rated Output |
60kVA |
|
Frequency |
50 Hz |
|
Altitude |
≤1000 m |
|
Insulation Class |
H |
|
Phase |
1 Phase |
|
Working Temperature (without power decrease) |
≤40°C |
|
Working Altitude (without power decrease) |
≤1000 m |
|
Automatic Voltage Regulation |
AVR Model SX440 |
|
Protection Grade |
IP23 |
|
Optional Alternator Brands |
Leroy Somer, Marathon, Mecc Alte |
Control Panel Specification
|
Controller Brand |
Deepsea |
|
Controller Model |
DSE7320 |
|
Breaker Brand |
Delixi |
|
Breaker Capacity |
400 A |
|
Battery Charger |
Smartgen Model BAC06A |
|
Emergency Stop Button |
Supplied |
|
Automatic Mains Fail (AMF) |
Supplied |
|
Fuel Level Monitoring |
Supplied |
|
Automatic Transfer Switch (ATS) |
Optional |
|
Full Protection Features |
Start-up fault (generator shutdown) High coolant temperature (alarm & shutdown) Low oil pressure (alarm & shutdown) Low fuel level (alarm) Low cooling fluid level (optional alarm) Overload (alarm & shutdown) Battery voltage high (alarm) |
|
Optional Controllers |
Deepsea, Smartgen, ComAp controllers |
