Key Specifications / Features
- Model no.: CGS-20250326-SGS-03
- Hits: 2
- Categories: Silent Generator Set
Detail Information

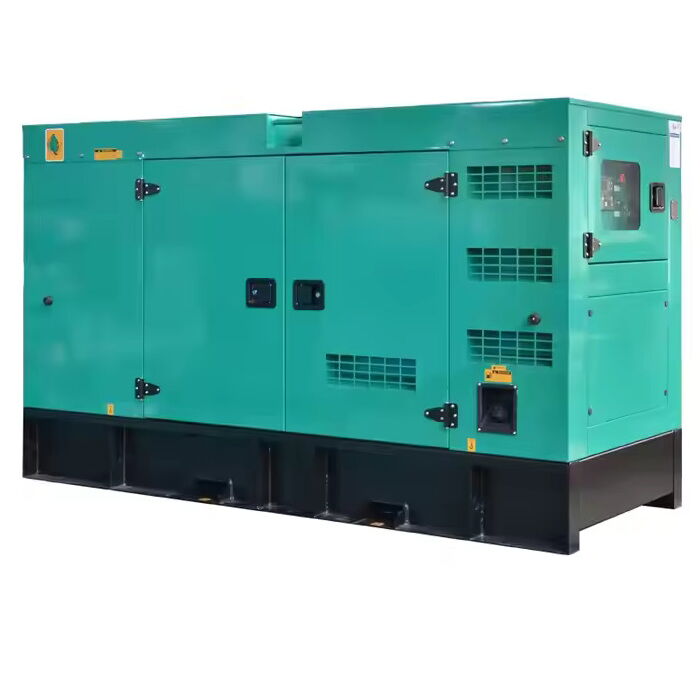

Product Name: 310kW 388kVA Yuchai Diesel Generator Set, Soundproof Generator
Fuel Type: Diesel
Engine: Yuchai YC6T660L-D21
Alternator: Stamford SG354C
Prime Power: 310kW, 388kVA
Standby Power: 341kW, 426kVA
Frequency: 60 Hz
Output Voltage: 240 V
Oil Consumption: 0.042 L/H
Noise Level: 70 dBA at 7m Away
Dimensions (L×W×H): 3900 * 1300 * 1900 mm
Weight: 2780 kg
Engine Specification (YC6T660L-D21 Diesel Engine)
|
Engine Brand |
Yuchai |
|
Engine Model |
YC6T660L-D21 |
|
No. of Cylinders |
6 Cylinders in Line |
|
Bore x Stroke |
145 mm × 165 mm |
|
Displacement |
19.35 L |
|
Aspiration |
Turbocharged & Aftercooled |
|
Rated Speed |
1800 RPM. |
|
Governor Type |
Electric |
|
Lubrication Oil Capacity |
52 L |
|
Starting Voltage |
24 V |
|
Max. Engine Output Power |
485 kW |
Alternator Specification
|
Alternator Brand |
Stamford |
|
Alternator Model |
SG354C |
|
Rated Output |
387kVA |
|
Frequency |
60 Hz |
|
Altitude |
≤1000 m |
|
Insulation Class |
H |
|
Protection Grade |
IP23 |
|
Optional Alternators |
Leroy Somer, Marathon, Mecc Alte, Chinese Brushless Alternators |
Control Panel Specification
|
Controller Model |
SmartGen HGM6110 |
|
Display |
132x64 LCD with backlight, supports multiple languages (Chinese, English, Spanish, Russian, Portuguese, Turkish, Polish, French) |
|
Operation Panel |
Silicon Rubber |
|
Digital Input |
5 |
|
Relay Output |
6 |
|
Analogue Input |
3 |
|
AC System Compatibility |
1P2W/2P3W/3P3W/3P4W |
|
Alternator Frequency |
50/60Hz |
|
kW/Amp Detecting & Display |
Yes |
|
Programmable Interface |
USB, RS485 |
|
RTC & Event Log |
Yes |
|
Scheduled Start Genset |
Yes |
|
Maintenance |
Yes |
|
DC Supply |
DC(8-35)V |
