Key Specifications / Features
- Model no.: CGS-20250324-SGS-02
- Hits: 5
- Categories: Silent Generator Set
Detail Information

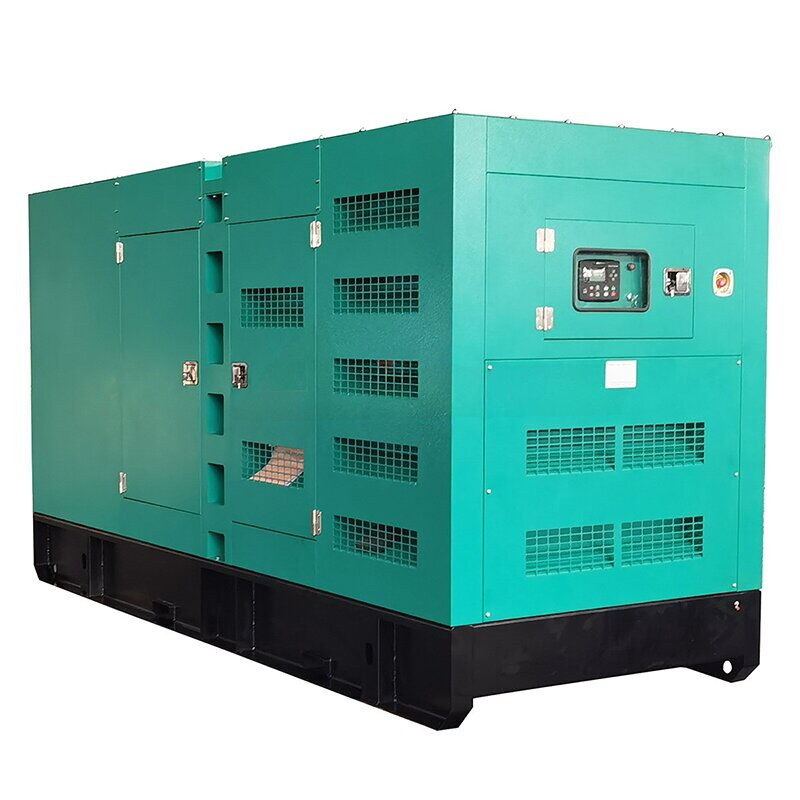

Product Name: 320kW 400kVA Perkins Silent Diesel Generator Set, Soundproof Canopy
Fuel Type: Diesel
Engine: Perkins 2206C-E13TAG3
Alternator: Stamford HCI444F
Rated Power: 320kW, 400kVA
Max. Power: 360kW, 450kVA
Frequency: 50 Hz
Rated Voltage: 400/230 V
Rated Current: 577.4 A
Fuel Tank Capacity: 600 L
Noise Level: 70 dBA At 7M
Battery for Starting: Two Free Maintenance Batteries
Dimensions: 4350 * 1450 * 2180 mm
Weight: 5260 kg
Engine Specification
|
Brand |
Perkins |
|
Model |
2206C-E13TAG3 |
|
Number of Cylinders |
6 Cylinders, In-Line |
|
Aspiration |
Turbocharged and Air-to-Air Aftercooled |
|
Governor |
Electric |
|
Maximum Output Power |
413kW |
|
Displacement |
12.5 L |
|
Compression Ratio |
16.3:1 |
|
Starting Voltage |
24 V |
|
Bore × Stroke |
130 mm × 157 mm |
|
Lubrication Oil Capacity |
38 L |
|
Intake Air Flow |
12.5 m³/min |
|
Fuel Consumption at 100% Load |
85 L/H |
Alternator Specification
|
Brand |
Stamford |
|
Model |
HCI444F |
|
Rated Output |
400kVA |
|
Frequency |
50 Hz |
|
Phase |
3 Phase |
|
Altitude |
≤1000 m |
|
Insulation Class |
H |
|
Automatic Voltage Regulation |
SX440 |
|
Protection Grade |
IP23 |
|
Working Temperature (No Power Decrease) |
≤40°C |
|
Working Altitude (No Power Decrease) |
≤1000 m |
|
Optional Alternators |
Leroy Somer, Marathon, Mecc Alte |
Control Panel Specification
|
Controller Brand |
Smartgen |
|
Controller Model |
HGM6120N |
|
Breaker Brand |
Delixi |
|
Breaker Capacity |
630 A |
|
Battery Charger |
Smartgen Model BAC06A |
|
Emergency Stop Button |
Supplied |
|
Automatic Mains Fail (AMF) |
Supplied |
|
Fuel Level Monitoring |
Supplied |
|
Automatic Transfer Switch (ATS) |
Optional |
|
Full Protection Features |
Start-up fault, High coolant temperature, Low oil pressure, Low fuel level, Low cooling fluid level (optional), Overload, Battery voltage high (alarm & shutdown) |
|
Optional Controllers |
Deepsea, Smartgen, ComAp |
