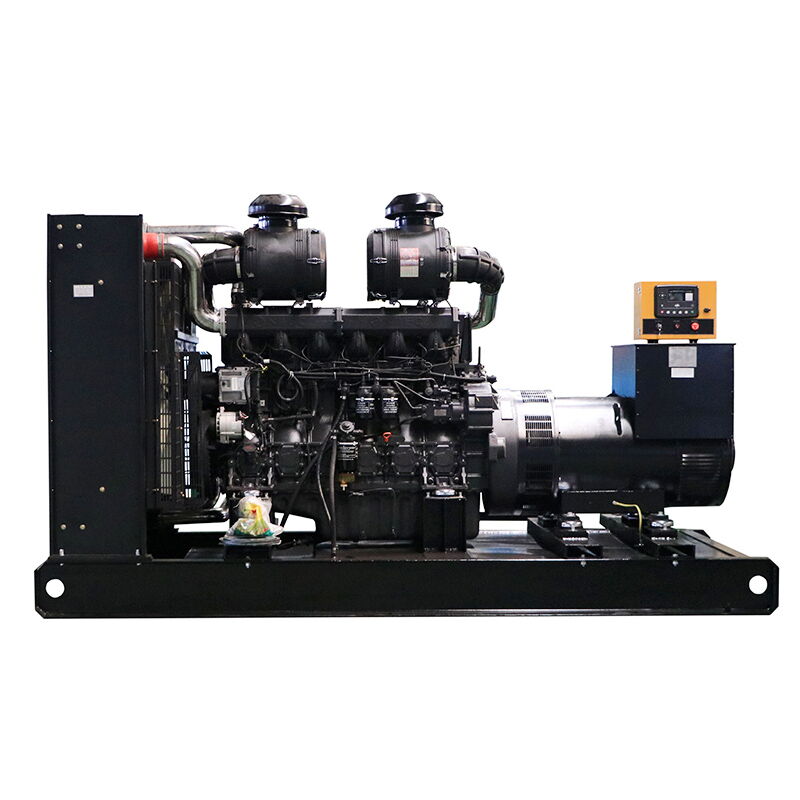

360kW Diesel Generator Set, 50 Hz, SDEC SC25G610D, Open-Type
Key Specifications / Features
- Model No.: CGS-20250326-DGS-03
- Hits: 13
- Categories: Diesel Generator Sets
Detail Information
Product Name: 360kW 450kVA SDEC Diesel Generator Set, Open-type Generator
Fuel Type: Diesel
Engine: SDEC SC25G610D
Alternator: Stamford SG354C
Rated Power: 360kW, 450kVA
Max. Power: 400kW, 500kVA
Frequency: 50 Hz
Rated Voltage: 400/230 V
Rated Current: 649.5 A
Fuel Tank Capacity: 400 L
Battery: Two 200Ah Maintenance-Free Batteries
Dimensions (L×W×H): 3475 * 1250 * 1920 mm
Weight: 4800 kg
Engine Specification (SC25G610D Diesel Engine)
Engine Manufacturer | Shanghai Diesel Engine Co., Ltd. (SDEC) |
Engine Model | SC25G610D |
No. of Cylinders | 12 Cylinders (V-Type) |
Aspiration | Turbocharged & Aftercooled |
Governor Type | Electric |
Max. Engine Output Power | 505 kW |
Displacement | 25.8 L |
Compression Ratio | 16:1 |
Starting Voltage | 24 V |
Bore x Stroke | 135 mm × 150 mm |
Lubrication Oil Capacity | 65 L |
Intake Air Flow | N.A. |
Fuel Consumption at 100% Load | 103.6 L/H |
Alternator Specification (Stamford SG354C)
Model | Stamford SG354C |
Rated Power | 500kVA |
Rated Voltage | 415V (for 60 Hz) |
Rated Current | 722A |
Frequency | 60 Hz |
Power Factor | 0.8 |
Poles | 4-pole |
Controller Specification
Model | SmartGen HGM6110 |
Display | 132x64 LCD with backlight, supports multiple languages |
Operating Voltage | DC 8.0V to 35.0V |
Power Consumption | <3W (Standby mode: ≤2W) |
AC System Compatibility | 1P2W/2P3W/3P3W/3P4W |
AC Alternator Frequency | 50/60Hz |
Relay Outputs | Multiple relay outputs for start, fuel, and auxiliary functions |
