Key Specifications / Features
- Model no.: CGS-20250327-DGS-01
- Hits: 10
- Categories: Diesel Generator Sets
Detail Information

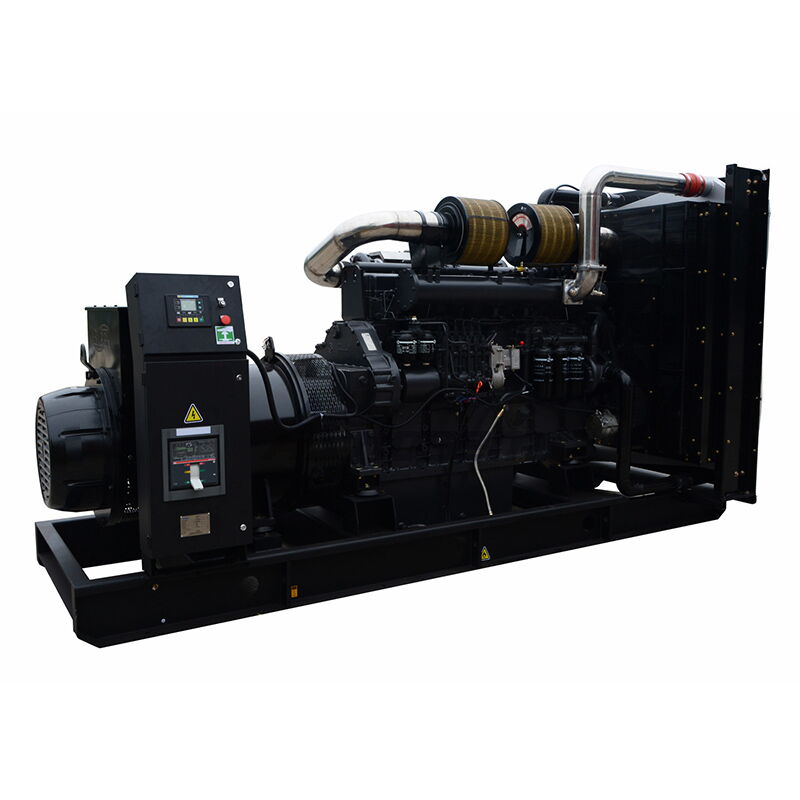

Product Name: 728kW 910kVA SDEC Diesel Generator Set, Open-type Genset
Fuel Type: Diesel
Engine: SDEC SC33W1150D2
Alternator: Brushless Alternator
Frequency: 50 Hz
Rated Power: 728kW, 910kVA
Max. Power: 800kW, 1000kVA
Rated Voltage: 415/240 V
Rated Current: 1266 A
Fuel Tank Capacity: 1000 L
Dimension: 4228 * 1740 * 2341 mm
Weight: 6050 kg
Battery: Four 150A Maintenance-Free Battery
Engine Specifications
|
Engine Manufacturer |
Shanghai Diesel Engine Co., Ltd. |
|
Engine Brand |
SDEC |
|
Engine Model |
SC33W1150D2 |
|
No. of Cylinders |
12 Cylinder V-type |
|
Aspiration |
Turbocharged and Air to Air Aftercooled |
|
Governor |
Electric |
|
Max. Output Power |
860kW |
|
Displacement |
32.8 L |
|
Starting Voltage |
24 V |
|
Bore |
180 mm |
|
Stroke |
215 mm |
|
Lubrication Oil Capacity |
75 L |
|
Compression Ratio |
15:1 |
|
Fuel Tank Capacity |
1000 L |
|
Fuel Consumption at 100% Load |
189.5 L/H |
Alternator Specifications
|
Rate Output |
910kVA |
|
Frequency |
50 Hz |
|
Current |
1266.0 A |
|
Insulation |
Class H |
|
Voltage Regulation |
MX321 |
|
Protection Grade |
IP23 |
|
Working Temperature without Output Decrease |
≤1000m |
|
Phase |
3 Phase |
|
Temperature Rise |
125°C |
|
Optional Alternators |
Leroy Somer, Marathon, Mecc Alte |
Control Panel Specifications
|
Controller Brand |
Deepsea |
|
Controller Model |
DSE7320 |
|
Breaker Brand |
Delixi |
|
Breaker Capacity |
1600 A |
|
Battery Charger |
Smartgen Model BAC06A |
|
Emergency Stop Button |
Yes |
|
Automatic Mains Failure (AMF) |
Yes |
|
Fuel Level Monitoring |
Yes |
|
Automatic Transfer Switch (ATS) |
Optional |
|
Mains Monitor |
Yes (with AMF Function) |
|
Optional Controllers |
Deepsea, Smartgen, ComAp models available |
Control Panel Protection & Alarms
- Start-up Fault (Shutdown)
- High Coolant Temperature (Alarm & Shutdown)
- Low Oil Pressure (Alarm & Shutdown)
- Low Fuel Level (Alarm)
- Low Cooling Fluid Level (Optional Alarm)
- Overload (Alarm & Shutdown)
- Battery Voltage High (Alarm)
