Key Specifications / Features
- Model no.: CGS-20250324-DGS-04
- Hits: 2
- Categories: Diesel Generator Sets
Detail Information

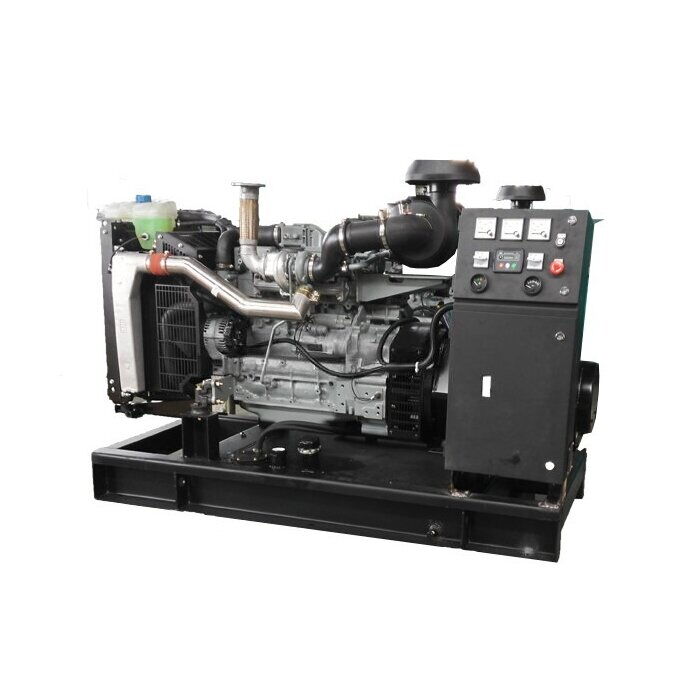

Product Name: 48kW 60kVA Deutz Diesel Generator Set, Open Type
Fuel Type: Diesel
Engine: Deutz BF4M2012
Alternator: Stamford UCI224E
Prime Power: 48kW, 60kVA
Standby Power: 53kW, 66kVA
Frequency: 50 Hz
Output Voltage: 400/230 V
Rated Current: 86.6 A
Oil Consumption: 0.022 L/H
Dimensions: 1950 * 820 * 1250 mm
Weight: 1020 kg
Engine Specification
|
Brand |
Deutz |
|
Model |
BF4M2012 |
|
Number of Cylinders |
4 Cylinders, In-Line |
|
Bore × Stroke |
101 mm × 126 mm |
|
Displacement |
1.04 L |
|
Exhaust Gas Temperature |
610°C |
|
Lubrication Oil Capacity |
8.5 L |
|
Cooling Water Capacity |
15.9 L |
|
Starting Voltage |
12 V |
|
Maximum Output Power |
58 kW |
Alternator Specification
|
Brand |
Stamford |
|
Model |
UCI224E |
|
Rated Output |
60kVA |
|
Frequency |
50 Hz |
|
Altitude |
≤1000 m |
|
Insulation Class |
H |
|
Protection Grade |
IP23 |
|
Optional Alternators |
Leroy Somer, Marathon, Mecc Alte, and other Chinese brushless alternators |
Control Panel Specification
|
Power Supply |
12V DC (Battery supply) |
|
Display |
LCD display |
|
Inputs |
11 configurable inputs |
|
Outputs |
8 configurable outputs |
|
Fuel Control Output |
15 A DC at supply voltage |
|
Auxiliary Outputs |
2 A DC at supply voltage |
|
Voltage Range |
15 V to 333 VAC (L-N) |
|
Frequency Range |
3.5 HZ to 75 HZ |
|
Protection |
Over-speed shutdown, low oil pressure alarm and shutdown, high coolant temperature alarm and shutdown, low coolant level warning, high and low battery voltage warning, weak battery warning, dead battery shutdown, fail to start shutdown, fail to crank shutdown, redundant start disconnect, cranking lockout, sensor failure indication |
|
Monitoring |
Voltage, current, frequency, kW, kVA, start attempts, running hours, kW hours, fault history |
|
Control Functions |
Auto start, configurable timers and alarms, flexible sensor inputs |
