Key Specifications / Features
- Model no.: CGS-20250324-DGS-03
- Hits: 4
- Categories: Diesel Generator Sets
Detail Information

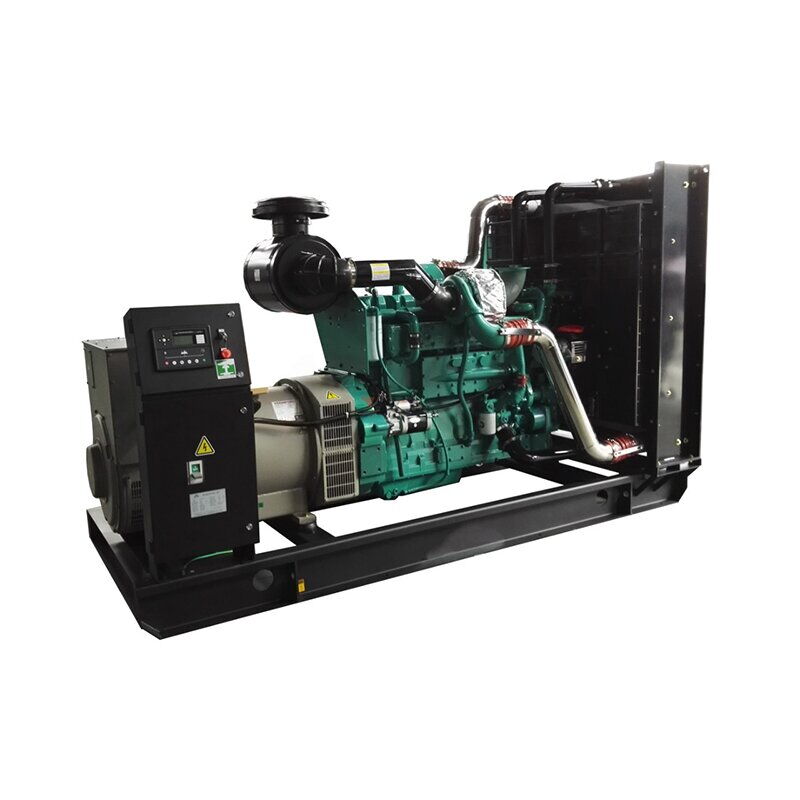

Product Name: 220kW 275kVA Cummins Diesel Generator Set
Fuel Type: Diesel
Engine: Cummins 6LTAA8.9-G2
Alternator: Stamford UCDI274J
Prime Power: 220kW, 275kVA
Standby Power: 240kW, 300kVA
Frequency: 60 Hz
Speed: 1800 RPM
Output Voltage: 240 V
Rated Current: 661 A
Oil Consumption: 0.1867 L/h
Engine Specification
|
Manufacturer |
Cummins |
|
Model |
6LTAA8.9-G2 |
|
Rated Output |
240kW/265kW |
|
Number of Cylinders & Arrangement |
4-Cycle, In-line, 6 Cylinder Diesel |
|
Aspiration Type |
Turbocharged, Air-Air Aftercooled |
|
Bore × Stroke |
114 mm × 145 mm |
|
Compression Ratio |
16.0:1 |
|
Cooling System |
Water-Cooled |
|
Engine Speed / Frequency |
1800 RPM / 60 Hz |
|
Coolant Capacity |
41 L |
|
Starting System |
Electric, 24 V DC |
|
Displacement |
8.9 L |
|
Lubricant System Capacity |
27.6 L |
|
Battery Voltage / Capacity |
24 V DC |
|
Governor |
Electronic |
|
Air Filter |
Dry |
Alternator Specification
|
Alternator Brand |
Stamford |
|
Alternator Model |
UCDI274J |
|
Rated Output |
300kVA |
|
Frequency |
60 Hz |
|
Altitude |
≤1000 m |
|
Insulation Class |
H |
|
Protection Grade |
IP23 |
|
Optional Alternator Brands |
Leroy Somer, Marathon, Mecc Alte, and Chinese Brushless Alternators |
Control Panel Specification
|
Brand & Model |
Deepsea DSE7320 |
|
Type |
Auto Mains (Utility) Failure Control Module |
|
Application |
Suitable for single diesel or gas generator set applications |
|
Processor |
Dual Core main processor with extended memory |
|
Communication Ports |
USB, RS232, RS485 |
|
Voltage Range |
15 V to 415 V AC (Ph to N), 25 V to 719 V AC (Ph to Ph) |
|
Frequency Range |
3.5 Hz to 75 Hz |
|
Configurable Power-Up Mode |
Stop / Manual / Auto |
|
MPU Fail Delay |
Configurable alarm delay if MPU failure is detected |
|
Controller Brand & Model |
Deepsea DSE7320 |
