Key Specifications / Features
- Model no.: CGS-20250322-SGS-03
- Hits: 5
- Categories: Silent Generator Set
Detail Information

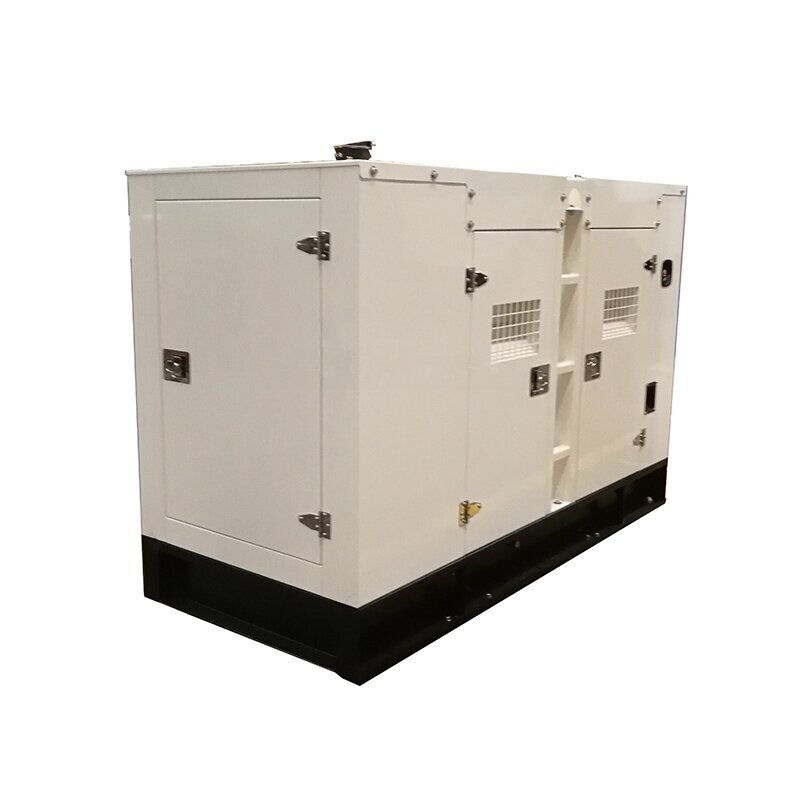

Product Name: 48kW 60kVA Perkins Soundproof Diesel Generator Set, 70 dBA @ 7M
Fuel Type: Diesel
Engine: Perkins 1103A-33TG2
Alternator: Stamford UCI224E
Prime Power: 48kW, 60kVA
Standby Power: 53kW, 66kVA
Frequency: 50 Hz
Output Voltage: 400/230 V
Rated Current: 86.4 A
Oil Consumption: 0.49 L/h
Noise Level: 70 dBA at 7m
Dimensions: 2250 * 900 * 1150 mm
Weight: 1426 kg
Engine Specifications (Perkins Diesel Engine)
|
Brand |
Perkins |
|
Model |
1103A-33TG2 |
|
No. of Cylinders |
3 (In-line) |
|
Bore |
105 mm |
|
Stroke |
127 mm |
|
Displacement |
3.3 L |
|
Cooling Fan Air Flow |
125 m³/min |
|
Compressed Air Flow |
3.8 m³/min |
|
Exhaust Gas Flow |
10.1 m³/min |
|
Exhaust Gas Temperature |
557°C |
|
Lubrication Oil Capacity |
7.8 L |
|
Cooling Water Capacity |
10.2 L |
|
Starting Voltage |
12 V |
|
Max. Output Power |
60.5 kW |
Alternator Specifications
|
Brand |
Stamford |
|
Model |
UCI224E |
|
Rated Output |
60kVA |
|
Frequency |
50 Hz |
|
Altitude Limit |
≤1000 m |
|
Insulation Class |
H |
|
Protection Grade |
IP23 |
|
Optional Alternators |
Leroy Somer, Marathon, Mecc Alte, Chinese Brushless Alternators |
Control Panel Specifications
|
Brand |
Deepsea |
|
Model |
DSE6010 MKII |
|
Type |
Auto Start Control Module |
|
Application |
Single diesel and gas gen-sets |
|
Support |
0-10 V & 4-20 mA analog inputs |
|
Configuration |
PC-based configuration using 60xx series software |
|
Monitoring |
Wide range of operating and monitoring features |
|
Compatibility |
Compatible with single gen-set applications |
