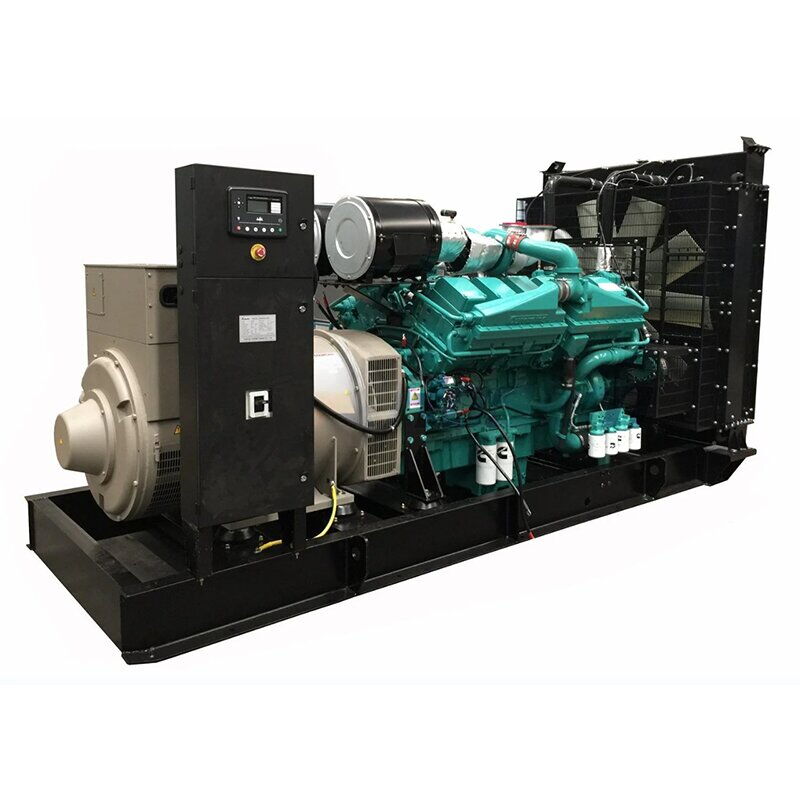

728kW Diesel Generator Set, Cummins KTA38-G2, 60Hz, 220/127V
Key Specifications / Features
- Model No.: CGS-20250319-DGS-03
- Hits: 8
- Categories: Diesel Generator Sets
Detail Information
Product Name: 728kW Cummins Diesel Generator Set for Sale
Fuel Type: Diesel
Engine: Cummins KTA38-G2
Alternator: Stamford LVI634B
Frequency: 60 Hz
Rated Power: 728kW, 910kVA
Max. Power: 800kW, 1000kVA
Rated Voltage: 220/127 V
Rated Current: 2388.2 A
Dimension: 4250 * 1850 * 2400 mm
Weight: 9500 kg
Engine Specifications
Engine Brand | Cummins |
Engine Model | KTA38-G2 |
No. of Cylinders | 12 Cylinder V-Type |
Aspiration | Turbocharged and Air-to-Air Aftercooled |
Governor | Electric |
Engine Max. Output Power | 895 kW |
Displacement | 37.8 L |
Starting Voltage | 24 V |
Bore | 159 mm |
Stroke | 159 mm |
Lubrication Oil Capacity | 135 L |
Alternator Specifications
Alternator Brand | Stamford |
Alternator Model | LVI634B |
Rated Output | 937 kVA |
Frequency | 50 Hz |
Altitude | ≤1000 m |
Insulation Class | H |
Voltage Regulation | AVR Model MX321 |
Protection Grade | IP23 |
Alternator Options | Leroy Somer, Marathon, Mecc Alte Brushless Alternators |
Control Panel Specifications
Controller Brand | Deepsea |
Controller Model | DSE7320 |
Breaker Brand | Delixi |
Breaker Capacity | 2500 A |
Battery Charger | Supplied |
Emergency Stop Button | Supplied |
AMF (Automatic Mains Fail) | Supplied |
Optional Controllers | Deepsea, Smartgen, ComAp |
Generator Protections
The control panel provides full protection with alarm and shutdown functions, including:
- High Temperature
- Low Oil Pressure
- Over / Under Speed
- Overload
- Start / Stop Failure
- Under / Over Voltage
