1200kW 1500kVA Diesel Generator Set, Cummins KTA50-GS8, 50Hz
Key Specifications / Features
- Model No.: CGS-20250319-DGS-02
- Hits: 9
- Categories: Diesel Generator Sets
Detail Information

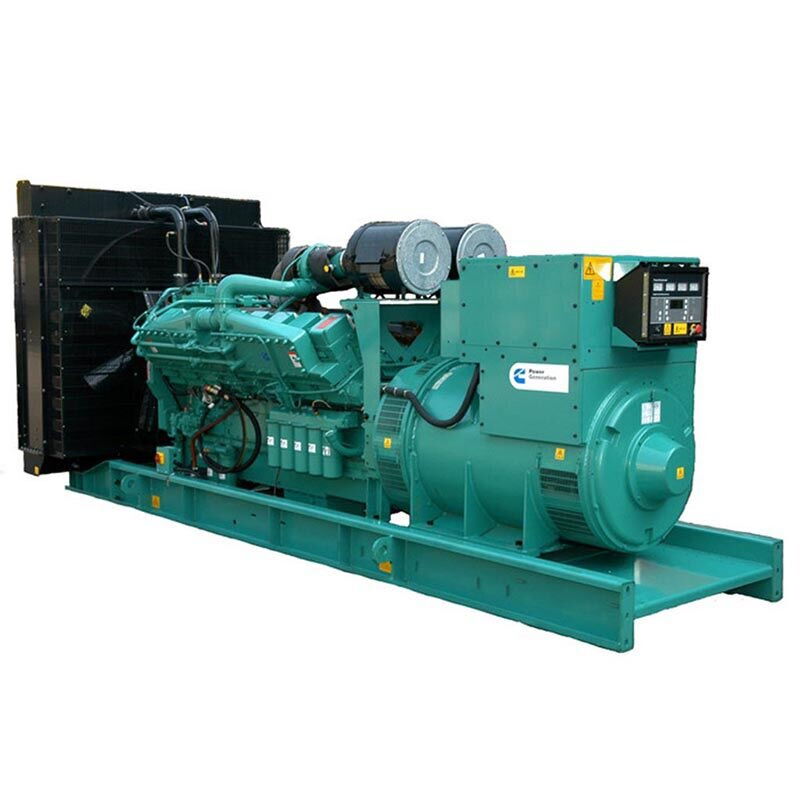

Product Name: 1200kW 1500kVA Cummins Diesel Generator Set in Stock
Fuel Type: Diesel
Engine: Cummins KTA50-GS8
Alternator: Stamford PI734C
Rated Power: 1200kW, 1500kVA
Max. Power: 1320kW, 1650kVA
Frequency: 50 Hz
Rated Voltage: 400/230 V
Rated Current: 2165.1 A
Controller: Deepsea DSE7320
Dimension: 5800 * 2090 * 2400 mm
Weight: 10,800 kg
Engine Specifications
Engine Brand | Cummins |
Engine Model | KTA50-GS8 |
No. of Cylinders | 16 Cylinder V-Type |
Aspiration | Turbocharged & Aftercooled |
Governor | Electric |
Engine Max. Output Power | 1429 kW |
Displacement | 50.3 L |
Starting Voltage | 24 V |
Bore | 159 mm |
Stroke | 159 mm |
Lubrication Oil Capacity | 177 L |
Alternator Specifications
Alternator Brand | Stamford |
Alternator Model | PI734C |
Rated Output | 1550kVA |
Frequency | 50 Hz |
Altitude | ≤1000 m |
Insulation Class | H |
Voltage Regulation | AVR Model MX321 |
Protection Grade | IP23 |
Alternator Options | Leroy Somer, Marathon, Mecc Alte Brushless Alternators |
Control Panel Specifications
Controller Brand | Deepsea |
Controller Model | DSE7320 |
Breaker Brand | Delixi |
Breaker Capacity | 2500 A |
Battery Charger | Supplied |
Emergency Stop Button | Supplied |
AMF (Automatic Mains Fail) | Supplied |
Optional Controllers | Deepsea, Smartgen, ComAp |
Generator Protections
The control panel provides full protection with alarm and shutdown functions, including:
- High Temperature
- Low Oil Pressure
- Over/Under Speed
- Overload
- Start/Stop Failure
- Under/Over Voltage
