Key Specifications / Features
- Model no.: CGS-20250320-SGS-03
- Hits: 0
- Categories: Silent Generator Set
Detail Information

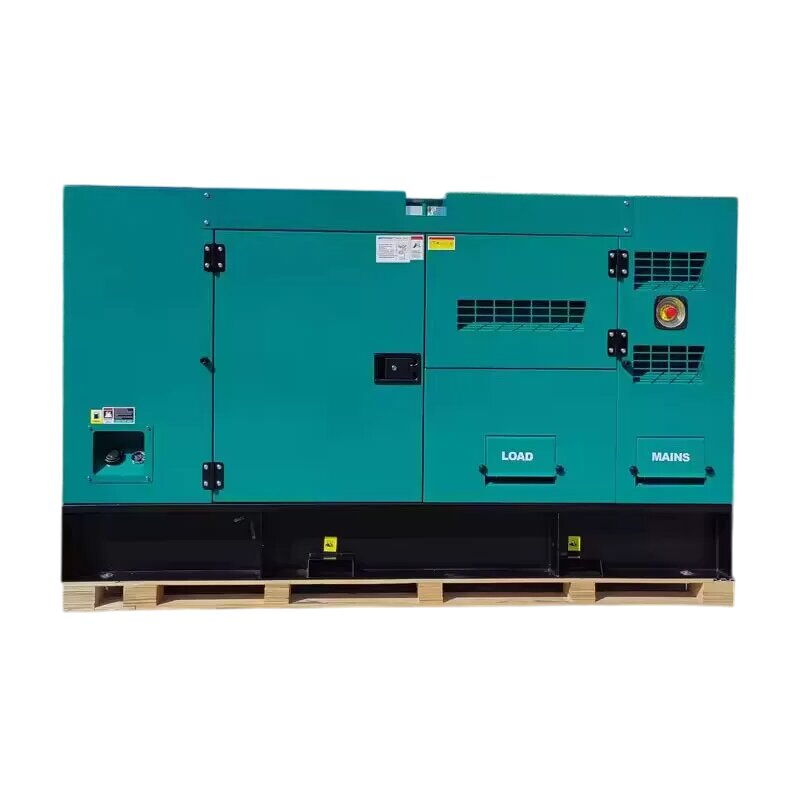

Product Name: 80kW Cummins Diesel Generator Set, Silent Type
Type: Silent Diesel Generator Set
Fuel Type: Diesel
Engine: Cummins 4BTAA3.9-G3
Prime Power: 80kW, 100kVA
Standby Power: 88kW, 110kVA
Rated Voltage: 230V/400V (Customizable)
Rated Current: 122 A
Frequency: 50 Hz
Rated Speed: 1500 RPM
Power Factor: 0.8
Power Supply Mode: 3-Phase, 4-Wire
Starting Method: 24V DC
Noise Level: 70 dBA at 7M
Engine Specifications
|
Engine Brand |
Cummins |
|
Engine Model |
4BTAA3.9-G3 |
|
Governor Type |
Electric |
|
Rated Power |
96kW |
|
Cylinder Configuration |
4-Cylinder Inline |
|
Fuel Consumption |
13.1 L/h |
|
Bore × Stroke |
102 mm × 120 mm |
|
Compression Ratio |
18.1:1 |
|
Displacement |
3.9 L |
|
Cooling Method |
Water-Cooled |
|
Fuel Type |
Diesel |
|
Engine Weight |
350 kg (approx.) |
|
Emission Standard |
Euro III (or relevant standard) |
Alternator Specifications
|
Optional Brands |
Stamford/Leroy Somer/Mecc |
|
Excitation Type |
Brushless, Self-Excited |
|
Power Factor |
0.8 |
|
Voltage Adjustment Range |
≥ 5% |
|
Insulation Class |
H |
|
Protection Class |
IP23 |
|
Nominal Voltage |
400V (3-phase) |
|
Frequency |
50 Hz |
|
Output Power |
120kVA (approx.) |
|
Alternator Weight |
150 kg (approx.) |
Control Panel Specifications
|
Model Options |
Deepsea / SmartGen / ComAp |
|
Functions |
AMF (Auto Mains Failure) Synchronizing ATS (Automatic Transfer Switch) GSM Monitoring |
|
Display Type |
LCD |
|
Communication Interfaces |
RS-485 / RS-232 / Ethernet |
|
Operating Temperature Range |
-20°C to +50°C |
|
Relative Humidity |
95% (non-condensing) |
Diesel Generator Standard Configuration
- Canopy: 2.5mm thick steel (galvanized option available), smooth & unsmooth surfaces, customizable designs.
- Fuel Tank: Grounded with forklift holes, runtime of 8–10 hours or longer.
- Alternator: Stamford, Leroy Somer, Marathon, Meccalte, Hongfu available.
- Silent Foam: 5cm thick, high-density, soundproof, and fireproof.
- LED Light: Two LED lights inside for maintenance visibility.
- Controller: Digital control options from Deepsea (DSE), ComAp, SmartGen, Datakom.
- Governor: Electric or mechanical system.
- Battery: Maintenance-free for reliable performance.
