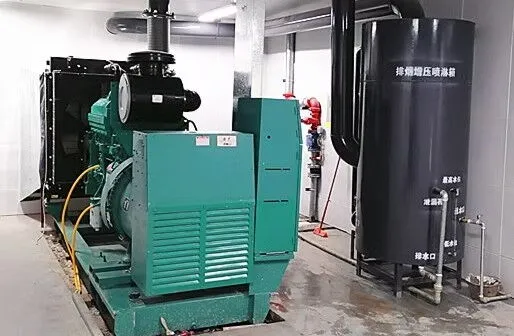

Design and Layout Requirements for Diesel Generator Room

Diesel generator sets are vital emergency power sources, widely used in critical facilities such as hospitals, data centers, and industrial enterprises. In the event of unstable power supply or sudden power outages, diesel generators can quickly start up and provide stable electricity, ensuring that key equipment and services are not interrupted. Therefore, the design of the generator room must adhere to strict standards and specifications to ensure the efficient operation and safety of the equipment. The design of the generator room involves more than just simple space planning; it includes considerations such as ventilation, exhaust systems, vibration isolation, fire safety, waterproofing, and safety management. This article will detail the key design elements and practical recommendations regarding generator room design, site selection, ventilation, exhaust, foundations, and the installation of fuel and gas pipelines.



The design of the diesel generator room must consider multiple factors. A well-designed room ensures efficient operation and safety while reducing maintenance difficulty and extending equipment life. The core requirements of the generator room design are to ensure a suitable working environment for the generator, convenient operating and maintenance space, and effective noise and vibration isolation.



The room space should be planned according to the actual size of the generator, ensuring that there is ample space for equipment placement and clear passageways, facilitating daily operations and maintenance. Adequate space should be reserved for the disassembly and maintenance of equipment to prevent overcrowded layouts that may hinder operational efficiency and generator maintenance. Additionally, emergency evacuation routes should be considered in the design to ensure personnel can evacuate safely in the shortest possible time during emergencies.



Diesel generators generate a certain level of noise during operation, which can affect the generator room and the surrounding environment. To reduce noise propagation, soundproof measures should be incorporated in the design. For example, soundproof materials can be installed on the walls and ceiling of the room, or mufflers can be added to the generator. Additionally, soundproof barriers around the room can help further minimize noise impact on the surrounding environment.



Diesel generators generate significant vibrations during operation, and effective vibration isolation measures are needed to prevent vibrations from affecting the stability of the generator and the surrounding building structures. The generator should be installed on specially designed vibration-isolation foundations to minimize vibration transmission, ensuring that the equipment operates without excessive wear or other failures caused by vibrations.



The site selection for the generator room is a crucial element of the design, directly impacting the generator's operating efficiency and service life. Several factors, such as environmental conditions, building structure, and equipment transportation, need to be considered during the selection process.



The generator room should ideally be located on the ground floor or at least in an area close to the outdoors. This facilitates the resolution of air intake, exhaust, and smoke venting issues and simplifies the installation and maintenance of the emergency power system. If the room must be located in a basement or other enclosed area, special attention should be paid to ventilation and exhaust design to ensure the generator operates normally.



Diesel generators produce significant heat during operation, and thus, the generator room must be equipped with an efficient ventilation system. The ventilation system should provide sufficient fresh air to ensure effective heat dissipation for the generator. The intake and exhaust openings should be reasonably designed, with the intake area being 1.8 times the area of the radiator, and the exhaust area should be 1.5 times the radiator area. The locations of the intake and exhaust openings should be arranged scientifically to ensure smooth airflow and avoid obstruction in the ducts.

If the room is located underground or in other closed spaces, an air exchange system may be installed to help remove exhaust gases from the room and bring in fresh air. The air exchange system should include high-efficiency air filters to prevent external pollutants from entering the room and affecting the generator's operation.



Diesel generators generate hot air during operation, which must be effectively vented. A dedicated hot air exhaust system should be installed to ensure that hot air is expelled quickly, preventing it from affecting the operation of other equipment in the room. The design should minimize the length of the hot air ducts and the number of bends to ensure smooth discharge of hot air.



Diesel generators produce exhaust gases during operation, which must be vented through exhaust pipes. The effectiveness of the exhaust system directly influences the generator's exhaust efficiency and overall performance. Improper exhaust pipe design can cause exhaust flow problems, increase exhaust backpressure, and reduce the generator's power output. Therefore, the following considerations are crucial during the exhaust system design:



Exhaust pipes should ideally be arranged in a straight line to minimize bends, as bends increase exhaust backpressure. If bends are necessary, their radius should be greater than 1.5 times the diameter of the pipe. The pipe diameter should be appropriately selected based on the generator's exhaust volume and the exhaust gas temperature to ensure smooth exhaust flow.



The exhaust pipes of diesel generators typically endure high temperatures. Therefore, the pipes should be made from materials with good high-temperature resistance, such as stainless steel or heat-resistant alloys. These materials can withstand the impact of high-temperature exhaust gases and ensure long-term stable operation. To prevent overheating of the exhaust pipes, insulation can be applied to the exterior of the pipes to reduce heat loss.



Exhaust pipes can generate significant noise, especially when exhaust pressure is high. To reduce noise pollution, mufflers can be installed in the exhaust system to lower noise levels during exhaust discharge. Additionally, the exhaust pipes should be located away from high-traffic areas to minimize noise impact on workers and surrounding residents.



The foundation design of the generator room is crucial for the long-term stable operation of the generator. The foundation is primarily responsible for supporting the weight of the generator, ensuring secure contact with the ground, and preventing damage caused by uneven settlement. Additionally, the foundation should have vibration-damping properties to avoid instability caused by vibrations during operation.



The vibrations from the generator are transmitted to the ground through the foundation, affecting the generator's stability and the structural integrity of the surrounding buildings. Therefore, the generator room foundation must be designed with vibration-damping features. These typically include elastic materials or damping pads that effectively absorb vibrations and reduce transmission. A vibration-damping foundation not only improves operational stability but also extends the generator's service life.



The strength and stability of the foundation directly impact the safety of the generator's operation. The foundation must be designed to bear the weight of the diesel generator and prevent uneven settlement. Concrete or reinforced concrete materials are commonly used for foundations due to their high compressive strength and stability, ensuring long-term stable operation.



The grounding system of a diesel generator is key to ensuring safe operation. The grounding system includes operational grounding, protective grounding, and electrostatic grounding. A well-designed grounding system can effectively prevent electrical hazards caused by faults in electrical equipment.



Operational grounding ensures proper grounding of the generator's neutral point. During operation, the generator's neutral point must be properly grounded to prevent electrical accidents caused by improper grounding. The neutral point grounding method can be selected based on the operating environment, commonly using zero-sequence grounding or direct grounding.



Protective grounding ensures that the electrical equipment's outer casing is grounded to prevent electric shock hazards from leakage. Protective grounding should use a low-resistance grounding method to ensure that the grounding resistance meets standard requirements. If the grounding resistance is too high, the electrical equipment's casing may become live, posing a risk to personnel.



Electrostatic grounding is designed to prevent fuel systems and related equipment from catching fire or exploding due to electrostatic accumulation. Fuel pipelines, tanks, and other related equipment should have grounding devices to ensure that static electricity is discharged in time.



The fuel system of a diesel generator is crucial to its stable operation. The design of the fuel system must ensure stable fuel supply while preventing fuel leaks, contamination, and wastage.



When installing fuel pipelines, avoid contact with the generator's hot zones or exhaust pipes. The pipelines should be made from corrosion-resistant, heat-resistant materials and should include proper insulation. The installation of fuel pipelines should be as simple and straight as possible, avoiding excessive bends to reduce pressure losses during fuel flow.



The fuel tank design should ensure sufficient fuel supply and include safety pressure-relief functions. The fuel tank should be made from fire-resistant materials and installed on a dedicated foundation to avoid contact with heat and fire sources. The fuel inside the tank should be regularly checked to prevent degradation from long-term storage, which could affect the generator's normal operation.



The safety and maintainability of the diesel generator are directly related to the reliability and service life of the equipment. The design of the generator room must provide sufficient space for safety facilities and maintenance work and ensure that operators can quickly identify and address any issues.



The generator room must be equipped with fire-fighting facilities, such as fire extinguishers, fire suppression systems, and emergency exits. Emergency exits should be clearly marked and kept unobstructed, ensuring that personnel can evacuate safely in case of an emergency. Regular checks and maintenance of firefighting equipment are necessary to ensure they remain in effective working condition.



To facilitate daily inspections and maintenance, the generator room should provide enough space. Especially after prolonged operation, regular checks and component replacements are required. The design should ensure that the generator is accessible for maintenance, allowing personnel to perform maintenance tasks without affecting the normal operation of the equipment.



The design of the diesel generator room is fundamental to ensuring the efficient and safe operation of the generator. The design must consider ventilation, exhaust, foundation, grounding, and other factors to ensure the generator operates in an optimal environment. By implementing a scientifically rational layout and design, the generator room can contribute to improving generator performance, increasing system reliability, and reducing maintenance costs.
