Generator Set Open-Loop System vs. Closed-Loop System

In today's power supply field, generator sets play an indispensable role. Whether in industrial production or civilian facilities, a stable and reliable power supply depends on the efficient operation of generator sets. The cooling method of generator sets, as one of the key factors to ensure stable operation, is generally divided into open-loop and closed-loop types. Today, we will explore in depth the differences, characteristics, and advantages of these two cooling methods in different application scenarios.

Closed-loop generator sets are highly favored in the market due to their unique cooling systems and wide range of applications. The following is a detailed analysis of closed-loop generator sets, including their composition, advantages, and maintenance points.

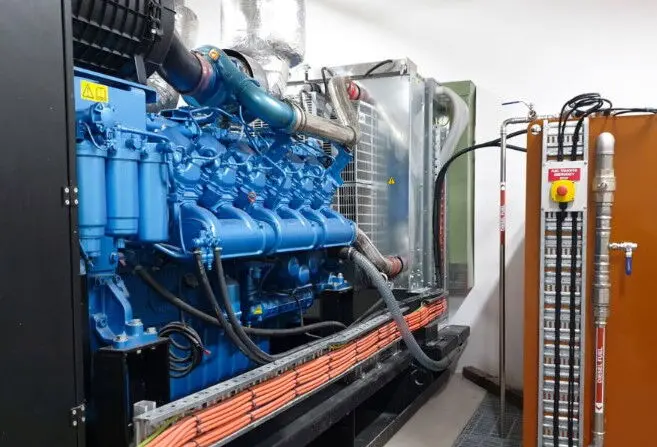

Closed-loop generator sets mainly consist of a diesel engine, AC synchronous generator, control panel, common base frame, radiator, cooling fan, and other supporting devices. The diesel engine and generator are fixed on the same common base frame. The output end of the diesel engine is directly connected to the generator rotor shaft via an elastic sleeve pin coupling, allowing the diesel engine to drive the generator.

At the free end of the diesel engine, a radiator and cooling fan are installed. The cooling fan is connected to the free end of the crankshaft through a fan drive device and is driven by the diesel engine to implement forced water cooling. The radiator is connected to the diesel engine's internal cooling system through inlet and outlet pipes, forming an independent closed-loop cooling system to supply the required cooling water during diesel engine operation.

Closed-loop cooling systems have many advantages. First, they consume less water because the cooling water is reused and cooled through the radiator and fan. Second, this cooling system can maintain the cleanliness of the water, preventing external contamination and thereby extending the life of the cooling system. In addition, closed-loop cooling systems make it easy to control the inlet water temperature, stabilizing engine operation and providing good economic efficiency. By adjusting the flow of cooling water and the air volume of the fan, the heat dissipation intensity of the cooling system can be regulated to adapt to different working conditions.

Maintenance of closed-loop cooling systems is relatively simple. Since the cooling water is reused, it is necessary to regularly check the water quality to ensure its cleanliness. At the same time, the radiator and fan must be regularly inspected to ensure they can operate normally. If the water temperature is too high, the thermostat can be adjusted to control the flow of cooling water, thereby changing the cooling intensity. In addition, the sealing of the cooling system should be regularly inspected to prevent water leakage.

Next, we turn to open-loop generator sets. This type of generator set is widely used in industrial fields due to its unique cooling method and significant noise reduction. The following is a detailed analysis of open-loop generator sets, covering its structural features, operational advantages, and maintenance points.

The structure of open-loop generator sets is basically the same as closed-loop sets, but the main difference is that open-loop units do not include a radiator and cooling fan. Therefore, the unit itself cannot independently complete the cooling cycle, and users must set up their own cooling water dissipation devices to meet the diesel engine's required cooling water. Open-loop cooling is generally used in high-power diesel generator sets because high-power units generate a large amount of heat during operation, requiring a more effective cooling system to ensure normal operation.

The main advantage of open-loop cooling systems is their relatively simple structure, without the need for additional radiator and fan devices. This design allows open-loop generator sets to more effectively reduce the noise of the unit and indoor temperature during high-power operation, which is beneficial for long-term stable operation and maintenance. In addition, open-loop cooling systems do not require part of the engine power to drive the fan, thereby improving the economic efficiency of the generator set to some extent.

Maintenance of open-loop cooling systems is relatively complex. Because the cooling water is drawn directly from external water sources, it is necessary to ensure sufficient and clean water supply. It is also necessary to regularly check the temperature of the cooling water to ensure it is within an appropriate range. If the cooling water temperature is too high, the flow must be adjusted in time or the cooling water replaced. In addition, the sealing of the cooling system should also be regularly checked to prevent water leakage.

Next, we will explore the main differences between these two types of generator sets. These differences are reflected not only in their cooling system structures but also in their application scenarios, sources and consumption of cooling water, as well as their respective advantages and disadvantages.

Closed-loop generator sets have a sealed circulation loop in which cooling water flows internally and dissipates heat through the radiator and fan. The advantage of this design is that the cooling water remains clean, ensuring the stable operation of the cooling system while consuming less water. Open-loop generator sets, on the other hand, have an open system in which water is drawn directly from external sources, used to cool the diesel engine, and then discharged to the surrounding environment. The advantage of this design is a relatively simple structure without the need for additional radiator and fan devices, but the cooling intensity is difficult to adjust, and users must set up their own cooling water dissipation devices.

Closed-loop generator sets are usually applied in civilian projects due to their small footprint and strict room ventilation requirements. For example, in small commercial buildings and residential communities, closed-loop generator sets can provide stable power supply without occupying too much space. Open-loop generator sets are more suitable for industrial projects, especially in large factories and mines, where high-power units require more effective cooling systems to ensure normal operation. Open-loop generator sets can reduce unit noise and indoor temperature, which is conducive to long-term stable operation and maintenance.

The cooling water of closed-loop generator sets is reused and cooled through the radiator and fan, resulting in low water consumption. This cooling system can maintain water cleanliness, easily control inlet water temperature, stabilize engine operation, and has good economic efficiency. Open-loop generator sets draw cooling water directly from external sources and discharge it after use, requiring sufficient water supply. The advantage of this cooling method is that no additional cooling devices are needed, but the disadvantage is that the cooling intensity is difficult to adjust and it may have some environmental impact.

Open-loop and closed-loop generator sets have different suitable application scenarios. Different cooling methods determine the suitability of generator sets in various environments and requirements. Understanding these scenarios helps in selecting the appropriate type of generator set.

Closed-Loop Generator Sets: Due to their small footprint and strict room ventilation requirements, closed-loop generator sets are usually applied in civilian projects. For example, in small commercial buildings and residential communities, they can provide stable power supply without occupying too much space. In addition, closed-loop generator sets can also be used in locations where high cleanliness of cooling water is required, such as precision instrument manufacturing factories, where the closed-loop cooling system maintains water cleanliness and prevents contamination of equipment.

Open-Loop Generator Sets: Open-loop generator sets are more suitable for industrial projects, especially large factories and mines, where high-power units require more effective cooling systems to ensure normal operation. Open-loop generator sets can reduce unit noise and indoor temperature, which is beneficial for long-term stable operation and maintenance. In addition, open-loop generator sets can also be applied in areas with sufficient and clean water sources. For example, factories near rivers or lakes can use natural water sources as cooling water, thereby reducing operating costs of the cooling system.

Economic efficiency is an important consideration when choosing generator sets, as it affects not only power generation costs but also long-term operation and maintenance costs. The following is a detailed analysis of the economic aspects of open-loop and closed-loop generator sets.

Closed-Loop Generator Sets: The economic efficiency of closed-loop generator sets mainly lies in the recycling of cooling water. Since the cooling water is reused, water consumption is low, reducing operating costs of the cooling system. In addition, the closed-loop system keeps the water clean, preventing external contamination and extending the lifespan of the cooling system, which lowers maintenance costs. Although the closed-loop system requires part of the engine power to drive the fan, overall, the economic efficiency of closed-loop generator sets is relatively high.

Open-Loop Generator Sets: The economic efficiency of open-loop generator sets mainly lies in the simple structure and the fact that part of the engine power is not required to drive a fan. Since open-loop systems do not need additional radiators or fans, the structure is relatively simple, reducing equipment procurement costs. In addition, open-loop systems do not consume engine power to drive the fan, which improves economic efficiency to some extent. However, open-loop systems require sufficient water supply, and the cooling intensity is difficult to adjust, which may increase operating costs during operation.

Next, we will focus on the environmental impact of these two types of generator sets. Understanding their specific impact on the environment during operation helps evaluate their sustainability and make more environmentally friendly choices in practice.

Environmental Impact of Closed-Loop Generator Sets: The environmental impact of closed-loop generator sets is relatively small. Since the cooling water is recycled, it does not cause significant water resource waste. In addition, the closed-loop system maintains water cleanliness, avoiding contamination of the environment. However, the closed-loop system requires part of the engine power to drive the fan, which may slightly increase energy consumption and thus have some environmental impact.

Open-Loop Generator Sets: The environmental impact of open-loop generator sets is relatively large. Because water is drawn from external sources and discharged after use, it may result in water resource waste. In addition, if the cooling water temperature is too high, it may affect the surrounding ecosystem. However, open-loop systems do not consume part of the engine power to drive the fan, which slightly reduces energy consumption and has a relatively smaller environmental impact in that regard.

Through the detailed comparison and analysis of open-loop and closed-loop generator sets, we can conclude the following: Closed-loop generator sets, due to their small footprint and strict room ventilation requirements, are usually applied in civilian projects. They have the advantages of recycled cooling water, low water consumption, high water cleanliness, and good economic efficiency. Open-loop generator sets are more suitable for industrial projects, especially in large factories and mines, and have the advantages of simple structure, no engine power consumption for fan operation, and reduced noise and indoor temperature of the unit.
