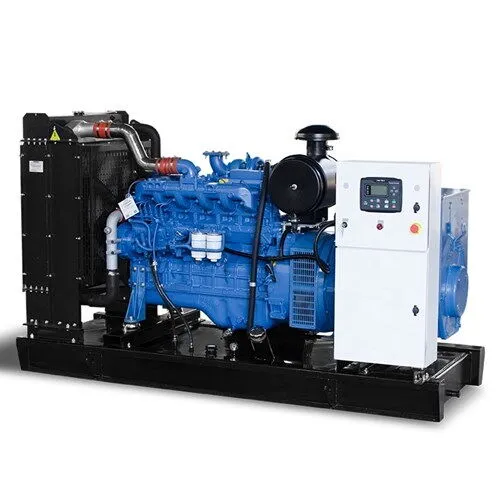

As a critical backup power source, generator sets play a vital role in areas with unstable power supply or no grid coverage. They are widely used in enterprises, organizations, off-grid communities, and various events, providing reliable power support during emergencies or when conventional power supply is insufficient. This article will delve into the components and functions of generator sets, helping readers gain a comprehensive understanding of how these devices operate.
The engine is one of the core components of a generator set, responsible for converting the chemical energy of fuel into mechanical energy, which powers the generator. The size of the engine directly determines the maximum power output of the generator set, making it a key consideration when selecting a generator set. When evaluating an engine, several variables must be considered, with fuel type being particularly crucial. Generator sets typically use diesel as fuel due to its high energy density, which is suitable for large engines and ensures stable power output, maintaining efficient operation over extended periods.
Fuel Types: Generator engines use various fuels, including diesel, gasoline, propane (liquid or gas), and natural gas. Small engines typically run on gasoline, while larger engines use diesel, liquid propane, propane gas, or natural gas. Some engines can also operate in a dual-fuel mode, using both diesel and natural gas.
Overhead Valve (OHV) Engines: OHV engines differ from others in that the intake and exhaust valves are located at the top of the engine cylinder head rather than on the engine block. OHV engines offer several advantages, such as higher efficiency and lower noise levels.
Oil Level Check: Typically, the oil level should be checked every 8 hours of operation to ensure it is within the normal range.
Oil Change: After every 500 hours of operation, the oil should be checked for leaks and replaced promptly to maintain the lubrication system's good condition and extend the engine's lifespan.
Manufacturer Recommendations: Consult the engine manufacturer for complete operating specifications and maintenance schedules to ensure the engine runs in optimal condition.
The alternator is the key component in a generator set responsible for converting mechanical energy into electrical energy. It consists of a housing, stator, rotor, and other components. The housing encloses and protects these components, allowing them to work together. The stator is a fixed component containing coils wound around an iron core, while the rotor is a moving component that generates a rotating magnetic field, cutting through the stator's magnetic field to induce a voltage difference in the stator windings, producing an AC output.
Brushless Alternators: Commonly used in large generators, known for their simple structure and reliable operation.
Permanent Magnet Alternators: Often found in small generators, compact and suitable for space-constrained environments.
Exciter-type Alternators: Use an exciter to provide DC current to the rotor, generating a magnetic field, and are suitable for applications requiring precise voltage regulation.
Stator: A fixed component containing coils wound around an iron core.
Rotor/Armature: A moving component that generates a rotating magnetic field through induction, permanent magnets, or an exciter.
Voltage Generation: The rotor creates a moving magnetic field around the stator, inducing a voltage difference in the stator windings, producing the generator's AC output.
The voltage regulator plays a crucial role in the generator set, maintaining the stability of the generator's output voltage. When the generator's output voltage fluctuates, the voltage regulator automatically adjusts the excitation current to ensure the output voltage remains within the set range.
Voltage Stabilizer: Converts a portion of the generator's AC output voltage into DC current, which is then fed into the stator's excitation windings.
Excitation Windings: Generate AC current, connected to a rotating rectifier.
Rotating Rectifier: Converts AC current into DC current, feeding it into the rotor/armature to create an electromagnetic field.
Rotor/Armature: Induces a larger AC voltage on the stator windings, ensuring the generator outputs a stable AC voltage.
Load Change Response: When the load changes, the voltage regulator quickly adjusts the excitation current to restore the generator's output voltage to normal levels.
Voltage Stabilizer Balance: As the generator's output increases, the DC current produced by the voltage stabilizer decreases accordingly to maintain stable output voltage.
Generator sets generate significant heat during operation, necessitating an effective cooling system to dissipate heat and prevent overheating. Additionally, the exhaust gases emitted by generators contain toxic chemicals, requiring a well-designed exhaust system for proper handling.
Cooling Methods: Small generators typically use fan cooling, while larger generators may use coolants such as raw water, fresh water, or hydrogen.
Coolant Selection: Hydrogen, known for its high thermal conductivity, is often used for cooling stator windings in large generator sets.
Cooling System Maintenance: The generator's coolant level should be checked daily. The cooling system and raw water pump should be cleaned every 600 hours, and the heat exchanger should be cleaned every 2400 hours of operation.
Installation Requirements: Generators should be placed in well-ventilated areas with sufficient fresh air. The National Electrical Code (NEC) requires at least 3 feet of space on all sides of the generator to ensure free airflow.
Exhaust Pipe Materials: Exhaust pipes are typically made of cast iron, wrought iron, or steel.
Exhaust Pipe Connections: The exhaust pipe must be independent and not supported by the generator's engine. Flexible connectors are usually used to connect the exhaust pipe to the engine, minimizing vibration and preventing damage to the exhaust system.
Exhaust Pipe Installation: The exhaust pipe should terminate outdoors, directing exhaust away from doors, windows, and other openings. Ensure the generator's exhaust system is not connected to any other equipment's exhaust system.
Regulatory Compliance: Consult local city ordinances to determine if generator set operation requires local government approval, ensuring compliance with local laws to avoid fines and penalties.
The generator's engine contains many moving parts, such as the crankshaft and pistons, which generate friction and heat during operation. A lubrication system is essential to ensure the engine's long-term durability and trouble-free operation.
Oil Level Check: Typically, the oil level should be checked every 8 hours of operation to ensure it is within the normal range.
Oil Change: After every 500 hours of operation, the oil should be checked for leaks and replaced promptly to maintain the lubrication system's good condition and extend the engine's lifespan.
Oil Selection: Choose oil suitable for the engine, ensuring it has good lubrication and anti-wear properties.
Regular Maintenance: Regularly check the oil quality and replace deteriorated oil promptly to maintain the lubrication system's efficient operation.
The fuel system is a crucial part of the generator set, responsible for delivering fuel from the fuel tank to the engine and ensuring a stable, clean fuel supply.
Fuel Supply Line: Directs fuel from the fuel tank to the engine.
Fuel Return Line: Returns excess fuel from the engine to the fuel tank, maintaining pressure balance in the fuel system.
Fuel Tank Vent Pipe: Prevents pressure or vacuum buildup during refueling and fuel discharge.
Fuel Pump: Transfers fuel from the main storage tank to the day tank, typically using an electric pump.
Fuel Water Separator/Fuel Filter: Removes water and impurities from the fuel, preventing these contaminants from entering the engine.
Fuel Injector: Atomizes liquid fuel and injects it into the engine's combustion chamber in precise amounts.
Regular Inspection: Regularly inspect the fuel system's components to ensure proper operation.
Cleaning and Replacement: Regularly clean the fuel filter and replace damaged components to ensure the fuel system remains clean and unobstructed.
The control panel is the user interface of the generator set, providing a platform for users to interact with the device, allowing for easy control and monitoring of the generator set's operation.
Start and Stop: The automatic start control panel starts the generator during a power outage, monitors its operation, and automatically shuts it down when no longer needed.
Engine Indicators: Various gauges indicate critical parameters such as oil pressure, coolant temperature, battery voltage, engine speed, and operating time. Continuous measurement and monitoring of these parameters allow the generator to shut down if any exceed their respective threshold levels.
Generator Indicators: The control panel also includes meters for measuring output current, voltage, and operating frequency.
Regular Inspection: Regularly inspect the control panel's components to ensure proper operation.
Cleaning and Maintenance: Regularly clean the control panel to prevent dust and dirt buildup, which can affect its performance.
The generator's starting function relies on the battery, and the battery charger is responsible for providing stable charging to ensure the battery remains in good condition.
Float Voltage Control: Maintains the generator battery's charge by providing precise "float" voltage. If the float voltage is too low, the battery will not charge fully; if too high, it will shorten the battery's lifespan.
Material and Performance: Modern chargers are typically made of stainless steel, offering excellent corrosion resistance and adaptability to various harsh environments. They also feature fully automatic control, eliminating the need for complex adjustments or setting changes by the user.
Regular Inspection: Regularly inspect the charger's operation to ensure it functions correctly.
Cleaning and Maintenance: Regularly clean the charger to prevent dust and dirt buildup, which can affect its performance.
As an essential backup power source, the components of a generator set work together to ensure efficient and stable operation. From the engine's power output to the alternator's energy conversion, from the voltage regulator's stable control to the cooling and exhaust systems' safety measures, and from the lubrication system's maintenance to the fuel system's supply, each component plays an indispensable role. The control panel and battery charger provide users with convenient operation and reliable starting power, enabling generator sets to deliver stable power support in various complex conditions. Understanding the components and working principles of generator sets helps users better select, use, and maintain the equipment, maximizing its performance advantages to meet power demands in different scenarios.
