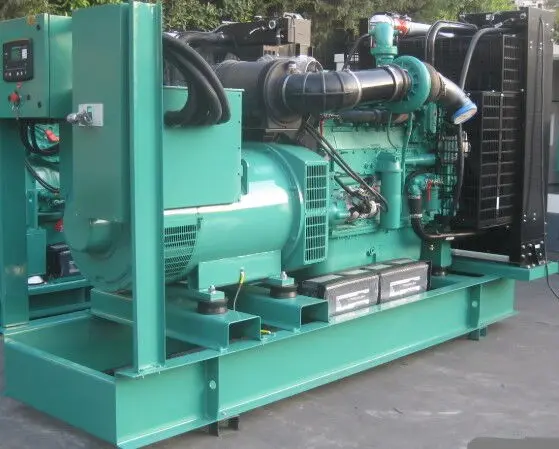

Guide to Diesel Generator Set Major Systems

In modern society, the stability of electricity supply is essential across all areas of life and industry. From industrial production and commercial operations to everyday domestic use, any interruption in power can lead to significant financial losses, operational disruptions, and inconvenience. Diesel generator sets (gensets), as reliable backup power sources, play an indispensable role during emergencies or in areas where the main power supply is unstable. These machines are designed to deliver continuous, dependable electricity and serve as a lifeline in critical situations.

To fully understand the operational reliability of diesel generator sets, it is essential to explore their internal structure and working principles. A diesel generator is not a simple engine but a complex system composed of six major subsystems working collaboratively. These systems, lubrication, fuel supply, intake and exhaust, starting, control and protection, and cooling, form the heart of the generator, ensuring it can deliver power efficiently, safely, and continuously.

The lubrication system is a cornerstone of engine reliability. Its primary role is to deliver clean oil at the correct pressure and temperature to all friction surfaces within the engine, performing several crucial functions:

Internal components of a diesel engine, such as pistons, crankshafts, and bearings, operate under high speeds and pressures, generating substantial friction. The lubrication system forms a protective oil film between these components, reducing direct metal-to-metal contact. This minimizes wear, prevents mechanical failure, and ensures smooth operation. It is comparable to applying oil to the joints of machinery, allowing parts to move freely without excessive friction.

Engine operation produces not only heat but also micro-impurities from wear and combustion by-products. Lubricating oil circulates through the engine, carrying away these impurities and cleaning critical surfaces. Simultaneously, the oil absorbs and transfers heat, helping maintain the engine within an optimal temperature range. This dual action is akin to a continuous cleaning and cooling treatment, maintaining engine efficiency and longevity.

Lubrication also enhances the sealing efficiency of moving components such as piston rings against cylinder walls, preventing gas leakage and improving engine efficiency. Furthermore, the oil protects all moving parts from rust and corrosion, extending their service life. In essence, the lubrication system acts as a protective shield, safeguarding internal components from wear and environmental damage.

Key Components of Modern Lubrication Systems:

Oil Storage and Delivery: The oil pump, the heart of the system, draws oil from the sump and circulates it throughout the engine. The oil sump stores a sufficient oil supply to ensure uninterrupted operation.

Filtration: Coarse and fine filters remove contaminants, maintaining oil cleanliness for optimal lubrication performance.

Cooling: Oil coolers dissipate heat from the oil, preventing high temperatures from degrading lubrication properties. Think of this as installing an air conditioner for the engine oil.

Safety Devices: Valves and alarms protect the system from excessive or insufficient oil pressure. High-power engines may also feature automatic shutdown mechanisms if oil pressure drops too low.

Monitoring Instruments: Oil pressure and temperature gauges act as the eyes of the system, providing real-time feedback and allowing operators to detect and address potential issues before damage occurs.

The fuel supply system is the engine's lifeline, delivering diesel precisely to the combustion chamber at the right time, pressure, and quantity. It consists of two main circuits: low-pressure and high-pressure. The system ensures that fuel injection occurs just before the piston reaches the top of its compression stroke, optimizing combustion efficiency and power output.

The low-pressure circuit is the starting point, including the fuel tank, fuel lines, low-pressure pump, and fuel filters. The fuel tank stores diesel, while the low-pressure pump draws fuel and sends it through filters to remove impurities, ensuring clean fuel enters the high-pressure circuit. This pre-filtration is akin to a quality check before fuel reaches the engine.

The high-pressure circuit is the core of fuel delivery. It includes the high-pressure injection pump, governor, high-pressure lines, and injectors. The pump pressurizes the fuel to the required level, and the governor adjusts injection volume based on engine load to maintain stable RPM. Injectors atomize the fuel into the combustion chamber, mixing it with air for efficient combustion. This process is like lighting a controlled fire in the combustion chamber, releasing energy to drive the engine.

The intake and exhaust system ensures effective air-fuel exchange and gas expulsion. It includes air filters, turbochargers, intercoolers (in some models), intake manifolds, exhaust pipes, bellows, bends, and industrial or residential silencers.

Intake System: The intake system provides clean, filtered air to the engine. Air filters remove dust and impurities, protecting engine components. Turbochargers use exhaust energy to compress incoming air, increasing cylinder air density and allowing more fuel to burn for higher power output. Intercoolers cool compressed air, further increasing efficiency. Intake manifolds distribute air evenly to each cylinder, and maintenance indicators alert operators when filters need replacement.

Exhaust System: The exhaust system removes combustion gases and reduces noise. Proper installation of exhaust pipes, bends, and silencers ensures minimal backpressure and noise while maintaining engine efficiency. Poorly installed exhaust systems can cause operational issues, reduce performance, and shorten engine life.

The starting system comprises the starter motor, relays, battery, and alternator, typically operating at DC12V or DC24V. When the start button is pressed, the battery energizes the starter motor, rotating the engine crankshaft. Simultaneously, fuel injection begins, and ignition occurs, enabling rapid engine startup. The alternator then recharges the battery during operation, ensuring readiness for the next start.

Proper wiring, usually with negative grounding, is essential to avoid malfunctions. Users must carefully follow electrical diagrams to ensure correct connections.

The control panel is the generator's intelligent brain, allowing operation, monitoring, and protection. It controls start/stop functions, speed regulation, and parallel operation while continuously monitoring parameters such as voltage, current, frequency, oil pressure, and coolant temperature. If abnormalities occur, alarms or automatic shutdowns prevent engine damage.

Modern control panels, including well-known brands like SmartGen and Deep Sea, offer high intelligence, reliability, and flexibility. Operators can easily monitor performance and respond to any operational issues, ensuring the generator operates safely under various conditions.

Diesel engines produce substantial heat during operation, and the cooling system prevents overheating, maintaining optimal performance and longevity. Coolant circulates through the engine block and cylinder head, absorbing and dissipating heat.

Cooling Methods:

Radiator Cooling: Most generators use radiator systems with engine-driven fans blowing air through the radiator core. This simple and cost-effective system provides excellent heat dissipation.

Heat Exchanger Cooling: Some generators use remote water tanks or heat exchangers to adapt to installation conditions. Expansion tanks and bypass pipes help regulate coolant flow and prevent overpressure damage.

Key components include water pumps, coolant passages, thermostats, radiators, piping, and oil coolers. The thermostat adjusts flow paths to maintain ideal engine temperature, ensuring stable operation under varying load conditions.

The six major systems of a diesel generator, along with other essential components, form a complex, precisely coordinated power generation system. The lubrication system ensures smooth operation and protects moving parts; the fuel supply system delivers fuel accurately for efficient combustion; the intake and exhaust system facilitates optimal gas exchange; the starting system enables rapid activation; the control and protection system provides intelligent monitoring and safeguards; and the cooling system maintains safe engine temperatures.

Together, these systems work in harmony, ensuring diesel generators deliver stable and reliable electricity. Whether for industrial backup power, commercial emergency use, or temporary domestic supply, diesel generators provide dependable performance and high efficiency.

Understanding the internal structure and working principles of diesel generator sets is crucial for proper selection, installation, and maintenance. Regular maintenance and timely replacement of key components maximize performance, prolong service life, and ensure long-term reliability.

In summary, diesel generator sets are indispensable backup power devices. The coordinated operation of their six major systems and supporting components makes them a reliable power heart, playing a vital role in providing stable and continuous electricity across industries and communities worldwide.
