Introducing the Fuel System of Diesel Generator Sets

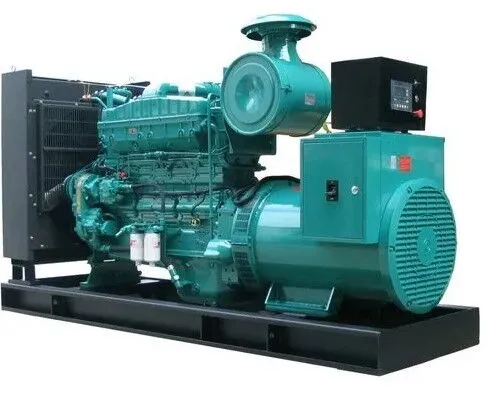

Diesel generator sets are extensively used across various industries, particularly in regions where the power supply is unreliable or where backup power is necessary. The efficient operation of a diesel generator relies heavily on the stability and effectiveness of its fuel system. A fuel system is not just a mechanism to deliver fuel from the tank to the engine; it involves precise control at various stages to ensure that the engine operates efficiently and economically. This article provides a comprehensive overview of the diesel generator set fuel system, covering its components, working principles, common faults, and maintenance practices, to help users understand the critical role this system plays in the overall operation of the generator set.



The fuel tank is one of the fundamental components of the diesel generator fuel system. Its primary function is to store the diesel fuel and supply it to the engine as needed. The size and design of the fuel tank directly influence the runtime and operational stability of the generator. The capacity of the fuel tank determines how long the generator can run without refueling, while the tank's position and structure can also impact the flow of fuel.



Fuel tanks are usually made from corrosion-resistant and oxidation-resistant materials, such as stainless steel or aluminum alloys. This helps prevent rust and damage due to long-term usage, thereby extending the lifespan of the tank. For larger diesel generators, the tanks are designed with robust structures to endure prolonged vibration and pressure changes, which are common during operation.



Several important aspects are considered when designing fuel tanks:

Spill Prevention: The structure of the fuel tank must be designed to prevent spillage during refueling or operation, reducing the risk of environmental pollution and fire hazards.

Water Separation Function: Tanks are often equipped with water separators or oil-water separators to avoid water contamination, ensuring the fuel remains clean.

Fuel Level Monitoring: Most tanks come equipped with fuel level gauges to allow operators to easily monitor the remaining fuel and prepare for refueling in advance.



Fuel tanks come in various configurations depending on the installation location and the generator's needs:

Aboveground Tanks: These tanks are typically mounted externally and are easier to inspect and replace. They are commonly used for smaller, portable generator sets.

Underground Tanks: In high-security areas, underground tanks are employed to prevent fire and explosion risks. These tanks are designed to withstand external pressure and provide safety in hazardous environments.

Base Tanks: These tanks are mounted at the bottom of the generator unit, ensuring stability and reducing external influences, making them ideal for stationary generator sets that are deployed for long-term use.



The fuel filter is an indispensable component in the diesel generator fuel system. Its primary function is to remove impurities, particulates, and water from the diesel before it enters the engine. Unfiltered fuel may contain dust, moisture, metal debris, and other contaminants, which can cause blockages in the fuel injectors, damage engine components, and reduce the efficiency of the engine.



Fuel filters generally employ a two-stage filtration process:

Coarse Filtration: This stage removes larger particles, such as dust and metal shavings, from the fuel.

Fine Filtration: This stage provides more refined filtration, removing smaller particles and water that could potentially damage the fuel system.

In many modern diesel generators, fuel filters are divided into two types:

Coarse Filters: These filters are simpler in design and have lower filtration accuracy. They focus on removing large particles from the fuel.

Fine Filters: These are more complex filters, often made from fine materials such as fibers or metal meshes. Fine filters are responsible for ensuring that only clean, impurity-free fuel reaches the injection system for optimal combustion.



Regular maintenance of the fuel filter is essential. If the filter is not replaced or cleaned periodically, it can lead to a reduction in fuel flow, engine starting problems, and poor performance. Typically, fuel filters should be inspected and replaced after 500 hours of operation or at least once a year, depending on the specific generator's usage.



During the storage and transportation of diesel, moisture from the air may condense within the fuel. This moisture, if not removed, can cause significant problems in the fuel system. Water contamination can corrode the injectors and fuel pump, emulsify the fuel, and lead to incomplete combustion, reduced engine power, and operational inefficiency.



Water separators typically function on the principle of centrifugal force. Since water is denser than diesel, it settles at the bottom of the separator, allowing the clean diesel to flow to the fuel system. Water separators are usually installed between the fuel tank and fuel pump, ensuring that the fuel entering the pump is free from moisture.



Water separators require periodic cleaning and draining of accumulated water. If excess water is allowed to accumulate, it can interfere with the separator's functionality, causing water to enter the fuel system and potentially causing engine failure. Regularly draining the accumulated water from the separator is essential to maintain the stability and efficiency of the fuel system.



The fuel pump's primary function is to extract diesel from the fuel tank and deliver it through the system to the fuel injectors. The performance of the fuel pump directly impacts the operation of the fuel system and, in turn, the overall efficiency of the generator.



Fuel pumps operate using either mechanical or electronic methods to deliver fuel to the injectors under pressure. Modern diesel generators typically use high-pressure common-rail fuel pumps, which precisely control the fuel pressure and flow rate, adapting to varying loads and engine speeds.



Gear Pumps: These pumps are commonly used in smaller diesel generator sets. They use gears to push fuel through the system, making them simple and cost-effective.

Plunger Pumps: These pumps rely on the reciprocating motion of plungers to create higher fuel pressure. They are typically used in larger generator sets that require high fuel pressures.

Electronically Controlled Fuel Pumps: These pumps use an electronic control unit (ECU) to regulate fuel flow and pressure, ensuring that fuel supply matches engine requirements, thus improving fuel efficiency and reducing emissions.



Regular inspection of the fuel pump is necessary to ensure that it is delivering the correct pressure and flow rate. Over time, fuel pumps can suffer from wear and tear, sealing degradation, or clogging, which may lead to fuel leakage or inadequate fuel delivery. Timely replacement and proper maintenance of fuel pumps are essential to avoid potential engine issues.



Fuel injectors are one of the most critical components of the fuel system. They are responsible for atomizing the diesel fuel and injecting it into the combustion chamber, where it mixes with air and is ignited. The injector's design and performance significantly affect the engine's combustion efficiency, emissions, and power output.



Injectors operate by using high-pressure fuel to atomize it into a fine mist and inject it into the combustion chamber. This atomized fuel mixes with air in the chamber and ignites due to the compression from the engine's pistons. Injectors must have precise control over the timing, quantity, and spray pattern of the fuel to ensure that combustion is efficient and emissions are minimized.



Single-Hole Injectors: These are typically used in smaller engines and are simpler in design. They have one spray nozzle that delivers the fuel into the combustion chamber.

Multi-Hole Injectors: These injectors are used in larger, high-performance engines. They have multiple nozzles to provide more uniform fuel atomization, which helps to improve combustion efficiency and reduce emissions.

Electronically Controlled Injectors: Modern diesel engines typically use electronically controlled injectors that receive signals from the engine's ECU. These injectors can precisely control fuel flow, timing, and atomization to optimize combustion, improve fuel efficiency, and reduce pollutants.



Fuel injectors must be regularly checked for clogging or spray pattern irregularities. Dirty injectors can cause uneven fuel distribution, resulting in engine misfires, reduced power, and increased emissions. Regular cleaning and inspection are essential to maintain optimal performance.



The fuel return circuit plays a vital role in the fuel system. It ensures that any excess fuel not needed by the engine is returned to the tank, preventing fuel pressure from building up too high in the system and ensuring optimal fuel delivery.



Fuel return lines are typically constructed from materials resistant to high temperatures and corrosion. These lines must be checked periodically for clogs, cracks, or wear that might cause fuel leaks or obstruct the return of excess fuel. Any faults in the return line can lead to fuel system failures, so routine maintenance is crucial.



Proper maintenance of the fuel system is essential for the long-term stability and efficient operation of a diesel generator. Below are some fundamental maintenance tips:

Regular Replacement of Fuel Filters: Clogged filters restrict fuel flow and reduce injection efficiency. Filters should be replaced every 500 hours of operation or annually.

Cleaning the Water Separator: Accumulated water in the separator should be drained periodically to avoid contamination of the fuel system.

Fuel Pump and Injector Inspections: Fuel pumps should be checked for normal pressure output, and injectors should be tested for even spray patterns and efficient atomization.

Checking Return Lines: Regularly check the return lines for clogs or damage to ensure that excess fuel is appropriately returned to the tank.



The fuel system of a diesel generator is the heart of its operation, ensuring that fuel is delivered to the engine under optimal conditions for combustion. Key components such as the fuel tank, filters, water separator, fuel pump, injectors, and return lines must all work in harmony to maintain efficient engine performance and longevity. Regular maintenance, such as timely filter replacements, cleaning water separators, and inspecting fuel pumps and injectors, is crucial to keeping the generator running smoothly and preventing costly breakdowns. By understanding and maintaining each part of the fuel system, users can ensure that their diesel generator operates at peak efficiency, providing reliable and economical power for years to come.
