Practical Guide to Power Matching for Diesel Generator Sets

In today's era, where the importance of power supply is increasingly recognized, diesel generator sets, as a reliable backup power source, play an indispensable role in numerous fields. Whether in industrial production, commercial operations, or emergency rescue, diesel generator sets can provide stable power support at critical moments. However, to ensure the generator set operates efficiently and reliably, a key factor is the power matching between the diesel engine and the generator. This article will explore in depth the principles, methods, and related considerations of diesel generator set power matching, helping users better understand and apply this knowledge to achieve optimal diesel generator set performance.

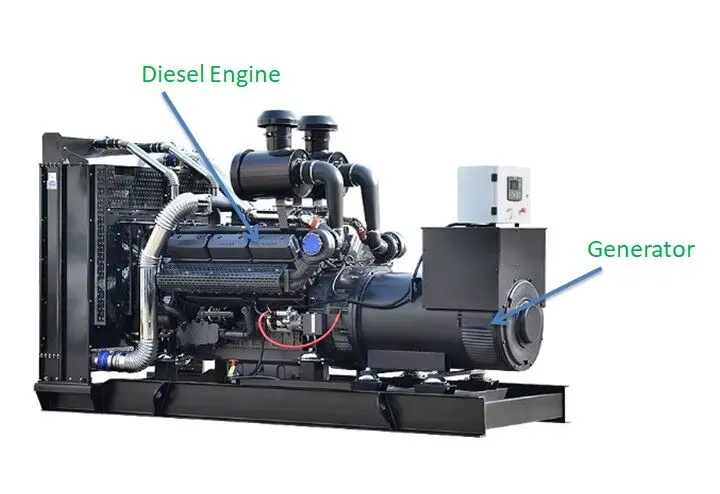

A diesel generator set is composed of a diesel engine and a generator, and the power matching between the two is crucial. The basic principle is that the rated power of the generator should be greater than or equal to the rated power of the diesel engine, and there should be a certain margin. Specifically, if the rated power of the diesel engine is 100 kW, the rated power of the generator should be selected between 110 kW and 120 kW. Such matching ensures that during actual operation, the generator will not be damaged due to overload, while the diesel engine can operate within a reasonable load range, thereby extending its service life.

In addition, the standby power of the generator must also be considered. Typically, the standby power should be 20% to 30% of the rated power. This means that in emergency situations, the generator set can temporarily withstand higher loads without immediate failure. For example, if the generator's rated power is 120 kW, its standby power should be 24 kW to 36 kW. Proper standby power settings can provide a buffer for the generator set when the load suddenly increases, until the load returns to normal or other measures are taken.

In practical applications, calculating the power difference between the diesel engine and the generator is an important step to ensure reasonable matching. Generally, the power difference should be controlled within 10%. If the power difference is too large, the diesel engine will operate under high load for a long time, accelerating wear and affecting service life. For example, if the rated power of the diesel engine is 100 kW and the rated power of the generator is 110 kW, then the power difference is 10 kW, which is 10%, a reasonable matching range.

In addition to the power difference, the rated current of the generator must also be considered. The rated current of the generator should be lower than its rated capacity to avoid damage due to overload. For example, if the generator's rated power is 120 kW and the rated voltage is 400 V, the rated current should be calculated using the formula: I = P ÷ (U × cos φ), where cos φ is the power factor, typically 0.8. The calculation result is: I = 120,000 ÷ (400 × 0.8) = 375 A. Therefore, the rated current of the generator should be less than 375 A to ensure safe operation.

The control panel is a key component connecting the diesel engine and the generator, and its design and configuration directly affect the stability and safety of the generator set. A reasonably designed control panel can achieve precise control over the generator set, including start, stop, speed regulation, and protection functions. When selecting a control panel, its reliability, flexibility, and compatibility with the generator set must be considered.

For example, the control panel should be equipped with overload protection to prevent generator damage from overload. At the same time, the control panel should have automatic speed regulation, enabling the diesel engine to quickly adjust its speed when the load changes, ensuring stable operation of the generator set. Additionally, the control panel's design should consider operational convenience, making daily operation and maintenance easier for users.

Optimizing the power matching between the diesel engine and the generator can bring multiple benefits. First, it can improve the efficiency of the generator set. A reasonably matched generator set can better adapt to load changes, reduce energy loss, and improve overall efficiency. Second, optimized power matching can extend the service life of the generator set. Avoiding prolonged high-load operation of the diesel engine and overload of the generator reduces equipment wear and lowers failure rates.

In addition, choosing a high-efficiency, high-power generator allows the generator set to quickly operate at full load within a short time, further improving efficiency. For example, in applications requiring rapid start and full-load operation, such as backup power for data centers, a high-efficiency, high-power generator can quickly provide the required electricity and reduce downtime.

Reasonable daily maintenance is key to ensuring long-term stable operation of the generator set. Regular inspection and maintenance can prevent faults, reduce downtime, and minimize economic losses. Maintenance includes checking the diesel engine's fuel system, lubrication system, and cooling system to ensure normal operation. At the same time, regular inspection of the generator's windings, bearings, and other components is necessary to identify and address potential issues promptly.

For example, regularly replacing lubricating oil and filters maintains good engine lubrication and reduces wear. Inspecting the generator's winding insulation can prevent short circuits caused by insulation aging. Through these daily maintenance measures, the service life of the generator set can be effectively extended, and its reliability improved.

Diesel Engine Power Rating and Environmental Adaptation

When selecting a diesel engine to match a generator, a 12-hour power or continuous power rating is usually used as the calibration power. The 12-hour power refers to the diesel engine running continuously at rated power under standard environmental conditions for 12 hours, including 1 hour where it can exceed rated power by 10%. Continuous power indicates the diesel engine can run continuously over the long term, including 1 hour exceeding rated power by 10%. Typically, continuous power is 90% of 12-hour power.

It is important to note that the rated power on the diesel engine nameplate is determined under specified standard environmental conditions. If the actual environment differs, such as high altitude, high or low temperature, or high humidity, the power should be adjusted according to relevant methods. For example, in high-altitude areas, the air is thin, reducing engine intake and lowering power. In this case, a higher-power diesel engine must be selected to ensure the generator set can output the rated power under calibrated operating conditions.

When matching a diesel engine with a generator, the power requirements of the generator set must be considered. Power is an important performance indicator of a generator set, and it must meet the load requirements. When selecting a generator set, one must comprehensively consider the load type, quantity, and power requirements to ensure the generator set can supply the required electricity.

For example, if the load mainly consists of electric motors, the motor starting current must be considered. The starting current of a motor is usually 5–7 times its rated current, so the generator set must have sufficient power to meet the motor’s starting demand. If the load is lighting equipment, the total power and possible fluctuations must be considered. By reasonably calculating the power demand of the load, the appropriate diesel engine and generator can be selected to achieve optimal matching.

Generator sets often operate under different environmental conditions, such as high altitude, high or low temperatures, and humidity. In these special environments, diesel engine and generator selection should be adjusted according to environmental conditions to ensure reliability and stability. For example, in high-temperature environments, diesel engines and generators with better heat dissipation performance are needed to prevent overheating damage.

Load variations are also an important consideration. Load changes affect the operation of the diesel engine, so when matching a diesel engine with a generator, the stability and range of load variation must be considered. For example, in some industrial processes, the load may fluctuate significantly in a short period. In this case, diesel engines and generators with good speed regulation performance should be selected to adapt to load changes.

Efficiency refers to the generator set's ability to convert chemical energy into electrical energy per unit of time. Proper matching of the diesel engine and generator can improve efficiency, reduce fuel consumption, and lower operating costs. To enhance efficiency, consider selecting diesel engines and generators with matched efficiency, and adjust the transmission between the diesel engine and generator.

For example, selecting high-efficiency and energy-saving diesel engines and generators can significantly improve overall efficiency. Optimizing the transmission design to reduce energy loss during transfer can further enhance efficiency. These measures not only reduce fuel consumption but also minimize environmental impact.

The diesel engine and generator are the two core components of a generator set, and their reliability directly affects the stability and reliability of the set. When selecting diesel engines and generators, the reputation of the supplier and product quality should be considered. Choosing reputable brands and reliable products reduces failure rates and improves generator set reliability.

During use, regular maintenance and servicing of the diesel engine and generator are necessary to ensure proper operation. A reasonable maintenance plan can extend equipment life and reduce repair costs. For example, regularly inspecting and replacing wear-prone parts such as filters and belts can prevent faults. Establishing detailed maintenance records allows users to understand equipment operation status and promptly detect potential issues.

A diesel generator set consists of a diesel engine, AC synchronous generator, control panel, chassis, couplings, radiator, fuel tank, and in some cases, a silencer and enclosure. The diesel engine and generator are directly coupled, and a flywheel is often installed on the main shaft to improve running stability.

To ensure the set meets technical specifications, the diesel engine and generator must be well matched in terms of power and speed. Diesel engine power refers to the effective power the engine can achieve when running continuously for 12 hours at rated speed. Synchronous generator power refers to the rated electrical power obtained at the output terminals during continuous operation at rated speed. The ratio of diesel engine rated power (horsepower) to synchronous generator rated power (kW) is called the matching ratio. For units used on plains, the matching ratio is generally 1.6:1; for some high-demand mobile power stations, it is 2:1.

In practical applications, when purchasing a diesel generator set, users must determine the appropriate power size. The generator set's power should match the load power, and operational economy should also be considered. Load characteristics and diesel engine characteristics should be reasonably allocated to ensure reliable, long-lasting, and economical operation.

If the generator set's load power is too low, the set's power cannot be fully utilized, which is not economical and may cause wear on the set. For example, long-term low-load operation may lead to issues such as oil consumption in the diesel engine. Therefore, when purchasing a generator set, users should select power based on actual load demand to avoid excessive or insufficient power.

Power matching of diesel generator sets is a complex but crucial process. By reasonably selecting the diesel engine and generator power, optimizing control panel design, considering environmental conditions and load variations, and focusing on daily maintenance, the efficiency, reliability, and service life of the generator set can be significantly improved. This article aims to help users better understand and apply power matching knowledge to achieve optimal performance in practical operation. When purchasing and operating diesel generator sets, all factors should be comprehensively considered to ensure stable and efficient operation under various conditions, providing reliable power support to users.
