Key Specifications / Features
- Model no.: CGS-20250312-DGS-01
- Hits: 0
- Categories: Diesel Generator Sets
Detail Information
Product Name: 900kW 1125kVA Diesel Generator Set for Sale
Fuel: Diesel

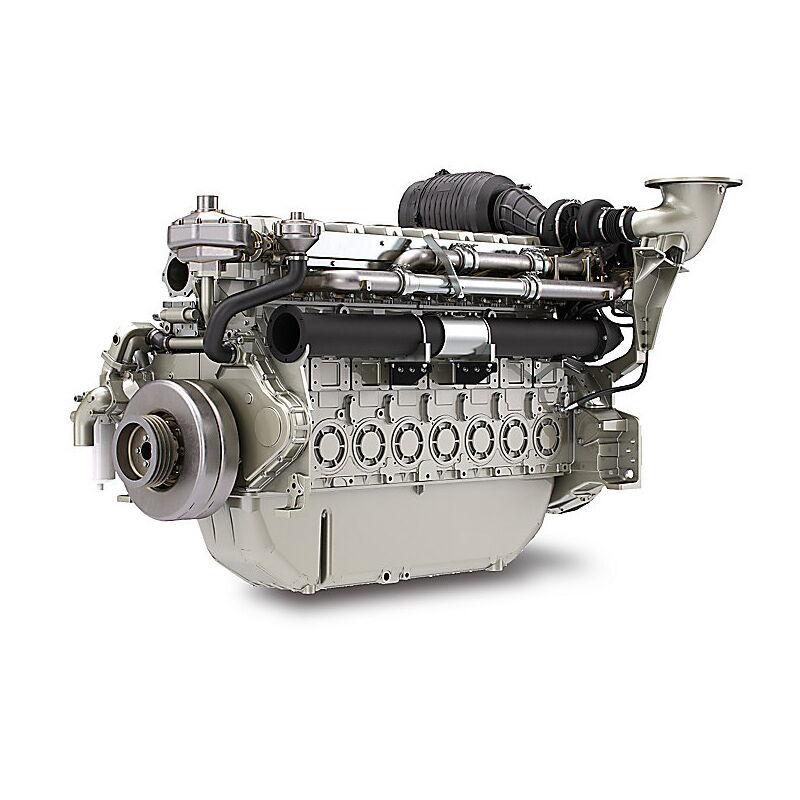

Engine: Perkins 4008-30TAG3
Alternator: Stamford LVI634F
Power Factor: 0.8
Rated Power: 900kW, 1125kVA
Maximum Power: 1000kW, 1250kVA
Frequency: 50 Hz
Rated Voltage: 400/230 V
Rated Current: 1623.8 A
Fuel Tank Capacity: 1000 L
Dimensions: 4627 * 2040 * 2500 mm
Weight: 7050 kg
Noise Level @ 7m (Soundproof Genset): 85 dBA
Starting Batteries: Two 200A Maintenance-Free Batteries
Controller: Deepsea DSE7320
Engine Technical Data
|
Engine Brand |
Perkins |
|
Engine Model |
4008-30TAG3 |
|
Number of Cylinders |
8 Cylinders in-line |
|
Aspiration |
Turbocharged and Air-to-Air Aftercooled |
|
Governor Type |
Electric |
|
Maximum Output Power |
985 kW |
|
Displacement |
22.9 L |
|
Compression Ratio |
13.6 : 1 |
|
Starting Voltage |
24 V |
|
Bore |
160 mm |
|
Stroke |
190 mm |
|
Lubrication Oil Capacity |
165.6 L |
|
Intake Air Flow |
44.4 m³/min |
|
Fuel Consumption (100% Load) |
244 L/h |
Alternator Technical Data
|
Alternator Brand |
Stamford |
|
Alternator Model |
LVI634F |
|
Rated Output |
1130kVA |
|
Frequency |
50 Hz |
|
Altitude |
≤1000 m |
|
Insulation Class |
Class H |
|
Phase |
3 Phase |
|
Operating Temperature (without derating) |
≤40°C |
|
Operating Altitude (without derating) |
≤1000 m |
|
Automatic Voltage Regulator (AVR) |
MX321 |
|
Protection Grade |
IP23 |
|
Optional Alternator Brands |
Leroy Somer, Marathon, Mecc Alte (Brushless) |
Controller Technical Data
|
Controller Brand |
Deepsea |
|
Model |
DSE7320 |
|
Type |
Auto Mains (Utility) Failure Control Module |
|
Application |
Single diesel or gas genset control |
|
Display |
Back-lit LCD screen with LEDs |
|
Remote Alerts |
PC and SMS alerts |
|
Sensing |
3-phase generator and mains sensing |
|
Power Monitoring |
Yes |
|
Communication Ports |
USB, RS232, RS485 |
|
CAN Compatibility |
Yes |
|
Fuel Usage Monitoring |
Yes |
|
Engine Protections |
Extensive |
|
Configurable I/O |
Yes |
|
Load Management |
Load switching, shedding, dummy load outputs |
|
PLC Editor |
Integral PLC editor for additional applications |
|
Compatibility |
Modern Tier 4 CAN engines |
