Key Specifications / Features
- Model no.: CGS-20250313-DGS-01
- Hits: 0
- Categories: Diesel Generator Sets
Detail Information

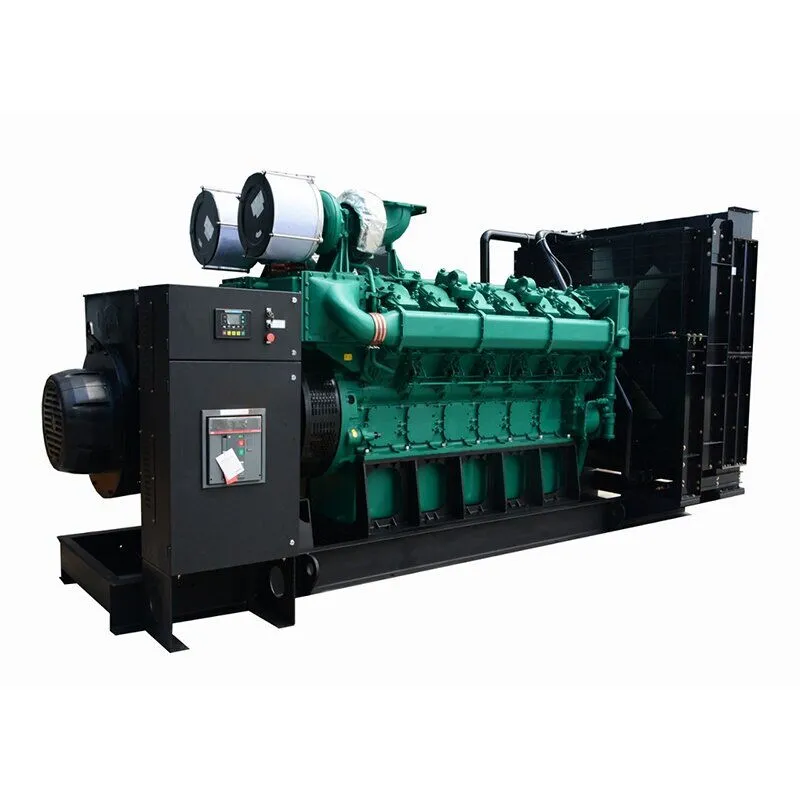

Product Name: Yuchai 1000kW Diesel Generator Set on Sale
Fuel: Diesel
Engine: Yuchai YC12VC1680L-D20
Alternator: Brushless Alternator
Cylinder Number: 12 Cylinders in Line
Power Factor: 0.8 Lagging
Rated Power: 1000kW, 1250kVA
Maximum Power: 1100kW, 1375kVA
Frequency: 50 Hz
Rated Voltage: 400/230 V
Rated Current: 1804.3 A
Fuel Tank Capacity: 700 Litres
Battery: Four x 150A Free Maintenance
Dimensions: 4950 x 1800 x 2300 mm
Weight: 11,850 kg
Engine Specifications
|
Engine Brand |
Yuchai |
|
Engine Model |
YC12VC1680L-D20 |
|
Number of Cylinders |
12 Cylinder V Type |
|
Aspiration |
Turbocharged & Aftercooled |
|
Governor Type |
Electric |
|
Engine Max. Output Power |
1230 kW |
|
Displacement |
79.170 L |
|
Starting Voltage |
24 V |
|
Bore |
200 mm |
|
Stroke |
210 mm |
|
Lubrication Oil Capacity |
280 L |
|
Compression Ratio |
13.5 : 1 |
|
Fuel Tank Capacity |
700 L |
|
Fuel Consumption at 100% Load |
263.1 L/H |
Brushless Alternator Specifications
|
Rated Output |
1250kVA |
|
Frequency |
50 Hz |
|
Rated Current |
1804 A |
|
Insulation Class |
Class H |
|
Voltage Regulation |
MX321 |
|
Protection Grade |
IP23 |
|
Working Altitude without Output Decrease |
≤1000 m |
|
Phase |
3 Phase |
|
Temperature Rise |
125°C |
|
Optional Alternator Brands |
Leroy Somer, Stamford , Marathon, Mecc Alte and Brushless Alternator |
Controller Specifications
|
Controller Brand |
Deepsea |
|
Controller Model |
DSE7320 |
|
Breaker Brand |
Delixi |
|
Breaker Capacity |
2000 A |
|
Battery Charger |
Smartgen Model BAC06A |
|
Emergency Stop Button |
Supplied |
|
Automatic Mains Failure (AMF) |
Supplied |
|
Fuel Level Monitoring |
Supplied |
|
Automatic Transfer Switch (ATS) |
Optional |
|
Mains Monitor |
Supplied with AMF Function |
|
Protection Functions (with Alarms and Shutdowns) |
Start-up fault (shutdown) High coolant temperature (alarm & shutdown) Low oil pressure (alarm & shutdown) Low fuel level (alarm) Low cooling fluid level (optional alarm) Overload (alarm & shutdown) Battery voltage high (alarm) |
|
Optional Controllers |
Deepsea, Smartgen, ComAp |
