Key Specifications / Features
- Model no.: CGS-20250318-DGS-03
- Hits: 0
- Categories: Diesel Generator Sets
Detail Information

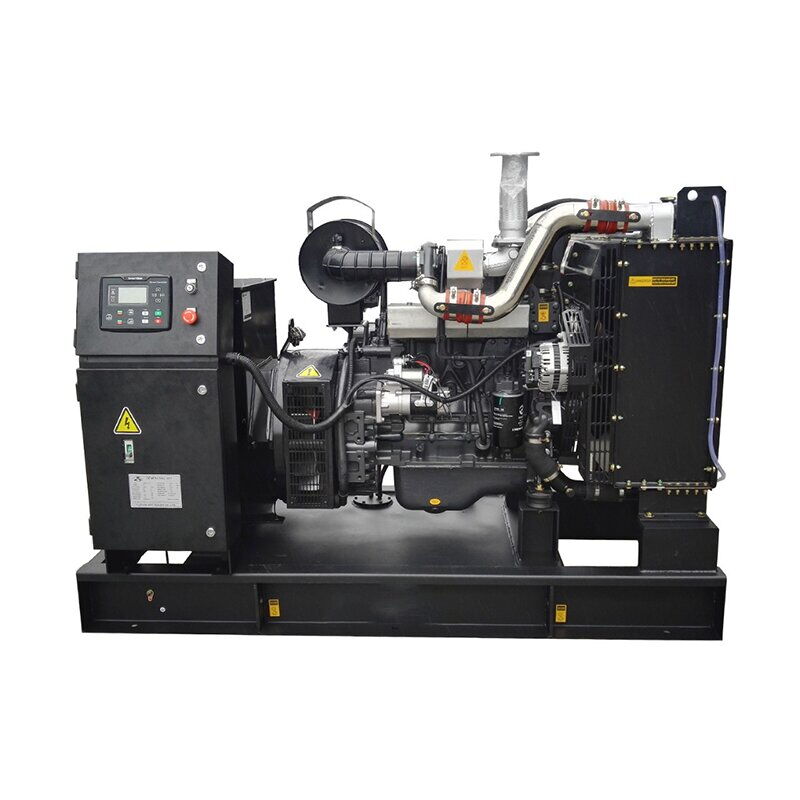

Product Name: 100kW SDEC Diesel Generator Set in Stock, Fast Delivery
Fuel Type: Diesel
Engine: SDEC 4HTAA4.3-G22
Alternator: Brushless Alternator
Rated Power: 100kW, 125kVA
Maximum Power: 110.4kW, 138kVA
Frequency: 50 Hz
Rated Voltage: 400/230 V
Rated Current: 180.4 A
Dimension (Open-Type): 2150 * 900 * 1420 mm
Weight (Open-Type): 1200 kg
Fuel Tank Capacity: 250 L
Battery: Two of 120 A Free Maintenance Battery
SDEC Diesel Engine Specifications
|
Manufacturer |
Shanghai Diesel Engine Co., Ltd. |
|
Brand |
SDEC |
|
Model |
4HTAA4.3-G22 |
|
Number of Cylinders |
4 (In-Line) |
|
Aspiration |
Turbocharged & Air-to-Air Aftercooled |
|
Governor Type |
Electric |
|
Max. Engine Output Power |
132 kW |
|
Rated Speed |
1500 RPM |
|
Displacement |
4.3 L |
|
Starting Voltage |
24 V |
|
Bore |
105 mm |
|
Stroke |
124 mm |
|
Lubrication Oil Capacity |
11–13 L |
|
Compression Ratio |
16:1 |
|
Fuel Consumption (100% Load) |
28.5 L/H |
Brushless Alternator Specifications
|
Rated Output |
100kW, 125kVA |
|
Frequency |
50 Hz |
|
Current |
180.4 A |
|
Insulation Class |
H |
|
Voltage Regulation |
SX440 (±0.5%) |
|
Protection Grade |
IP23 |
|
Altitude (without Output Reduction) |
≤1000 m |
|
Phase |
3-Phase |
|
Temperature Rise |
125°C |
|
Efficiency |
90.2% |
|
Optional Alternators |
Leroy Somer, Marathon, Mecc Alte |
Control Panel Specifications
|
Controller Brand |
ComAp |
|
Controller Model |
AMF9 |
|
Breaker Brand |
Delixi |
|
Breaker Capacity |
250 A |
|
Battery Charger |
Smartgen BAC06A |
|
Emergency Stop Button |
Yes |
|
Automatic Mains Fail (AMF) |
Yes |
|
Fuel Level Monitoring |
Yes |
|
Automatic Transfer Switch (ATS) |
Optional |
|
Mains Monitor |
Yes (AMF Function) |
|
Optional Controllers |
Deepsea, Smartgen, ComAp |
Control Panel Protection Features
|
Protection Feature |
Alarm & Shutdown |
|
Start-up Fault |
Yes |
|
High Coolant Temperature |
Yes |
|
Low Oil Pressure |
Yes |
|
Low Fuel Level |
Alarm Only |
|
Low Cooling Fluid Level (Optional) |
Alarm Only |
|
Overload |
Yes |
|
High Battery Voltage |
Alarm Only |
