Key Specifications / Features
- Model no.: CGS-20250318-DGS-04
- Hits: 0
- Categories: Diesel Generator Sets
Detail Information

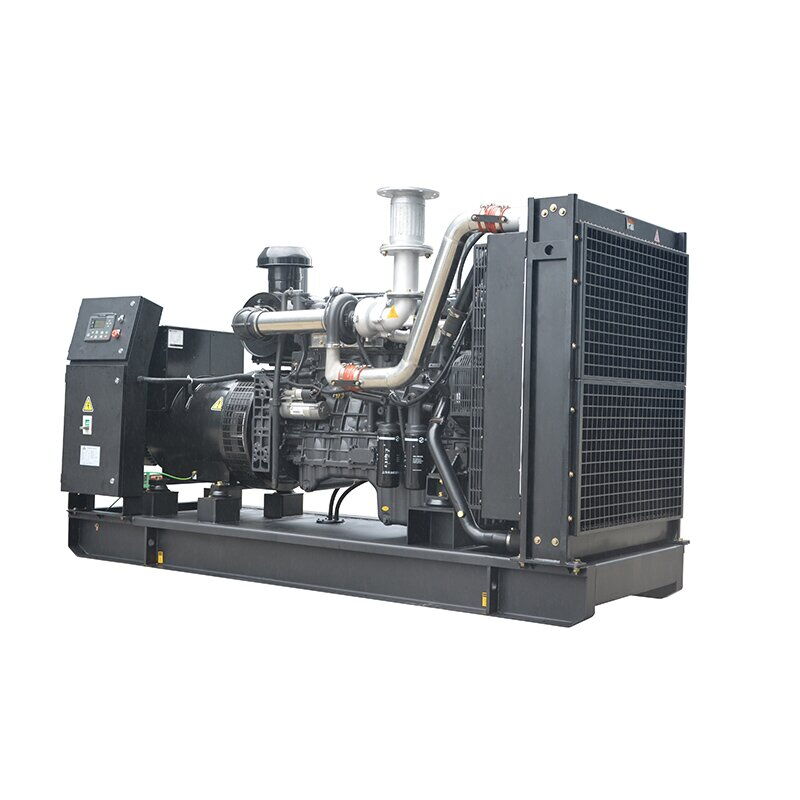

Product Name: 160kW Shangchai Diesel Generator Set, Negotiable
Fuel Type: Diesel
Engine: Shangchai SC13G280D2
Alternator: Brushless Alternator
Prime Power: 160kW, 200kVA
Standby Power: 176kW, 220kVA
Frequency: 50 Hz
Output Voltage: 400/230 V
Oil Consumption: 0.054 L/H
Dimension For Open-type: 2980 * 1350 * 1840 mm
Weight For Open-type: 2300 kg
Engine Specifications
|
Engine Manufacturer |
Shanghai Diesel Engine Co., Ltd. |
|
Engine Brand |
Shangchai |
|
Engine Model |
SC13G280D2 |
|
Number of Cylinders |
6 Cylinder in line |
|
Bore |
135 mm |
|
Stroke |
150 mm |
|
Displacement |
12.88 L |
|
Aspiration |
Turbocharged |
|
Rated Speed |
1500 RPM |
|
Governor |
Electric |
|
Lubrication Oil Capacity |
33 L |
|
Starting Voltage |
24 V |
|
Engine Max. Output Power |
206 kW |
Alternator Specifications
|
Rated Output |
200kVA |
|
Frequency |
50 Hz |
|
Altitude |
≤1000 m |
|
Insulation |
Class H |
|
Protection Grade |
IP23 |
|
Alternator Options |
Leroy Somer, Marathon, Mecc Alte, Chinese brand Brushless |
Control Panel Specifications
|
Controller |
Smartgen Brand Model HGM6110U |
|
Function of Control Panel |
Automatic genset start/stop |
|
Automatic battery charger |
|
|
Emergency stop |
|
|
AMF (Automatic Mains Fault) |
|
|
Remote control |
|
|
Micro-processor based design |
|
|
LED alarm indication and Sound alarm |
|
|
Display of the Controller |
Generator voltage: Uab, Ubc, Uca |
|
Generator current: Ua, Ub, Uc |
|
|
Generator temperature: °C/°F (both display) |
|
|
Generator frequency: Hz |
|
|
Generator power: kW, kVA, kWh, kVAr, kVArh, kVAh |
|
|
Generator starts count: 999999 times (Max) |
|
|
Generator pressure: kPa/Psi/Bar (both display) |
|
|
Charging Voltage: V |
|
|
Battery Voltage: V DC |
