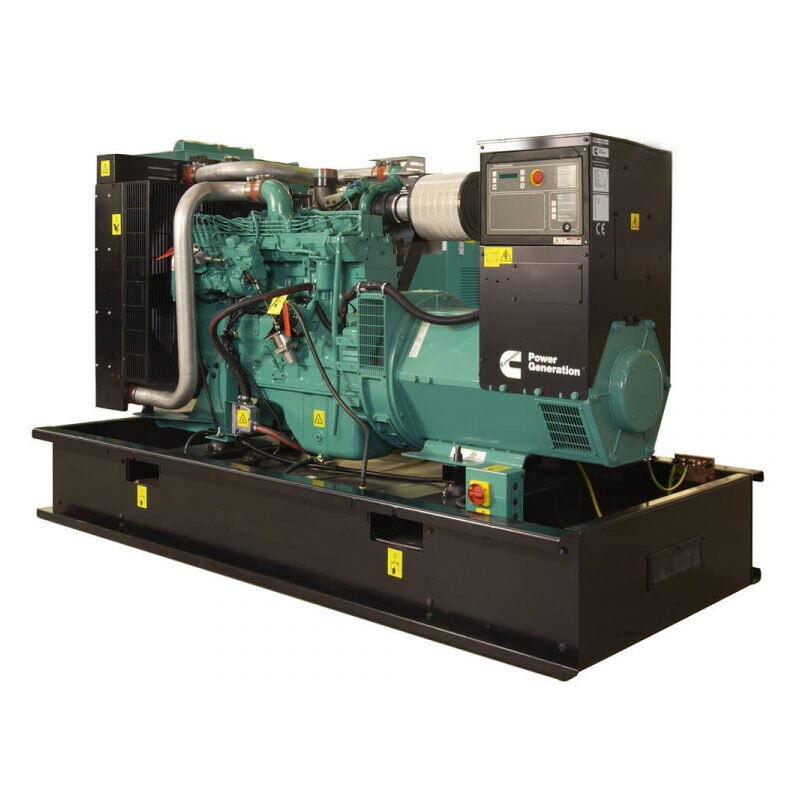

182kW Diesel Generator Set, Cummins 6CTAA8.3-G2, 60 Hz, 240V
Key Specifications / Features
- Model No.: CGS-20250319-DGS-01
- Hits: 7
- Categories: Diesel Generator Sets
Detail Information
Product Name: 182kW Cummins Diesel Generator Set, Fast Delivery
Fuel Type: Diesel
Engine: Cummins 6CTAA8.3-G2
Alternator: Leroy Somer TAL-A46-A
Prime Power: 182kW, 228kVA
Standby Power: 200kW, 250kVA
Frequency: 60 Hz
Output Voltage: 240 V
Rated Current: 325.8 A
Oil Consumption: 0.15 L/h
Dimension: 2450 * 1050 * 1650 mm
Weight: 1600 kg
Engine Specifications
Engine Brand | Cummins |
Engine Model | 6CTAA8.3-G2 |
No. of Cylinders | 6 Cylinder In-line |
Bore | 114 mm |
Stroke | 135 mm |
Displacement | 8.3 L |
Cooling Fan Air Flow | 240 m³/min |
Compressed Air Flow | 16.8 m³/min |
Exhaust Gas Flow | 32.58 m³/min |
Exhaust Gas Temperature | 640 °C |
Lubrication Oil Capacity | 20 L |
Cooling Water Capacity | 31 L |
Starting Voltage | 24 V |
Engine Max. Output Power | 209kW |
Alternator Specifications
Alternator Brand | Leroy Somer |
Alternator Model | TAL-A46-A |
Rated Output | 231 kVA |
Frequency | 60 Hz |
Altitude | ≤1000 m |
Insulation Class | H |
Protection Grade | IP23 |
Alternator Options | Leroy Somer, Marathon, Mecc Alte, Chinese Brushless Alternators |
Control Panel Functions (Deepsea DSE7320)
- Control Panel Functions
- Automatic genset start/stop
- Automatic battery charger
- Emergency stop
- AMF (Automatic Mains Failure)
- Remote control
- Microprocessor-based design
- LED & Sound Alarms
Diesel Generator Protections
- Over/Under Speed Alarm & Shutdown
- Start/Stop Failure Alarm
- Over Current Alarm & Shutdown
- Under/Over Voltage Alarm & Shutdown
- Low Oil Pressure Alarm & Shutdown
- High Engine Temperature Alarm & Shutdown
- Overload Alarm & Shutdown
- Low/High Battery Voltage Alarm
- Loss of Speed Signal Alarm & Shutdown
- Charge Fail Alarm
